We are happy to announce the latest update to our FREE Compuware/dynaTrace AJAX Edition which now also supports Firefox 3.6 until version 25 and also Internet Explorer 6 through 10 + Experimental IE11 Support. Download it for free from our AJAX Edition Download page.
To show new users the capabilities of this free tool we want to keep the tradition of analyzing some websites to show the ease of use and usefulness of the tool. As it is online shopping season I picked a couple of web shops and highlight the key optimization tips that the Performance Report provides.
Optimization #1: Spriting of 100 Flag Images – Reduce Roundtrips by 99%
Lots of shopping sites are international and prompt the user to confirm the country that they detected based on the current geo-location. Here is one candidate that provides a region selection dialog listing the names of countries grouped by continent – preselecting the one they think I come from.

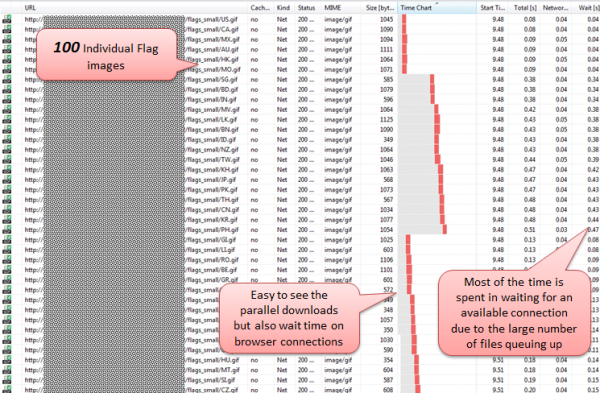

The following screenshot is from the Network View that shows that they download 100 national flags as individual images. The best practice here is to merge them into a Sprite which reduces the roundtrips by 99%:
Optimization #3: “Overloaded” Pages and Non Optimized Resources
Many websites are overloaded with too much information that is not important for the end user. Then they also add lots of 3rd party content which may or may not be important to end users as well, e.g: Facebook like buttons.
The following case shows slow page load impacted by two major factors:
- Latency and Bandwidth: I downloaded the page from Europe whereas the website is probably hosted in the US
- Content Size: the HTML for a single product page is 150kb. Not that huge – but – a majority of that content was HTML Comments and not content important for the end user

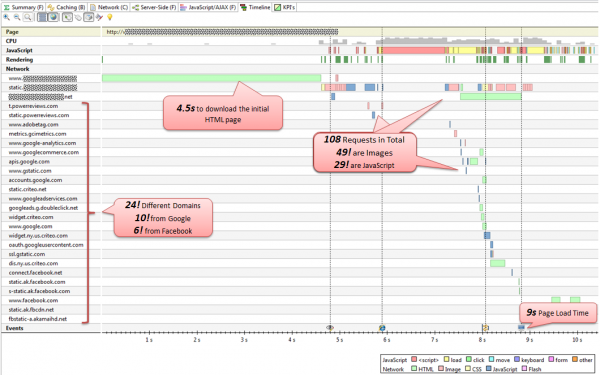

The first screenshot shows the dynaTrace AJAX Edition Timeline View representation. It shows the extra-long download of the initial HTML response:
My geo location definitely had a major impact on this. Interesting enough the content from the 3rd party domains delivered their content much faster – probably because they (Google, Facebook & Co) use CDNs that delivers content from European servers.
Optimization #4: Slow running server-side requests

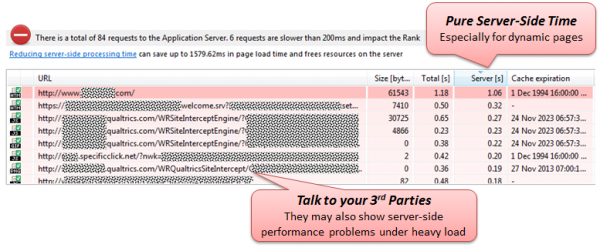

The AJAX Edition highlights these on the Server-Side tab of the Performance Report. It lists the slowest resources based on pure server-side time. Typically you see requests to your own application servers – but – it can also be that 3rd party content shows high server-side time. In this case pick up the phone and call them to figure out how that can be optimized:
Engage with the AJAX Edition Community
If you have any questions on the new AJAX Edition please use the forums available on our Community Portal. If you want to share your own analysis results leave a note on the forum as well and we can work on a joint blog post.
The Compuware/dynaTrace AJAX Edition Team wishes you Happy Holidays and a Good Start into 2014!
