Eclipse Jetty

Eclipse Jetty

Automatically and intelligently monitor and analyze your Jetty applications.

Extension

Product information
Release notes

Overview

With Dynatrace, you can get observability for all applications and microservices deployed in your Jetty web server, including automatic end-to-end tracing, metrics and log insights. Dynatrace deep code level insights will give you CPU profiling insights including method hotspots, insights into calls to databases, error/exception analysis, and much more. Comprehensive out-of-the-box metrics will give you insights into memory allocation, garbage collection, and thread behavior.

Use cases

Automatic baselining and problem detection for your apps and their user actions and requests.
Intelligent and actionable root cause detection in case of service problems.
Understand the impact of remote services such as databases and queues.
See logs in context of your traces and workloads.
Always-on, 24/7, production-grade CPU and memory profiling
Deep code-level visibility to troubleshoot issues down to a single line of code.

Get started

If your Jetty runs on a virtual machine or bare-metal, install OneAgent on it to get started.

If your Jetty runs as a workload in Kubernetes or OpenShift, set up Dynatrace on Kubernetes or OpenShift.

Activate the OneAgent features to get tracing insight:

Java Servlet 5.0

Activate the Jetty JMX extension to get metric insight by clicking on Add to environment and setting up a configuration.

Activate log monitoring to get log insight.

Extension

The Jetty JMX server monitoring extension in Dynatrace provides information about your Jetty application, including insights into connections, requests and threads. These metrics will help you find and understand the root cause of any issues or problems with your Jetty application.

This is a JMX (Java Management Extension) Dynatrace extension. JMX is ideal for monitoring applications built using Java. Make sure you are monitoring your Jetty process.

Click on Add to environment to get started.

Prerequisites

Jetty application with the OneAgent installed on version 1.273+
Windows or Linux

Output

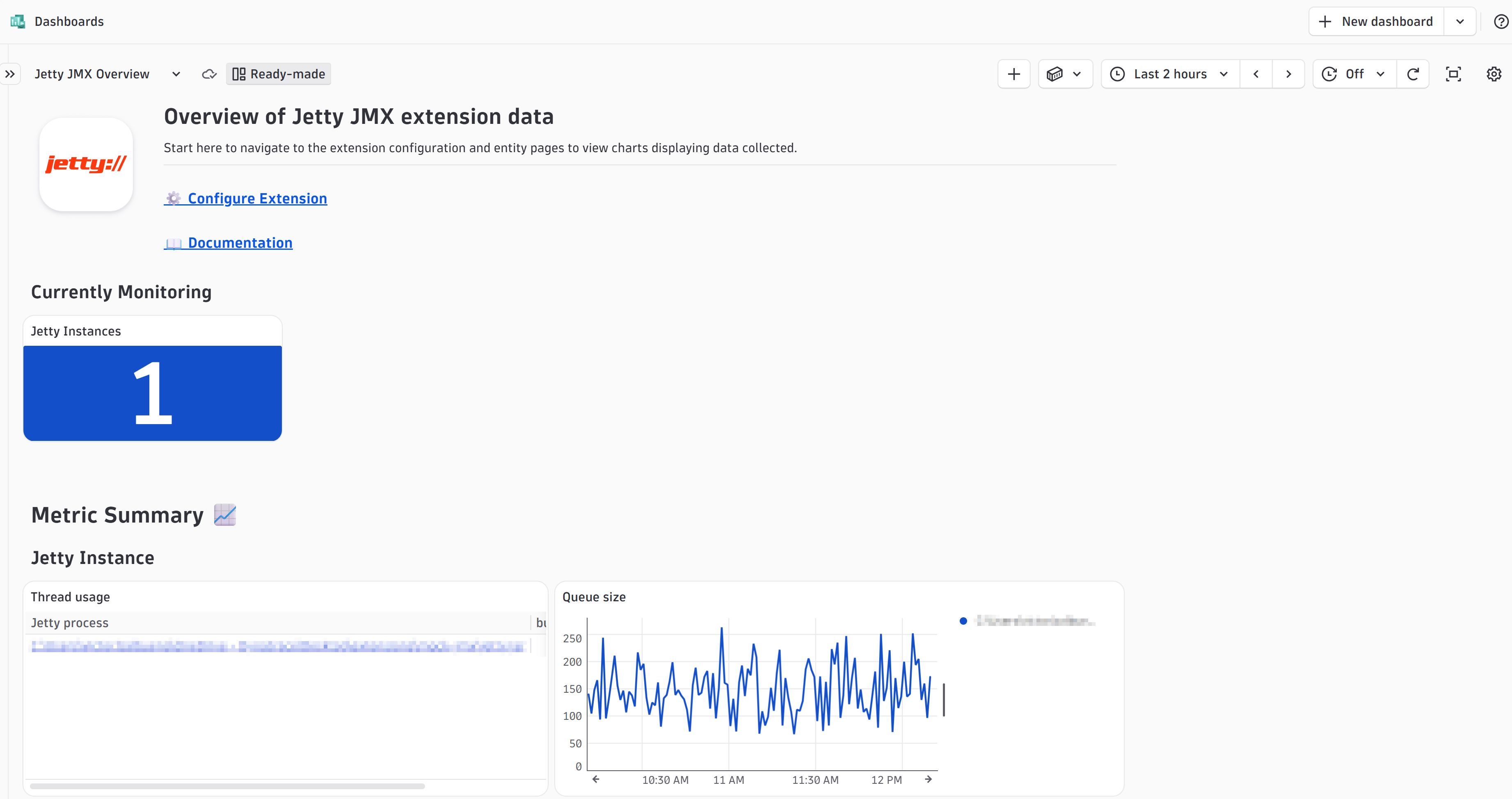

The dashboard Jetty JMX Overview will be included in the extension, where you can see an overview of your Jetty JMX metrics.

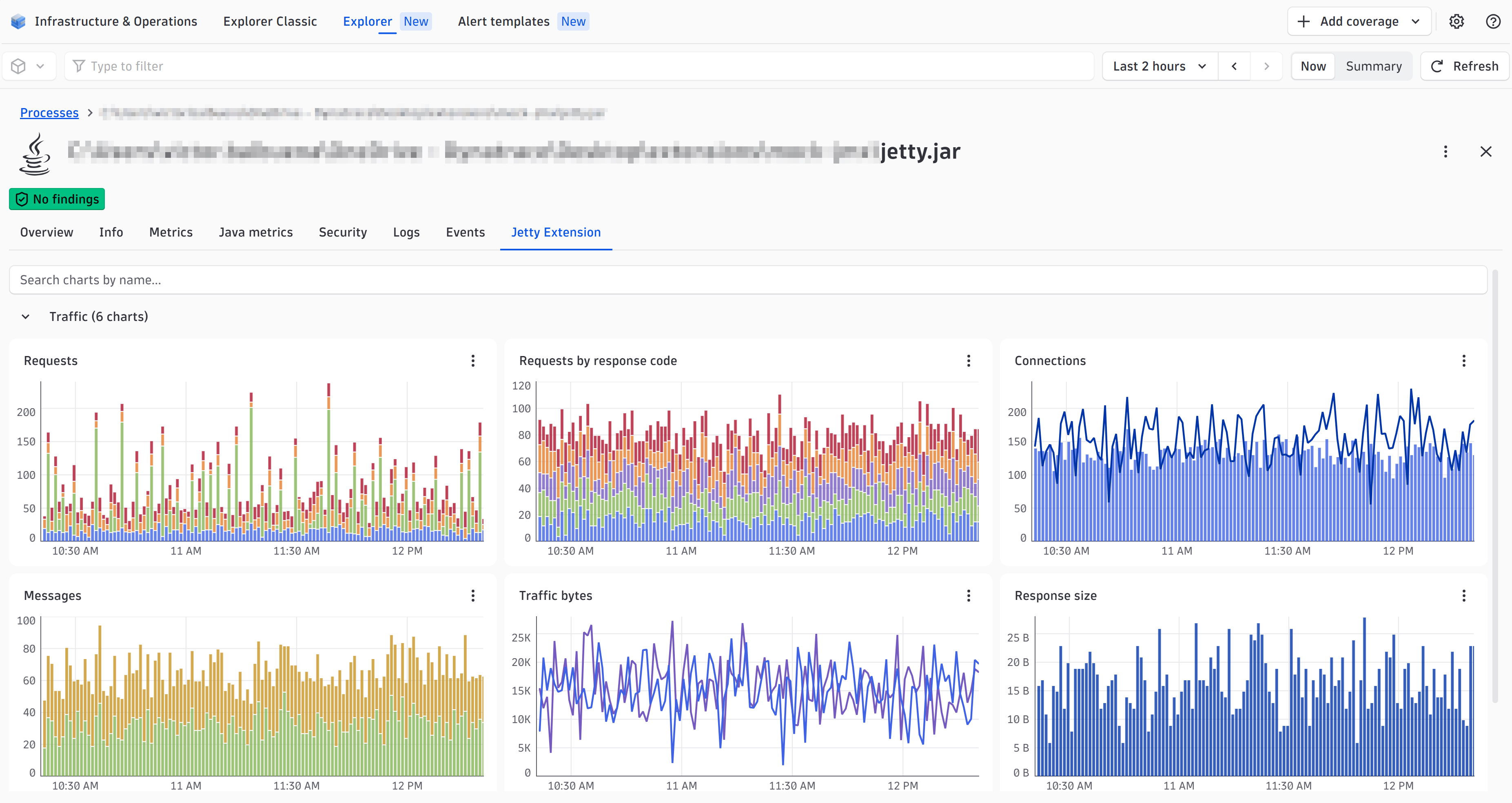

Additionally, all metrics captured by the extension will be appended to the process group instance's unified analysis screen in three new sections: threads, time usage and traffic. Make sure to be on the new screen for process group instances to see them by clicking on Metrics and logs analysis on the process view.

All metrics can also be viewed with the data explorer.

Licensing Consumption

The extension consumes DDUs. However, they are elgible for the free tier included with every host. The amount of DDUs depends on the number of instances monitored.

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

screen metric tables

1

dashboards

1

screen chart groups

3

metric metadata

28

metric query

4

screen injections

4

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Jetty leased threads	jetty.leasedThreads	-	Count
Jetty ready threads	jetty.readyThreads	-	Count
Jetty reserved threads	jetty.reservedThreads	-	Count

Metric name	Metric key	Description	Unit
Jetty total response bytes	jetty.responsesBytesTotal.count	-	Byte
Jetty bytes read	jetty.bytesRead	-	Bytes
Jetty bytes written	jetty.bytesWritten	-	Bytes

Metric name	Metric key	Description	Unit
Jetty messages in	jetty.messagesIn.count	-	Count
Jetty messages out	jetty.messagesOut.count	-	Count

Metric name	Metric key	Description	Unit
Jetty busy threads	jetty.busyThreads	-	Count
Jetty idle threads	jetty.idleThreads	-	Count

Metric name	Metric key	Description	Unit
Jetty 1xx responses	jetty.response1xx.count	-	Count
Jetty 2xx responses	jetty.response2xx.count	-	Count
Jetty 3xx responses	jetty.response3xx.count	-	Count
Jetty 4xx responses	jetty.response4xx.count	-	Count
Jetty 5xx responses	jetty.response5xx.count	-	Count

Metric name	Metric key	Description	Unit
Jetty new connections	jetty.connections.count	-	Count
Jetty open connections	jetty.connectionsOpen	-	Count

Metric name	Metric key	Description	Unit
Jetty request queue size	jetty.queueSize	-	Count
Jetty request count	jetty.requestCount.count	-	Count
Jetty request failures	jetty.failures.count	-	Count
Jetty request errors	jetty.errors.count	-	Count
Jetty active request count	jetty.requestsActive.count	-	Count

Metric name	Metric key	Description	Unit
Jetty total request time	jetty.requestTime.count	-	Second
Jetty total handle time	jetty.handleTime.count	-	Second

Customer story U-HAUL

“Dynatrace allows us to look deep into areas where specific monitoring tools played before, and now we’re getting value – we’re able to take action on alerts and be more proactive.”

Mike Shanko

Head of Infrastructure and Infrastructure Security

See their story

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

Conversion from EF1.0 to EF2.0 with JMX data source
Added graphs injected into the unified analysis screens of both the process and the host
Added extension overview dashboard
Added feature sets to control which metrics to ingest
Added new metrics:
- jetty.readyThreads
- jetty.reservedThreads
- func:jetty.totalThreads
- jetty.requestsActive.count
- jetty.failures.count
- jetty.errors.count
- jetty.messagesIn.count
- jetty.messagesOut.count
- jetty.requestTime.count
- jetty.handleTime.count
- jetty.bytesRead
- jetty.bytesWritten
- jetty.response1xx.count
- jetty.response2xx.count
- jetty.response3xx.count
- jetty.response4xx.count
- jetty.response5xx.count
