Cisco NexusCisco Nexus
Cisco Nexus

Cisco Nexus

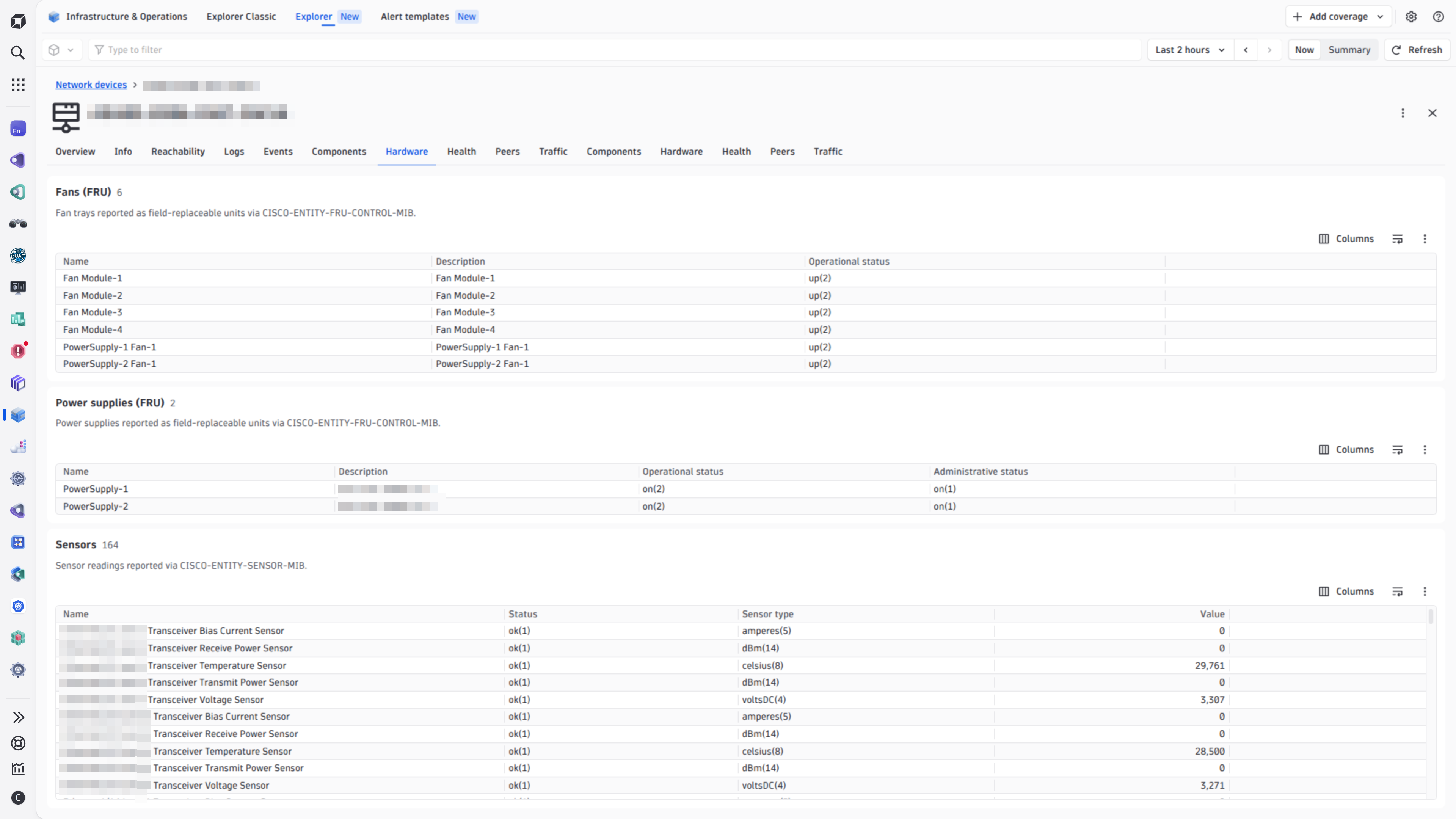

Monitor Cisco Nexus devices with SNMP to feed Dynatrace with metrics and alerts.

Extension
Free trialDocumentation

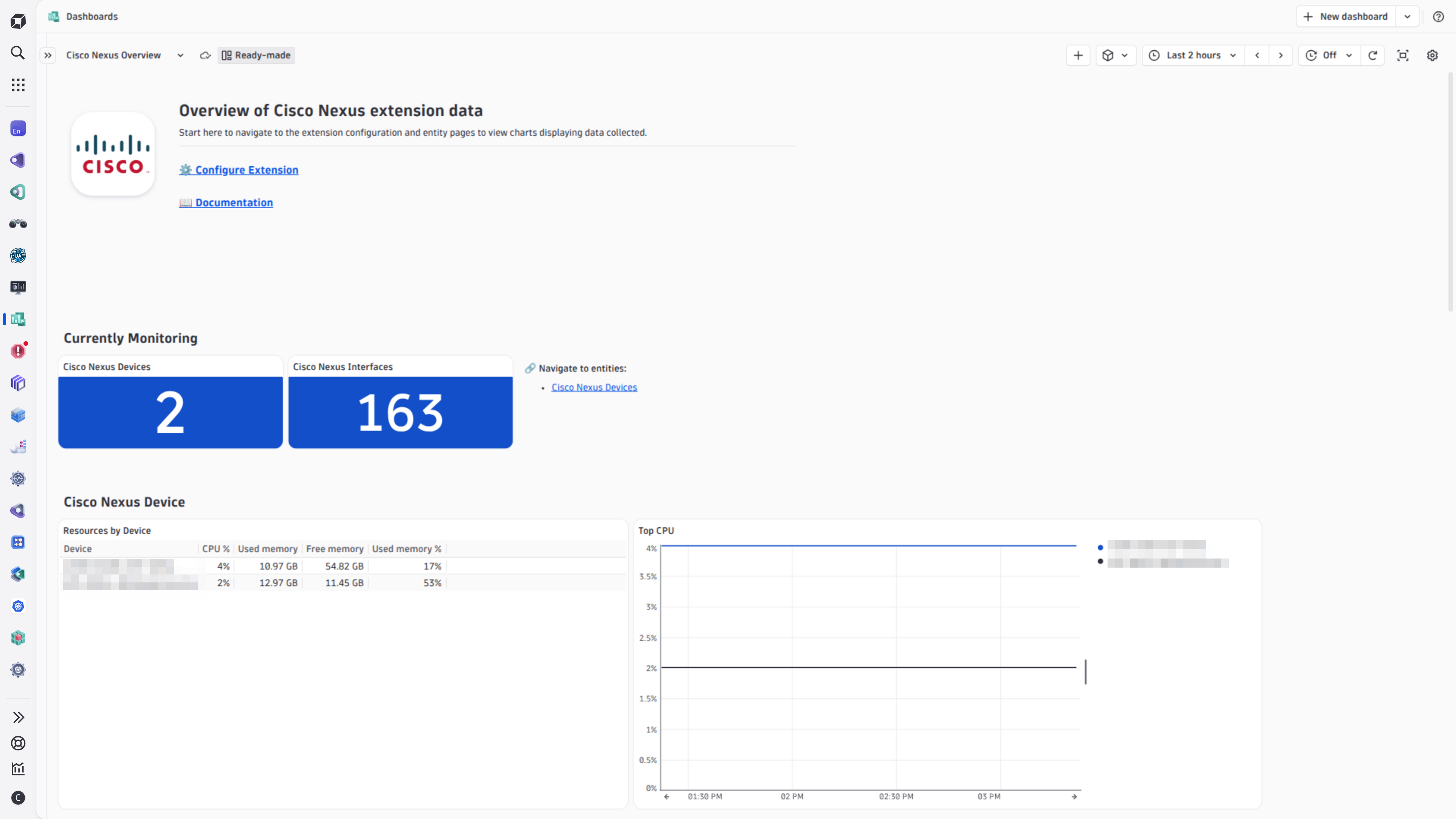

Get a high level overview of your monitored Cisco Nexus devices with the included dashboard.Monitor Cisco Nexus device health and performance with pre-built charts for all of your relevant metrics.
  • Product information
  • Release notes

Overview

Cisco Nexus devices are a critical component in your network infrastructure. The Generic Cisco Device monitoring extension allows for remote monitoring of your Cisco Nexus devices via the Simple Network Management Protocol (SNMP).

Use cases

  • Monitor resource usage of network components
  • Detect and alert on issues with critical protocols such as BGP
  • Identify problems with network interfaces

Get started

For more information on the installation and configuration, please see The 'Documentation' link in the Resources section of this page.

Details

Compatibility information

This extension is designed to monitor a variety of Cisco Nexus devices. Only Nexus products still supported by Cisco will be officially supported.

Dynatrace
DocumentationMore Information
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.sysuptime--
-com.dynatrace.extension.network_device.cpu_usage--
-com.dynatrace.extension.network_device.memory_used--
-com.dynatrace.extension.network_device.memory_free--
-com.dynatrace.extension.network_device.if.status--
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.in.multicast_pkts.count--
-com.dynatrace.extension.network_device.if.out.multicast_pkts.count--
-com.dynatrace.extension.network_device.if.in.broadcast_pkts.count--
-com.dynatrace.extension.network_device.if.out.broadcast_pkts.count--
-com.dynatrace.extension.network_device.if.in.ucast_pkts.count--
-com.dynatrace.extension.network_device.if.out.ucast_pkts.count--
-com.dynatrace.extension.network_device.if.in.crc_errors.count--
Metric nameMetric keyDescriptionUnit
Device entity attributessnmp.cisco.nexus.entity_attributesConstant value of 1 used for reporting entity attributes at a lower frequencyUnspecified
Metric nameMetric keyDescriptionUnit
Cisco BGP peer established timesnmp.cisco.nexus.cbgp.established_timeThis timer indicates how long (in seconds) this peer has been in the established state or how long since this peer was last in the established state.Second
Cisco BGP updates receivedsnmp.cisco.nexus.cbgp.updates_received_countThe number of BGP UPDATE messages received on the connection with the peer.Count
Cisco BGP updates sentsnmp.cisco.nexus.cbgp.updates_sent_countThe number of BGP UPDATE messages sent on the connection with the peer.Count
Cisco BGP peer statesnmp.cisco.nexus.cbgp.peer.stateThe BGP peer connection state.State
Cisco BGP peer admin statussnmp.cisco.nexus.cbgp.peer.admin.statusThe desired state of the BGP connection. stop(1), start(2). CISCO-BGP4-MIB.State
Metric nameMetric keyDescriptionUnit
Memory pool used (64 bit)snmp.cisco.nexus.enhanced.memory_pool.usedThe number of bytes from the enhanced memory pool that are currently in use.Byte
Memory pool free (64 bit)snmp.cisco.nexus.enhanced.memory_pool.freeThe number of bytes from the enhanced memory pool that are currently unused.Byte
Metric nameMetric keyDescriptionUnit
TCP active openssnmp.cisco.nexus.tcp.activeopens.countNumber of transitions of TCP connections from CLOSED to SYN-SENTCount
TCP passive openssnmp.cisco.nexus.tcp.passiveopens.countNumber of transitions of TCP connections from CLOSED to SYN-RCVDCount
TCP failed attemptssnmp.cisco.nexus.tcp.attemptfails.countNumber of transitions of TCP connections from SYN-SENT/SYN-RCVD to CLOSED and from SYN-RCVD to LISTENCount
TCP resetssnmp.cisco.nexus.tcp.estab.resets.countNumber of transitions of TCP connections from ESTABLISHED/CLOSE-WAIT to CLOSEDCount
TCP connectionssnmp.cisco.nexus.tcp.curr.estabNumber of TCP connections in the ESTABLISHED/CLOSE-WAIT stateCount
TCP segments receivedsnmp.cisco.nexus.tcp.hc.in.segs.countTotal number of segments received (including errors)Count
TCP segments sentsnmp.cisco.nexus.tcp.hc.out.segs.countTotal number of segments sent (excluding retransmissions)Count
TCP segments retransmittedsnmp.cisco.nexus.tcp.retrans.segs.countTotal number of segments retransmittedCount
TCP segment errorssnmp.cisco.nexus.tcp.in.errs.countTotal number of segments received in errorCount
TCP segment resetssnmp.cisco.nexus.tcp.out.rsts.countNumber of TCP segments sent containing the RST flagCount
UDP datagrams deliveredsnmp.cisco.nexus.udp.hc.in.datagrams.countTotal number of UDP datagrams deliveredCount
UDP datagrams received without portsnmp.cisco.nexus.udp.noports.countNumber of received UDP datagrams (no application at the destination port)Count
UDP datagram errorssnmp.cisco.nexus.udp.in.errors.countNumber of received and not delivered UDP datagrams (other than no application at the destination port)Count
UDP datagrams sentsnmp.cisco.nexus.udp.hc.out.datagrams.countTotal number of UDP datagrams sentCount
Metric nameMetric keyDescriptionUnit
Messages deliveredsnmp.cisco.nexus.snmp.in.pkts.countTotal number of messages delivered from the transport serviceCount
Silently dropped PDUssnmp.cisco.nexus.snmp.silentdrops.countNumber of silently dropped PDUs due to the large reply sizeCount
Unsupported SNMP version messagessnmp.cisco.nexus.snmp.in.bad.versions.countTotal number of messages delivered with an unsupported SNMP versionCount
Messages with bad community namessnmp.cisco.nexus.snmp.in.bad.community.names.countNumber of messages with an unknown SNMP communityCount
Messages not allowed in communitysnmp.cisco.nexus.snmp.in.bad.community.uses.countNumber of messages not allowed for the used SNMP communityCount
'noSuchName' errorssnmp.cisco.nexus.snmp.in.nosuchnames.countNumber of PDUs delivered with 'noSuchName' errorCount
'badValue' errorssnmp.cisco.nexus.snmp.in.bad.values.countNumber of PDUs delivered with 'badValue' errorCount
Metric nameMetric keyDescriptionUnit
Power supply statesnmp.cisco.nexus.power_supply.stateA state metric representing the details of power supplies on the device. Value is always 1; use the dimensions to understand the status.NotApplicable
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.bytes_in.count--
-com.dynatrace.extension.network_device.if.bytes_out.count--
-com.dynatrace.extension.network_device.if.in.errors.count--
-com.dynatrace.extension.network_device.if.in.discards.count--
-com.dynatrace.extension.network_device.if.out.errors.count--
-com.dynatrace.extension.network_device.if.out.discards.count--
-com.dynatrace.extension.network_device.if.lastchange--
-com.dynatrace.extension.network_device.if.speed--
Metric nameMetric keyDescriptionUnit
Sensor valuesnmp.cisco.nexus.sensor.valueThe value of sensors as reported in the Cisco entity sensor MIB. The type/unit of the value (e.g. rpm, hertz, celcius) depends on the type of sensor (sensor.type dimension). The sensor.status dimension reports the operational status of the sensor.Unspecified
Metric nameMetric keyDescriptionUnit
Fan statesnmp.cisco.nexus.envmon.fan.stateCurrent state of the fan instrumentedUnspecified
Fan temperaturesnmp.cisco.nexus.envmon.temperature.status.valueCurrent temperature of the fan instrumentedUnspecified
Metric nameMetric keyDescriptionUnit
EIGRP peer smooth round trip timesnmp.cisco.nexus.eigrp.peer.srttThe computed smooth round trip time for packets to and from the peer (milliseconds). CISCO-EIGRP-MIB.MilliSecond
Metric nameMetric keyDescriptionUnit
IS-IS Infosnmp.cisco.nexus.layer3.infoUsed to get IS-IS InfoCount
Metric nameMetric keyDescriptionUnit
Module - operational statussnmp.cisco.nexus.module.oper_statusOperational state of the module. cefcModuleOperStatus; ok(2) is healthy. CISCO-ENTITY-FRU-CONTROL-MIB.State
Module - time since last restartsnmp.cisco.nexus.module.uptimeSeconds since the module was last re-initialized. Resets to zero on module reset or power-off. cefcModuleUpTime. CISCO-ENTITY-FRU-CONTROL-MIB.Second
Metric nameMetric keyDescriptionUnit
VDC - statussnmp.cisco.nexus.vdc_statusA state metric representing a VDC, whose value is always 1 and its dimensions indicate its state details.State
Metric nameMetric keyDescriptionUnit
BGP peer connection statesnmp.cisco.nexus.bgp4.peer.stateThe BGP peer connection state. idle(1), connect(2), active(3), opensent(4), openconfirm(5), established(6). BGP4-MIB.State
BGP peer admin statussnmp.cisco.nexus.bgp4.peer.admin.statusThe desired state of the BGP connection. stop(1), start(2). BGP4-MIB.State
BGP peer established timesnmp.cisco.nexus.bgp4.established_timeThis timer indicates how long (in seconds) this peer has been in the established state or how long since this peer was last in the established state.Second
Metric nameMetric keyDescriptionUnit
VLAN - statussnmp.cisco.nexus.vlan.statusA state metric representing a VLAN, whose value is always 1 and its dimensions indicate its state details.State
Metric nameMetric keyDescriptionUnit
FRU power operational statussnmp.cisco.nexus.fru.power_oper_statusThe FRU power operational statusState
FRU fan tray operational statussnmp.cisco.nexus.fru.fan_tray_oper_statusThe operational state of the fan or fan trayState
Metric nameMetric keyDescriptionUnit
OSPF neighbor statesnmp.cisco.nexus.ospf.nbr.stateThe state of the relationship with this neighbor. down (1), attempt (2), init (3), twoWay (4), exchangeStart (5), exchange (6), loading (7), full (8). OSPF-MIB.Count
Metric nameMetric keyDescriptionUnit
QoS - statussnmp.cisco.nexus.cbQos_statusA state metric representing QoS for interfaces, whose value is always 1 and its dimensions indicate its state details.State
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.speed--
Metric nameMetric keyDescriptionUnit
Active supervisor CPU utilizationsnmp.cisco.nexus.ha.active_supervisor.cpu_utilizationThe average utilization of CPU on the active supervisor.Percent
Active supervisor memory utilizationsnmp.cisco.nexus.ha.active_supervisor.memory_utilizationThe average utilization of memory on the active supervisor.Percent
Synchronization statesnmp.cisco.nexus.ha.synchronization.enabledThe state of the auto synchronization of images between the active and standby supervisor.State
Auto synchronization statussnmp.cisco.nexus.ha.synchronization.stateThe status of the current auto synchronization process, or if no such process is in progress, then the state of the most recent one.State

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

Fixed in this version:

  • Improvements to ready-made New Dashboard.

Full version history

Requires Dynatrace version 1.345.0 and EEC (ActiveGate) version 1.339.0.

  • Initial release of the extension.
