Forcepoint

Monitor your forcepoint appliances and their usage

Extension

Product information
Release notes

Overview

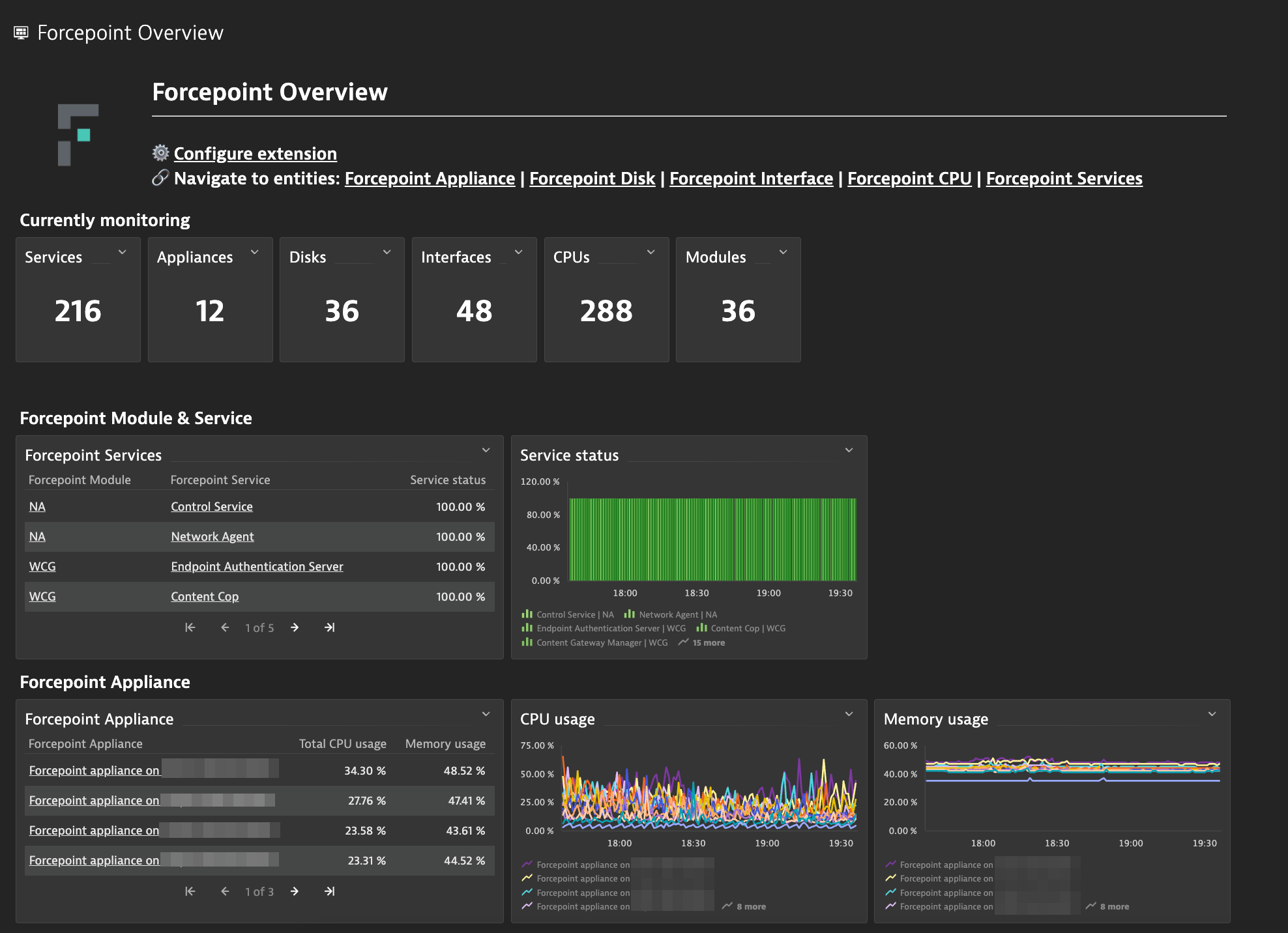

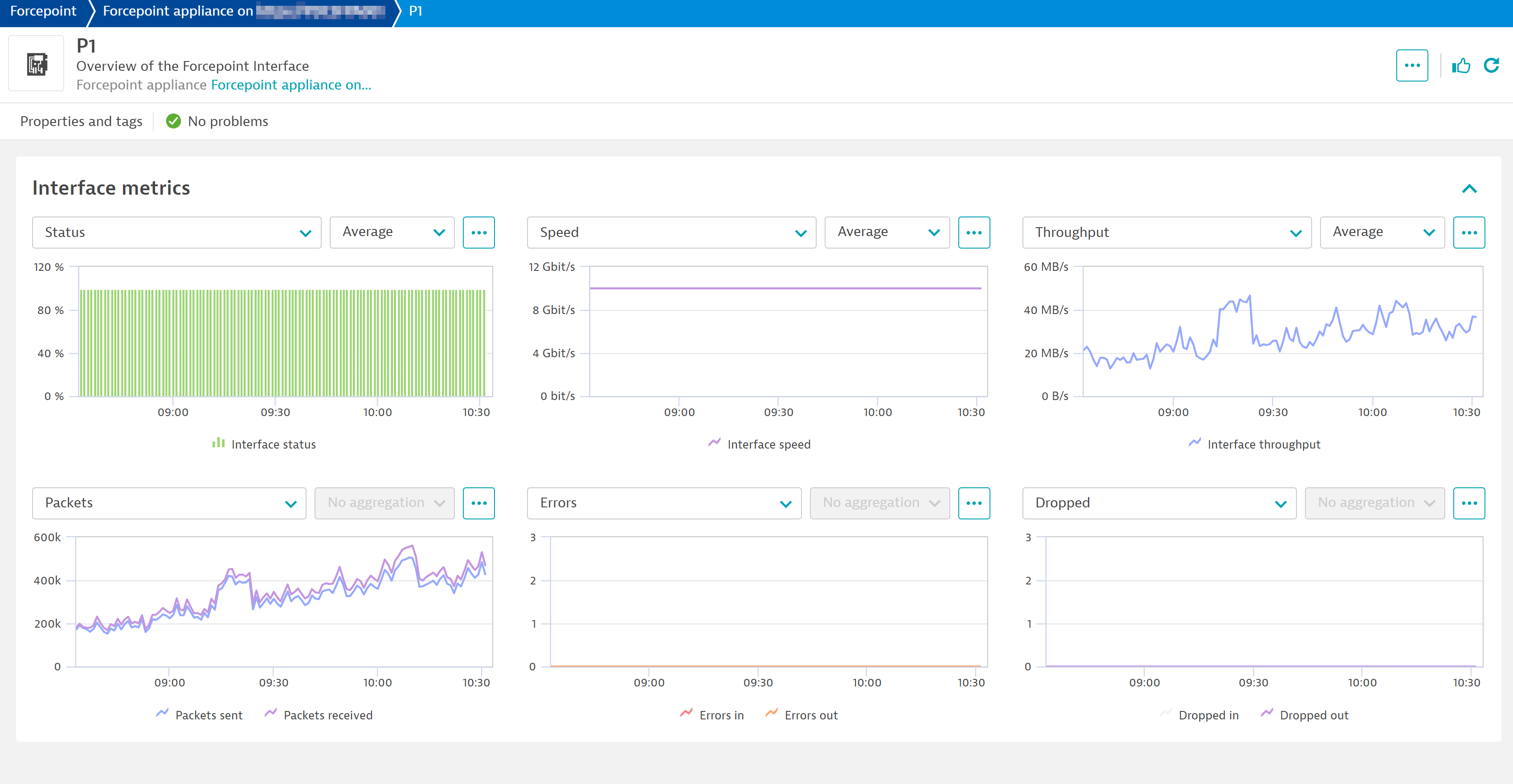

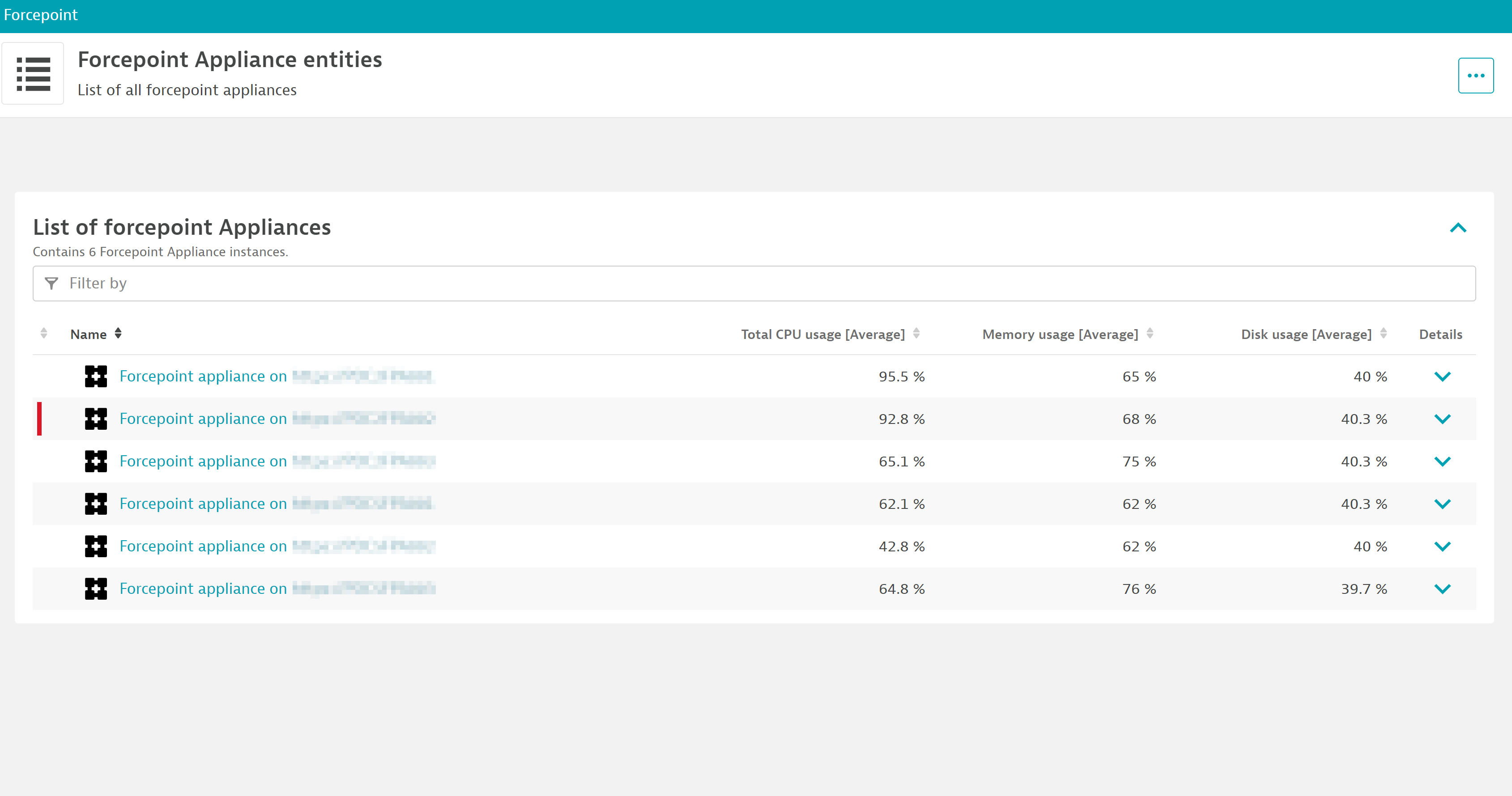

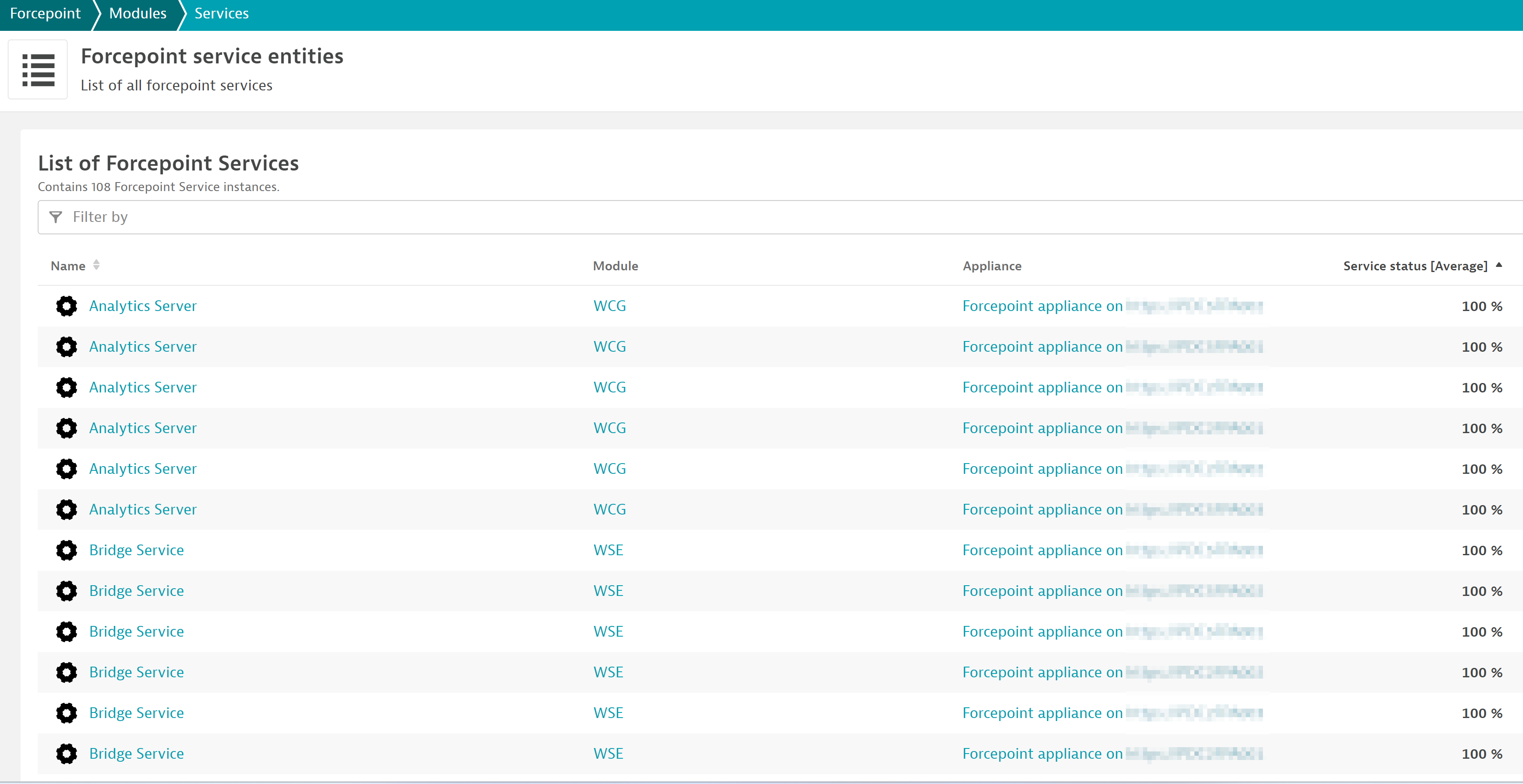

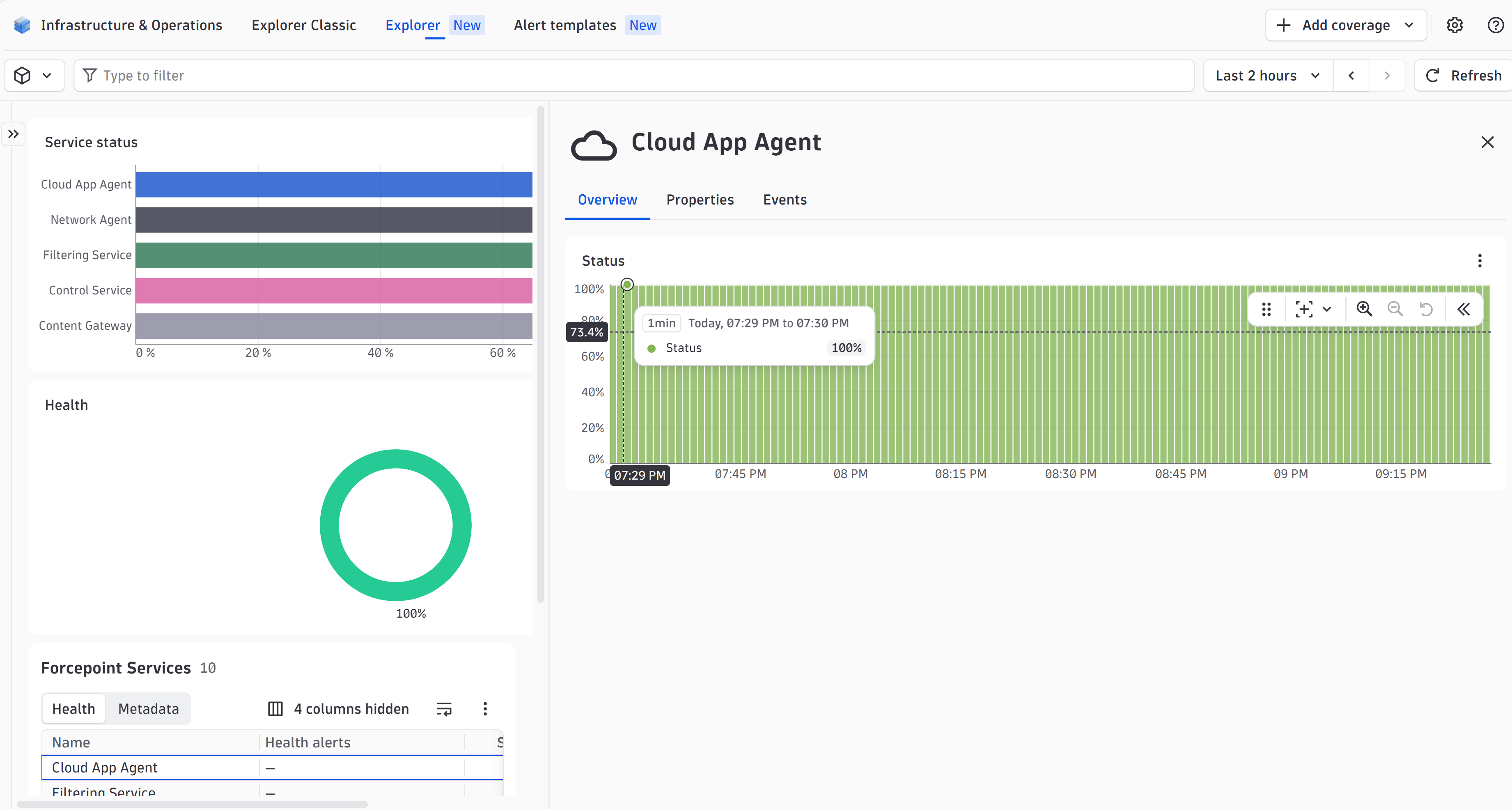

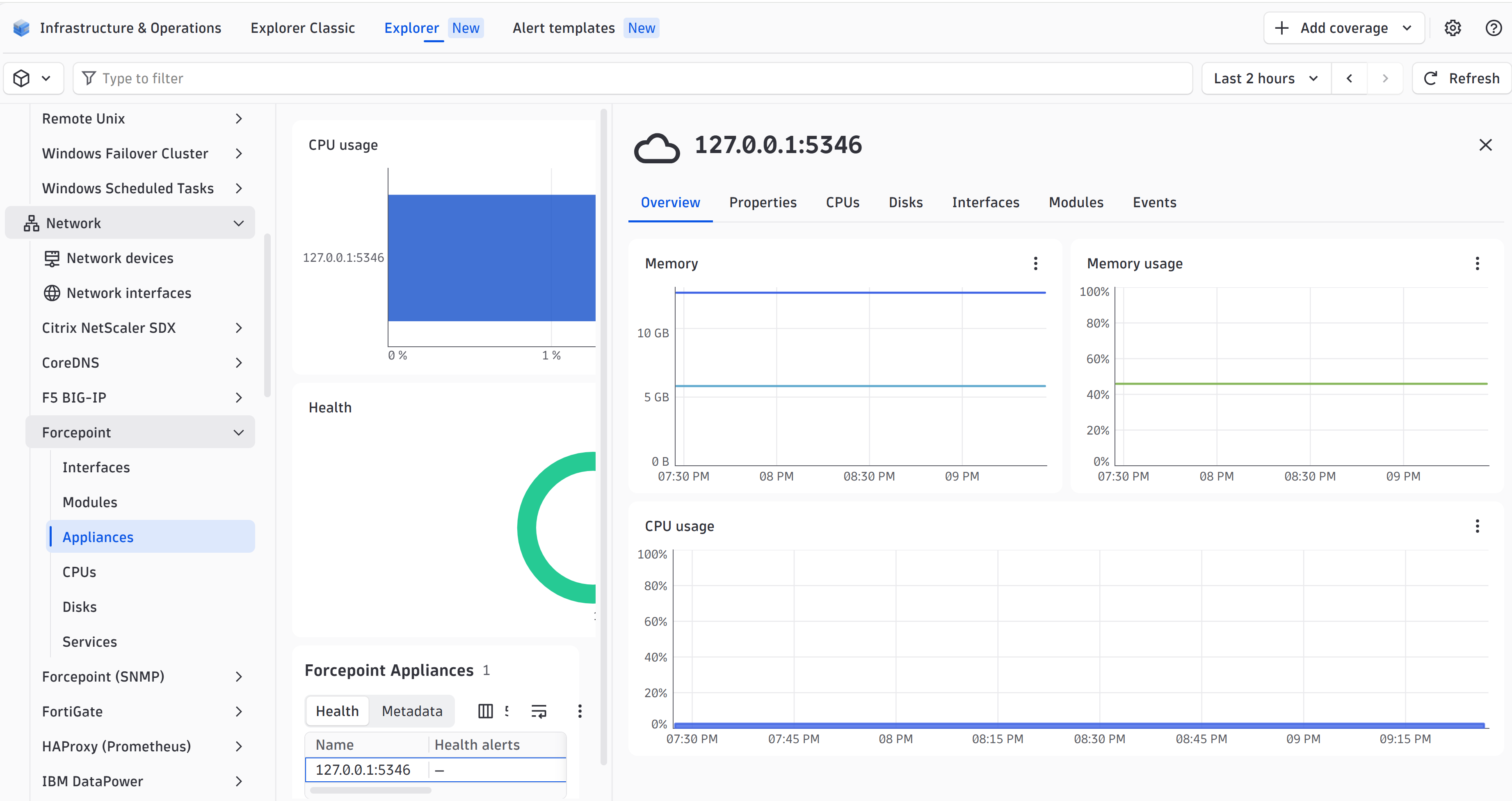

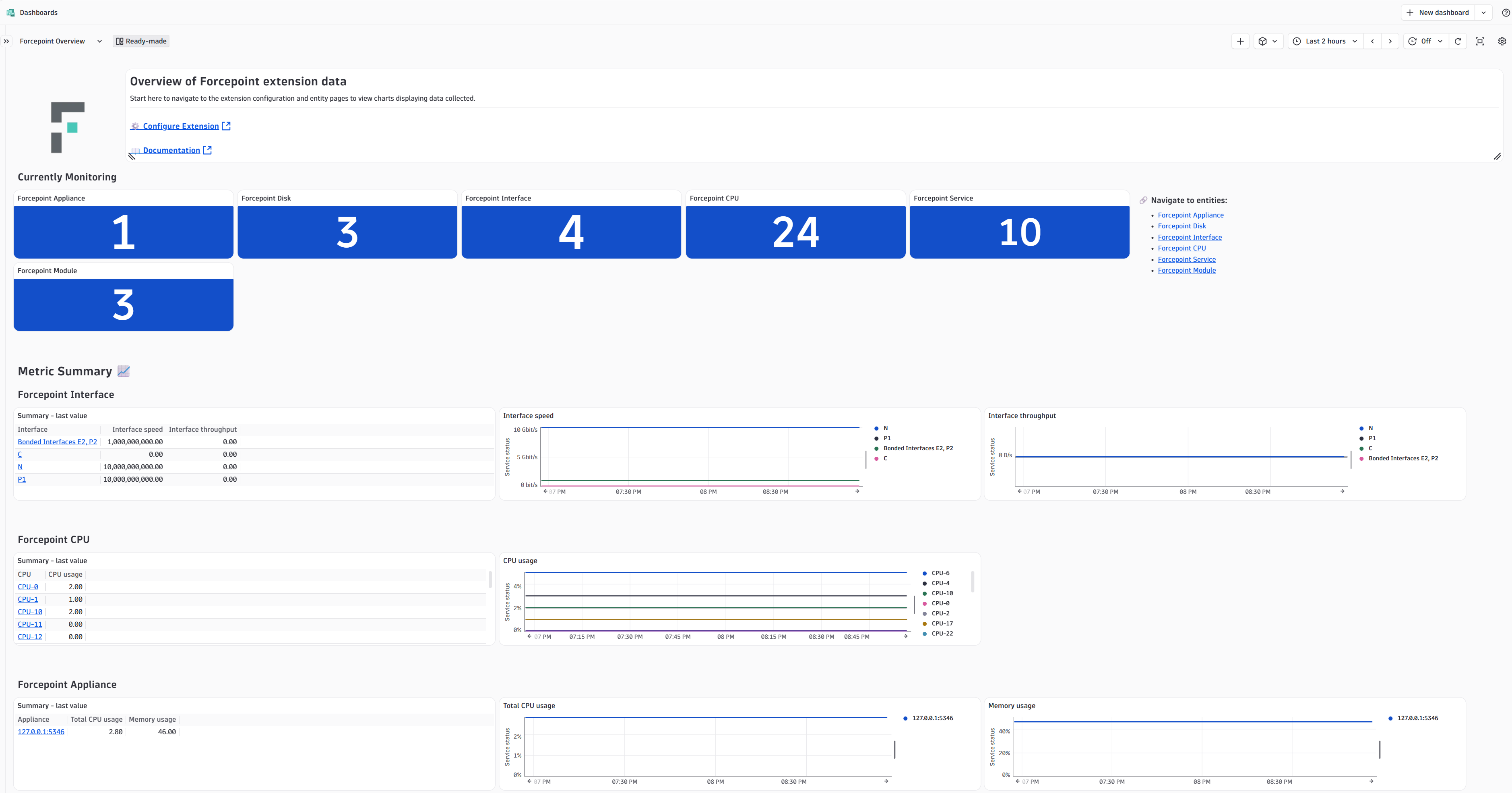

Monitor your Forcepoint appliances and their usage with this extension, which provides insights into systems, CPUs, interfaces, disks and services. Get quick insights with the included Forcepoint dashboard overview or dive deeper into the seamlessly-integrated screens of the different entities created by the custom topology of the extension.

Click on Add to environment to get started.

Get started

Requirements:

ActiveGate on Windows or Linux with version 1.273+
Dynatrace version 1.273+
There must be connectivity between the ActiveGate and the Forcepoint Appliance API

Authentication:

The extension requires a username and password based authentication to run. This user needs to have access to all the polling and system status endpoints of the Forcepoint appliance API.

Dynatrace configuration

The following fields need to be configured for the extension:

URL: Forcepoint appliance API address.
User name: User used to authenticate against the API.
Password: Password for the above user.
Frequency: How often, in minutes, the extension runs. This frequency is the same for all configured endpoints.
Debug: If enabled, generates more verbose logs used for troubleshooting.

Make sure to select which feature sets (metric groups) you would like this configuration to collect. Selecting too few will not give you the proper visibility and you may miss out on important performance data, as well as key indicators that can be correlated between different objects. The endpoints related to unselected feature sets will not be queried.

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

metric metadata

24

screen layout

6

list screen layout

6

alerts

1

screen entities lists

11

generic type

6

screen properties

5

screen chart groups

5

dashboards

1

generic relationship

5

screen actions

12

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Memory usage	forcepoint.system.memory.musedprc	-	Percent
Memory used	forcepoint.system.memory.mused	-	Byte
Memory total	forcepoint.system.memory.mtotal	-	Byte

Metric name	Metric key	Description	Unit
Service status	forcepoint.system.service.status	-	Percent

Metric name	Metric key	Description	Unit
Interface speed	forcepoint.system.interface.speed	-	BitPerSecond
Interface throughput	forcepoint.system.interface.throughput	-	BytePerSecond
Interface status	forcepoint.system.interface.status	-	Percent
Bytes received	forcepoint.system.interface.b_recv.count	-	Byte
Bytes sent	forcepoint.system.interface.b_sent.count	-	Byte
Dropped in	forcepoint.system.interface.drop_in.count	-	Count
Dropped out	forcepoint.system.interface.drop_out.count	-	Count
Errors in	forcepoint.system.interface.err_in.count	-	Count
Errors out	forcepoint.system.interface.err_out.count	-	Count
Packets in rate	forcepoint.system.interface.in	-	PerSecond
Packets out rate	forcepoint.system.interface.out	-	PerSecond
Packets received	forcepoint.system.interface.p_recv.count	-	Count
Packets sent	forcepoint.system.interface.p_sent.count	-	Count

Metric name	Metric key	Description	Unit
Disk I/O	forcepoint.system.disk.iops	-	PerSecond
Disk used space	forcepoint.system.disk.used	-	Byte
Disk free space	forcepoint.system.disk.free	-	Byte
Disk total space	forcepoint.system.disk.total	-	Byte
Disk usage	forcepoint.system.disk.rate	-	Percent

Metric name	Metric key	Description	Unit
CPU usage	forcepoint.system.cpu.cpu_usage	-	Percent
Total CPU usage	forcepoint.system.total_cpu_usage	-	Percent

Related to Forcepoint

ActiveGate

Route traffic, monitor clouds and remote technologies & run Synthetic monitors

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

Adds device.address dimension to ingested metrics

Full version history

Official release of the Forcepoint extension. It includes:

24 metrics controlled via 5 feature sets
Custom topology for forcepoint appliances, CPUs, disks, interfaces, modules and services
UA screens for all of the above
Out-of-the-box overview dashboard
Out-of-the-box disabled metric event for services being down
