Radware Alteon Load BalancerRadware Alteon Load Balancer
Radware Alteon Load Balancer

Radware Alteon Load Balancer

Monitor your Radware Alteon Network Load Balancers through SNMP

Extension
Free trial

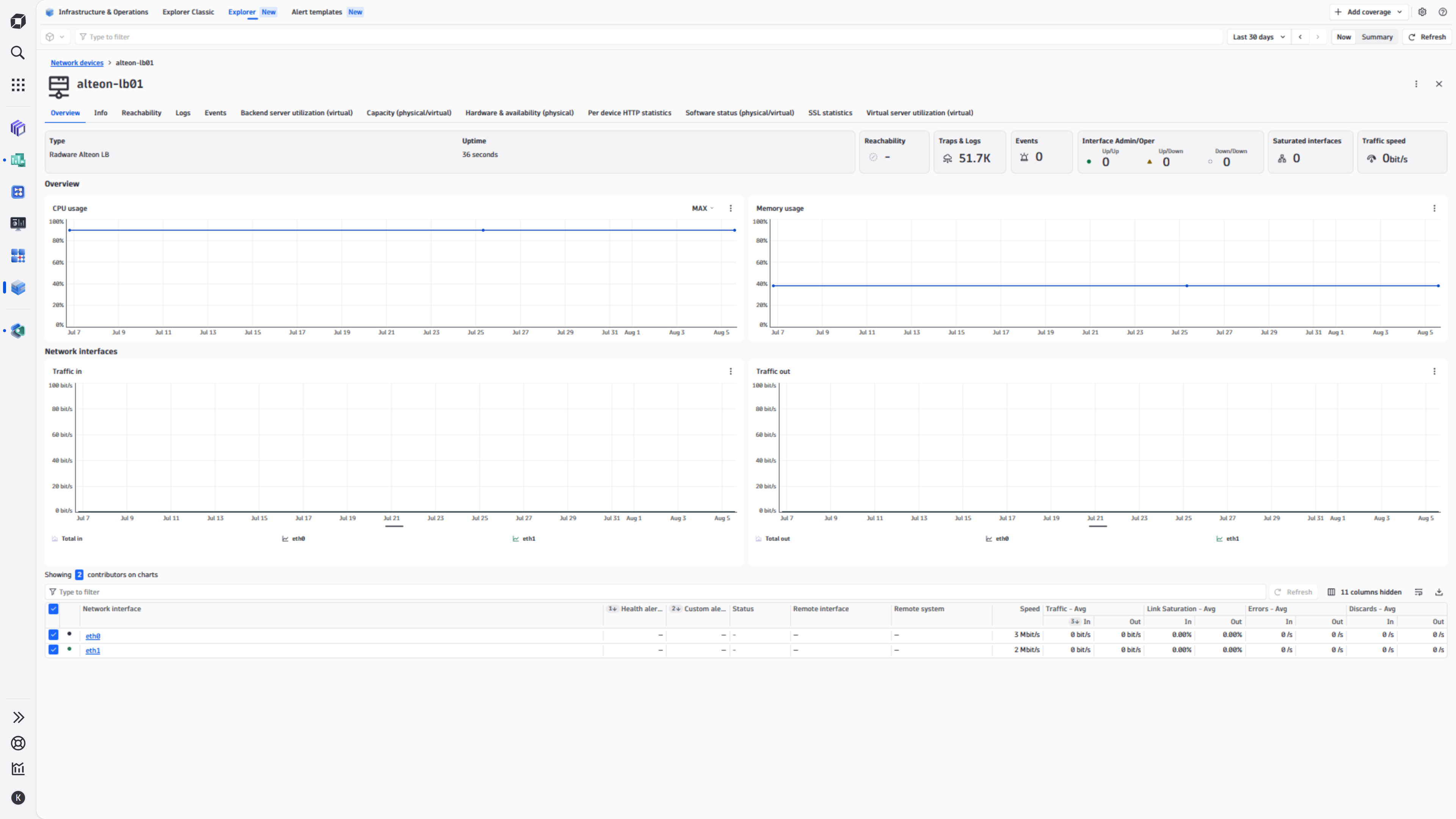

Radware Alteon extension overview platform dashboardRadware Alteon extension device UA screen with charts displaying metrics collected by the extension
  • Product information
  • Release notes

Overview

Monitor your Radware Alteon Network Load Balancer devices and interfaces through SNMP. This extension collects infrastructure metrics to monitor the health and performance of your devices. Metrics are collected via SNMP protocol.

Use cases

  • Monitor important device metrics such as uptime, CPU and memory usage, as well as additional hardware status metrics for temperature, fan and powersupply
  • Monitor device interfaces to report metrics including bytes, discards and errors in/out
  • Collect additional device data including virtual server utilization, HTTP and SSL statistics, throughput and session counts - the full list of monitored metrics can be viewed under Feature Sets
  • Detect device anomalies and avoid outages

Get started

Simply activate the extension in your environment using the in-product Hub, provide the necessary device configuration and you’re all set up. Read more in the SNMP extension data source documentation

Details

The extension package contains:

  • SNMP Data Source configuration

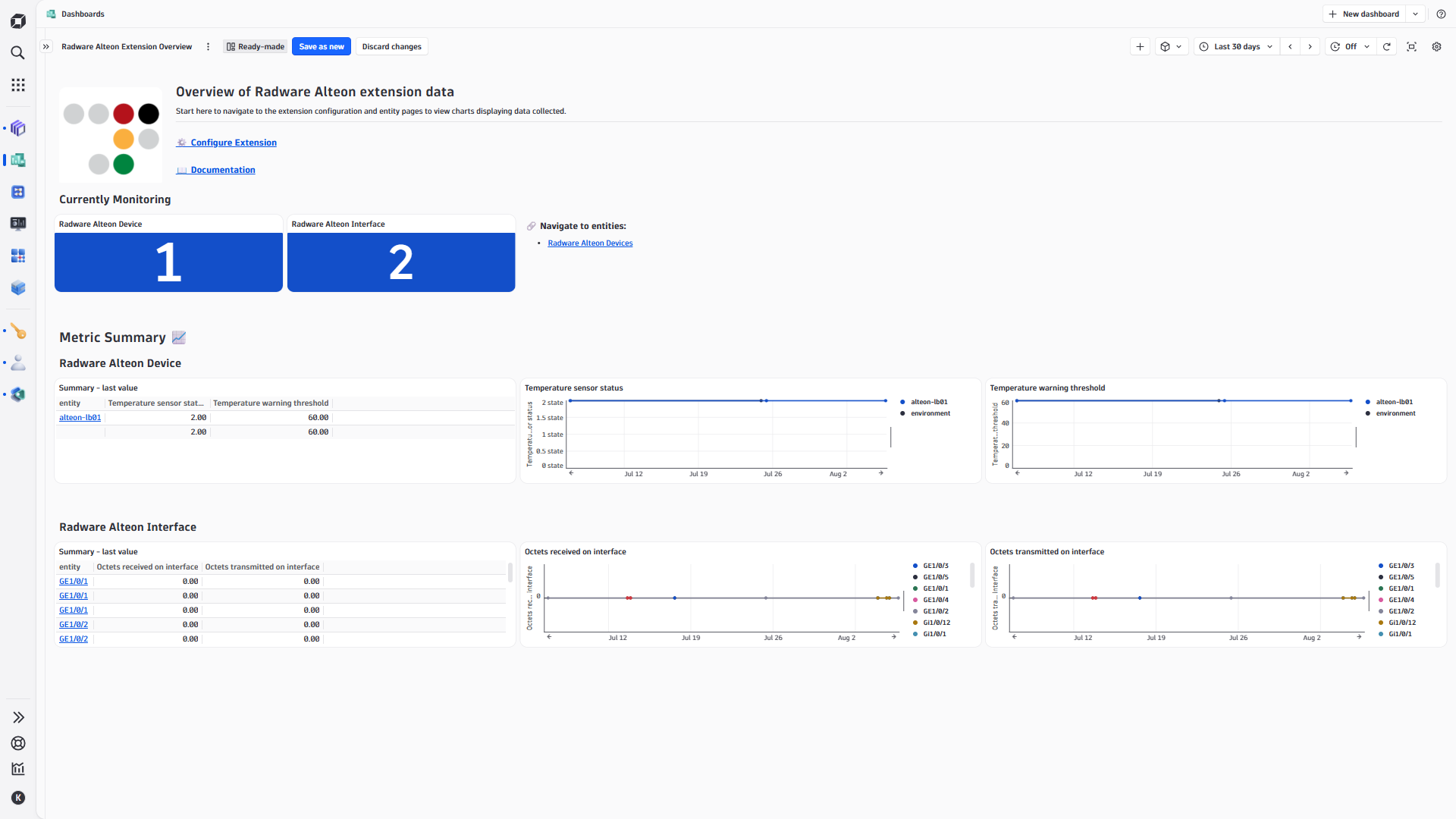

  • Overview dashboard (Classic & Platform)
  • Unified analysis screens
  • Custom topology types extracted from metric dimensions:
    • Radware Alteon Device
    • Radware Alteon Interface
  • SNMP MIB files used for monitoring:
    • IF-MIB
    • ALTEON-CHEETAH-LAYER4-MIB
    • ALTEON-CHEETAH-NETWORK-MIB
    • ALTEON-CHEETAH-SWITCH-MIB
    • ALTEON-ROOT-MIB
Dynatrace
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.sysuptime--
-com.dynatrace.extension.network_device.cpu_usage--
-com.dynatrace.extension.network_device.memory_total--
-com.dynatrace.extension.network_device.memory_free--
-com.dynatrace.extension.network_device.memory_used--
-com.dynatrace.extension.network_device.if.status--
Metric nameMetric keyDescriptionUnit
TCP sessions using SSL serviceradware_alteon.sslslbstat.cursessionsThe current number of different TCP sessions using SSL service.Count
Total TCP sessions using SSL serviceradware_alteon.sslslbstat.totalsessions.countThe total number of different TCP sessions using SSL service.Count
TCP sessions using SSL service high water markradware_alteon.sslslbstat.highestsessions.countThe high water mark of current sessions of different TCP sessions using SSL service.Count
SSL handshakes between clients and AAS per secondradware_alteon.ssloff.newhandShakeNew SSL handshakes between clients and AAS per second.PerSecond
New SSL handshakes between Clients and AAS per second (sslOffPerEnhServNewhandShake)radware_alteon.ssloffper.enh.serv.newhandshakeNumber of New SSL handshakes between Clients and AAS per second for this virtual service.PerSecond
Number of expired SSL certificates per second for virtual service (sslOffPerEnhServExpiredCertificates)radware_alteon.ssloffper.enh.serv.expiredcertificatesNumber of expired SSL certificates per second for virtual service.PerSecond
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.lastchange--
Metric nameMetric keyDescriptionUnit
High availability (HA) service group stateradware_alteon.ha.group.stateHigh availability (HA) service group stateState
High availability (HA) switch stateradware_alteon.ha.switch.stateHigh availability (HA) switch stateState
High availability (HA) moderadware_alteon.ha.curcfg.modeHigh availability (HA) modeState
Metric nameMetric keyDescriptionUnit
HTTP 2.0 connection countradware_alteon.httpstatsumm.http20connection.countHTTP 2.0 connection count.Count
HTTP 1.1 connection countradware_alteon.httpstatsumm.http11connection.countHTTP 1.1 connection count.Count
HTTP 1.0 connection countradware_alteon.httpstatsumm.http10connection.countHTTP 1.0 connection count.Count
HTTP 2.0 connection peak countradware_alteon.httpstatsumm.http20connection.peak.countHTTP 2.0 connection peak count.Count
HTTP 1.1 connection peak countradware_alteon.httpstatsumm.http11connection.peak.countHTTP 1.1 connection peak count.Count
HTTP 1.0 connection peak countradware_alteon.httpstatsumm.http10connection.peak.countHTTP 1.0 connection peak count.Count
HTTP 2.0 request countradware_alteon.httpstatsumm.http20connection.request.countHTTP 2.0 request count.Count
HTTP 1.1 request countradware_alteon.httpstatsumm.http11connection.request.countHTTP 1.1 request count.Count
HTTP 1.0 request countradware_alteon.httpstatsumm.http10connection.request.countHTTP 1.0 request count.Count
HTTP transactions per secondradware_alteon.httptranssumm.trans.rateHTTP transactions per second.Count
Metric nameMetric keyDescriptionUnit
SP CPU utilizationcom.dynatrace.extension.network_device.sp.cpu_usageSP CPU utilizationPercent
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.bytes_in.count--
-com.dynatrace.extension.network_device.if.bytes_out.count--
-com.dynatrace.extension.network_device.if.in.discards.count--
-com.dynatrace.extension.network_device.if.out.discards.count--
-com.dynatrace.extension.network_device.if.in.errors.count--
-com.dynatrace.extension.network_device.if.out.errors.count--

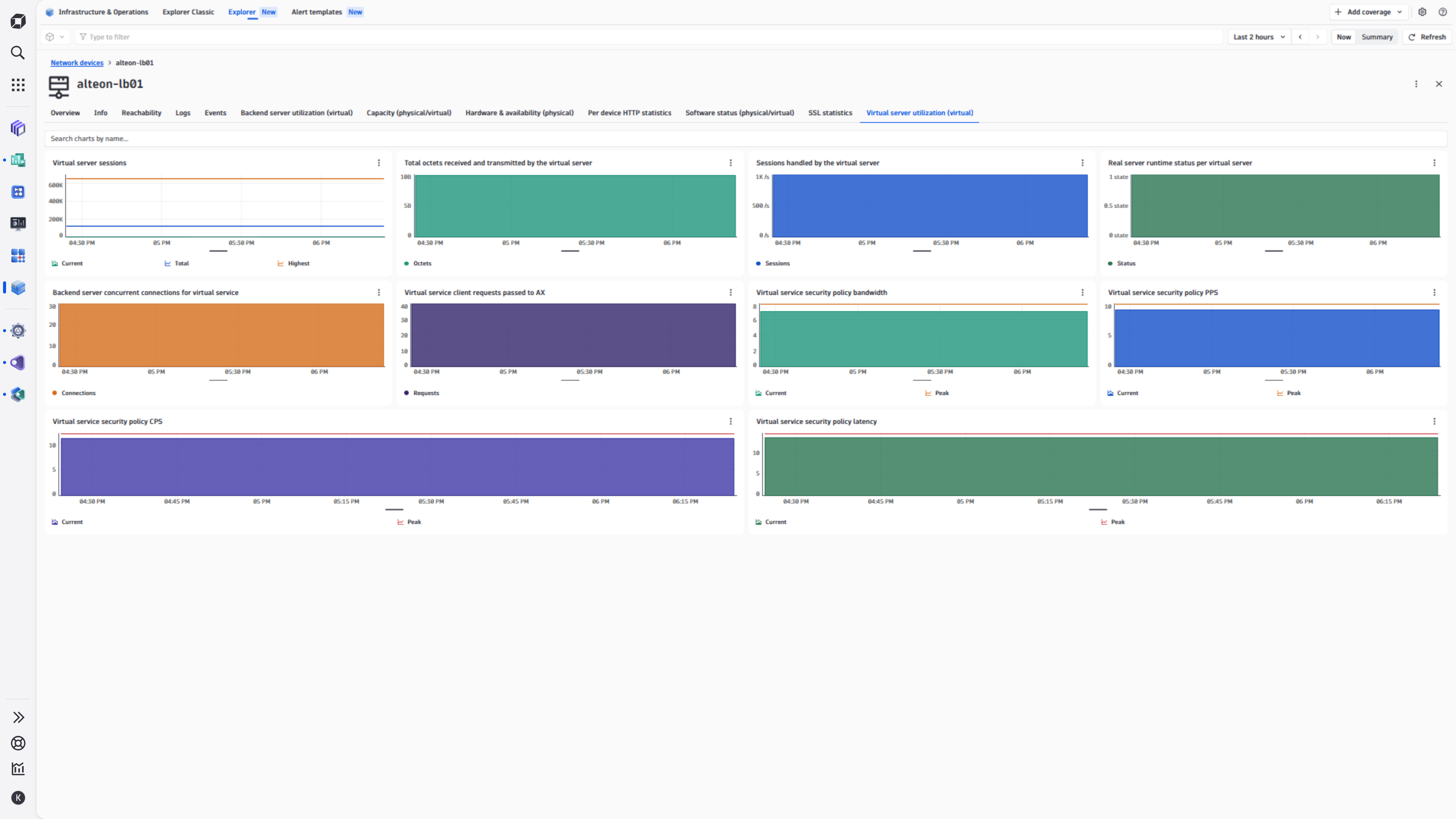

Metric nameMetric keyDescriptionUnit
Virtual server current sessionsradware_alteon.slbstat.enh.vserver.currsessionsThe number of sessions that are currently handled by the virtual server.Count
Virtual server total sessionsradware_alteon.slbstat.enh.vserver.totalsessionsThe total number of sessions that are handled by the virtual server.Count
Virtual server highest sessions handledradware_alteon.slbstat.enh.vserver.highestsessionsThe highest number of sessions that have been handled by the virtual server.Count
Total octets received and transmitted by the virtual serverradware_alteon.slbstat.enh.vserver.hc.octetsThe total octets received and transmitted by the virtual server.Count
Sessions handled by the virtual serverradware_alteon.slbstat.enh.vserver.sessionsNumber of Sessions handled by the virtual server per second.PerSecond
Real server runtime status per virtual serverradware_alteon.slbstat.enh.vserver.real.statusThe runtime Real Server Status per Virtual service. (0)Up, (1)Down, (2)Admin-Down, (3)Warning, (4)Shutdown, (5)ErrorState
Backend server concurrent connections for virtual serviceradware_alteon.commng.enh.perservstats.servconnThe number of concurrent backend server connections for virtual service.Count
Virtual service client requests passed to AXradware_alteon.commng.enh.perservstats.clireqNumber of client requests passed to AX for virtual service.Count
Virtual service security policy peak bandwidth (secPolPerServBwPeak)radware_alteon.secpol.perserv.bw.peakVirtual service security policy stats - Bandwidth peak value.Count
Virtual service security policy bandwidth ( secPolPerServBwCurVal)radware_alteon.secpol.perserv.bw.curvalVirtual service security policy stats - Bandwidth current value.Count
Virtual service security policy PPS current (secPolPerServPPSCurVal)radware_alteon.secpol.perserv.pps.curvalVirtual service security policy stats - PPS current value.Count
Virtual service security policy PPS peak (secPolPerServPPSPeak)radware_alteon.secpol.perserv.pps.peakVirtual service security policy stats - PPS peak value.Count
Virtual service security policy CPS current (secPolPerServCPSCurVal)radware_alteon.secpol.perserv.cps.curvalVirtual service security policy stats - CPS current value.Count
Virtual service security policy CPS peak (secPolPerServCPSPeak)radware_alteon.secpol.perserv.cps.peakVirtual service security policy stats - CPS peak value.Count
Virtual service security policy latency current (secPolPerServLatencyCurVal)radware_alteon.secpol.perserv.latency.curvalVirtual service security policy stats - latency current value.Count
Virtual service security policy latency peak (secPolPerServLatencyPeak)radware_alteon.secpol.perserv.latency.peakVirtual service security policy stats - latency peak value.Count
Metric nameMetric keyDescriptionUnit
Real-server current sessionsradware_alteon.slbstat.enh.rserver.currsessionsReal-server current sessions.Count
Real-server total sessionsradware_alteon.slbstat.enh.rserver.totalsessionsReal-server total sessions.Count
Real-server highest sessionsradware_alteon.slbstat.enh.rserver.highestsessionsReal-server highest sessions.Count
Real-server total rx/tx octetsradware_alteon.slbstat.enh.rserver.hc.octetsReal-server total rx/tx octets.Count
Real server max concurrent connectionsradware_alteon.slbcur.cfg.realserver.maxconnsThe Maximum allowed number of concurrent connections per real server in the configuration.Count
SP current memoryradware_alteon.spmemusagestats.currentmemoryThe current memory of SP in kilobytes.KiloByte
Real-server group current sessionsradware_alteon.slbstat.enh.group.currsessionsThe number of sessions that are currently handled by the real server group.Count
Real-server group total sessionsradware_alteon.slbstat.enh.group.totalsessionsThe total number of sessions that have been handled by the real server group.Count
Real-server group highest sessionsradware_alteon.slbstat.enh.group.highestsessionsThe highest sessions that have been handled by the real server group.Count

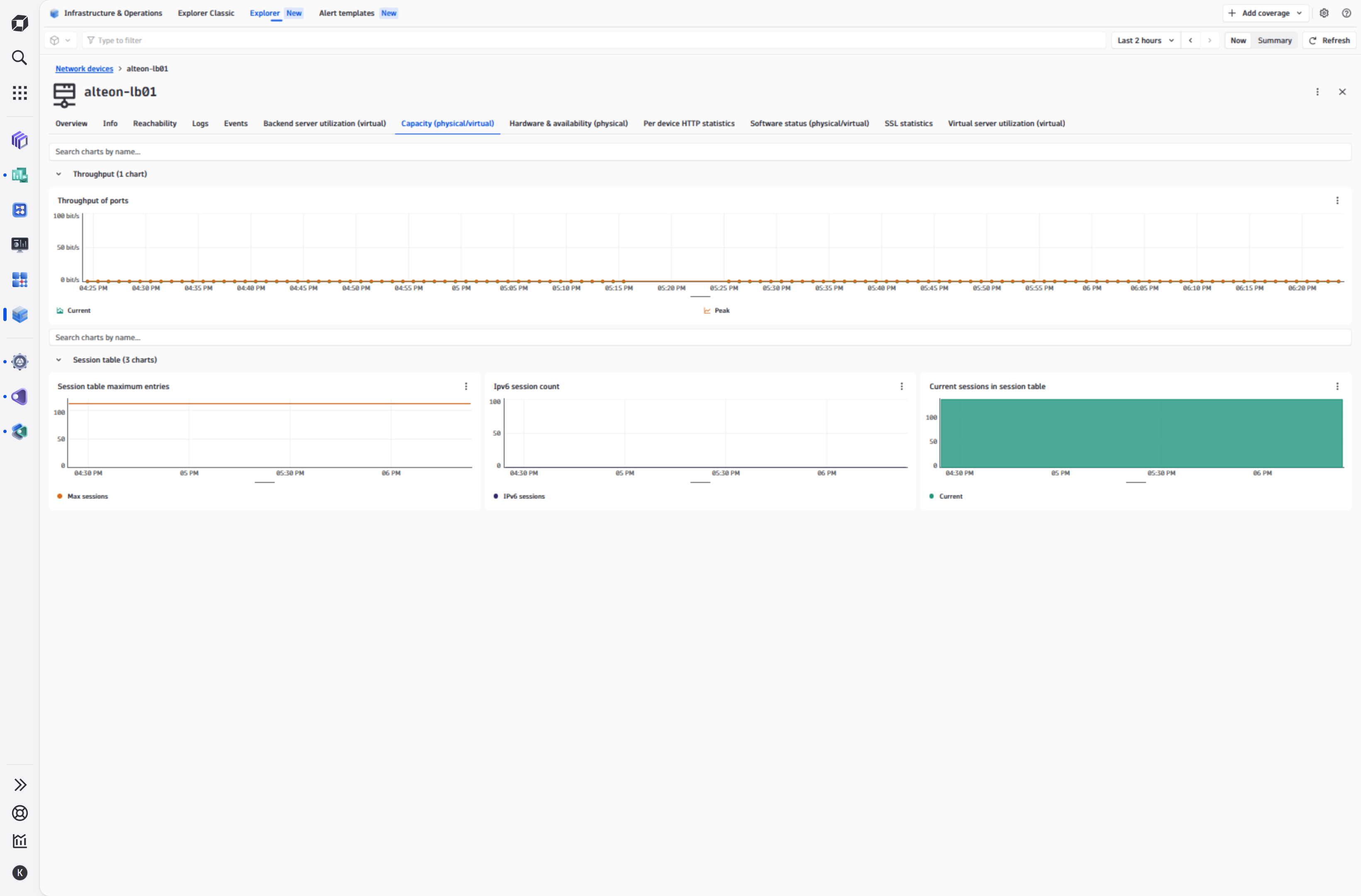

Metric nameMetric keyDescriptionUnit
Peak throughput of portsradware_alteon.peakthroughputusage.countPeak throughput of ports in bits per second.BitPerSecond
Current throughput of portsradware_alteon.curthroughputusage.countCurrent throughput of ports in bits per second.BitPerSecond
Metric nameMetric keyDescriptionUnit
Session table maximum entriesradware_alteon.slbstat.maint.maximumsessionsThe maximum number entries in the session table.Count
Ipv6 session countradware_alteon.slbstat.maint.ip6currsessions.countThe number of sessions for ipv6.Count
Curent sessions in session tableradware_alteon.slbstat.maint.curbindingsThe current number of sessions in the session table.Count
Metric nameMetric keyDescriptionUnit
Temperature sensor statusradware_alteon.temperature.statusThe status of the temperature sensor. ok(1), exceed(2)State
Temperature warning thresholdradware_alteon.temperature.threshold.warningThe temperature warning thresholdUnspecified
Temperature shutdown thresholdradware_alteon.temperature.threshold.shutdownThe temperature shutdown thresholdUnspecified
Hardware fan statusradware_alteon.fan.statusHardware fan status. ok(1), fail(2), unplug(3)State
Powersupply statusradware_alteon.powersupply.statusPowersupply status. singlePowerSupplyOk(1), firstPowerSupplyFailed(2), secondPowerSupplyFailed(3), doublePowerSupplyOk(4), unknownPowerSupplyFailed(5)State

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

⚠️Required action:

  • In this version, the following metrics have been removed from the default feature set and added to a new Interfaces feature set. If you would like to capture these metrics you need to enable the Interfaces feature set in the extension configuration:
    • com.dynatrace.extension.network_device.if.bytes_in.count
    • com.dynatrace.extension.network_device.if.bytes_out.count
    • com.dynatrace.extension.network_device.if.in.discards.count
    • com.dynatrace.extension.network_device.if.out.discards.count
    • com.dynatrace.extension.network_device.if.in.errors.count
    • com.dynatrace.extension.network_device.if.out.errors.count

✨ New in this version:

  • Added feature set metadata for recommended metrics

🪲 Fixed in this version:

  • radware_alteon.slbstat.enh.vserver.* metrics now use correct table type for OIDs

Full version history

✨ New in this version:

  • Update entity links on gen 3 dashboard to link to I&O app
  • Ensure required dimensions exist for entity creation

Full version history

Initial release including: device and interface metrics, classic & platform dashboards, screens
