Fortinet FortiGateFortinet FortiGate
Fortinet FortiGate

Fortinet FortiGate

Gain insights into the performance of your Fortinet FortiGate solution.

Extension
Free trialDocumentation

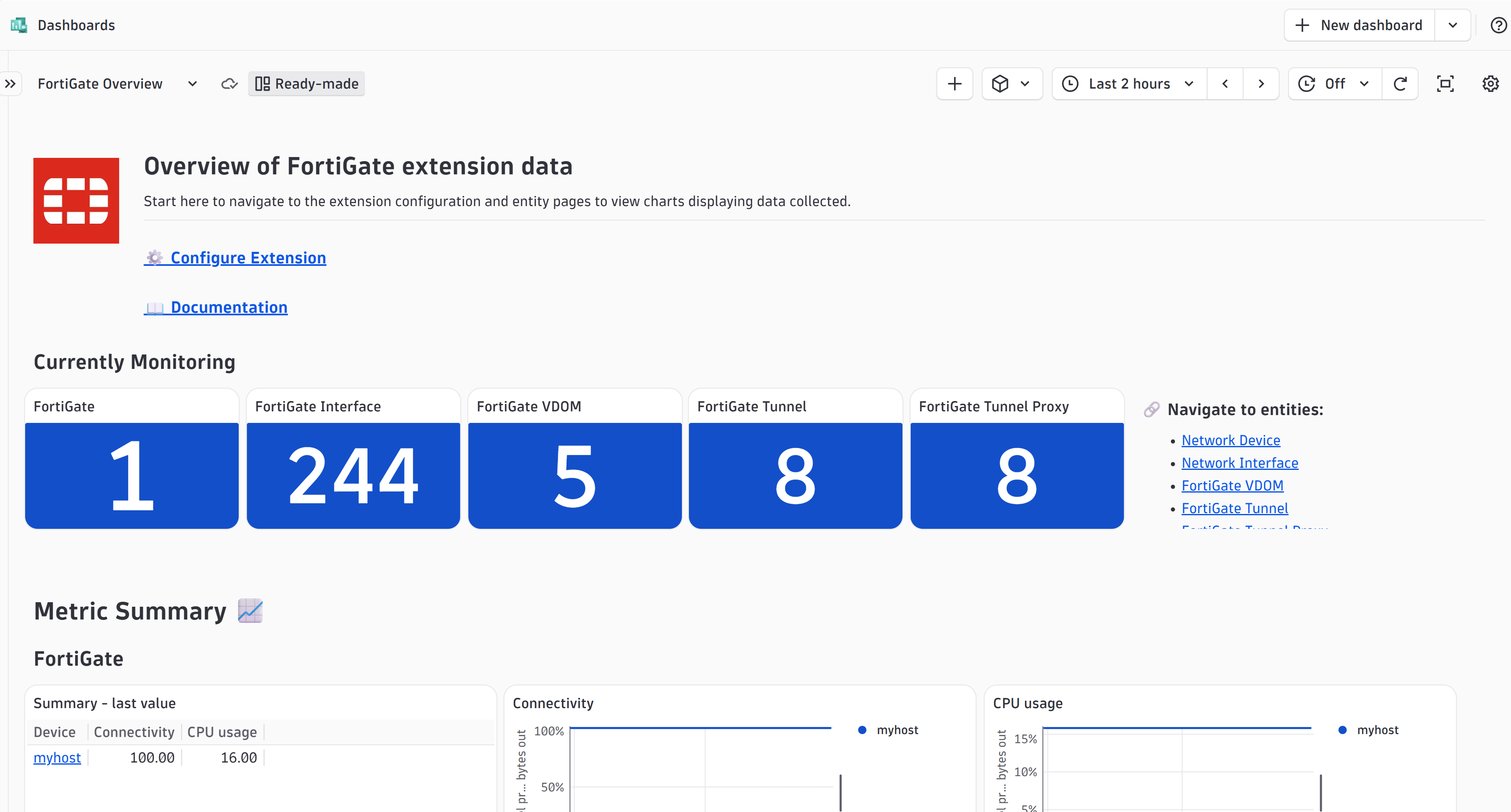

When configured, the extension installs a dashboard that provides an overview of all FortiGate devices monitored in environment.Tunnels and interfaces are detected for each individual FortiGate device.Standard system status metrics are retrieved for each monitored FortiGate device.Traffic is measured for each monitored interface.Monitor traffic and errors for each individual interface.For each detected tunnel, the extension identifies a list of associated proxies and brings in the traffic data.Extension retrieves detailed traffic and status data for each monitored tunnel proxy.The monitoring configuration screen makes it possible to limit monitoring to specific interfaces, tunnels, and proxies. It is possible to prevent the extension from raising problems when it fails to either ping, log in, or retrieve system status from a FortiGate device.
  • Product information
  • Release notes

Overview

The FortiGate Monitoring extension uses HTTP API requests to gather data remotely, ensuring that data from your Fortinet FortiGate devices is collected every minute and analyzed continuously by our platform. This tool offers insights that extend beyond simple charting, covering the extensive features and capabilities of the FortiGate devices. Our unified analysis pages provide deep insights into both the health and performance of your network security infrastructure, while our analytics engine sets baselines and alerts for critical indicators. With a topology-first approach, our AI-driven analytics can explore and correlate detected issues across components to pinpoint root causes.

This is designed for users who:

  • Aim to monitor the health state and performance of their FortiGate Fortinet devices
  • Seek analysis support for security, IT, and network administrators.

This enables you to:

  • Monitor your network security infrastructure with an all-encompassing dashboard
  • Detect network anomalies and establish alerting mechanisms for them
  • Monitor traffic, errors, and connectivity to the devices
  • Implement proactive measures to prevent security incidents and service degradation

Use cases

  • Monitor Fortinet FortiGate infrastructure and resource utilization
  • Understand the health and performance of firewall, interfaces, tunnels, and proxies
  • Enable alerting on detected anomalies

Compatibility information

The extension retrieves the list of interfaces and available interfaces from the two endpoints below:

  • /monitor/system/interface/select?scope=global
  • /monitor/system/available-interfaces/select

As such, queries to CMDB endpoints are not performed and include_vlan parameter is not added to the query. This may lead to not all virtual interfaces being collected during data acquisition process.

Dynatrace
Documentation
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen chart groups
30
list screen layout
6
generic type
8
screen entities lists
11
document dashboard
1
screen properties
5
dashboards
1
generic relationship
8
screen dql table
5
metric metadata
27
screen layout
12
screen actions
12

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
Tunnel bytes infortigate.tunnel.bytes.in.countTunnel bytes inByte
Tunnel bytes outfortigate.tunnel.bytes.out.countTunnel bytes outByte
Tunnel proxy bytes infortigate.tunnel.proxy.bytes.in.countTunnel proxy bytes inByte
Tunnel proxy bytes outfortigate.tunnel.proxy.bytes.out.countTunnel proxy bytes outByte
Tunnel proxy statusfortigate.tunnel.proxy.statusTunnel proxy statusState
Metric nameMetric keyDescriptionUnit
Ping availabilityfortigate.ping.availabilityPing availabilityPercent
Ping packets infortigate.ping.packets.inPing packets inCount
Ping packets outfortigate.ping.packets.outPing packets outCount
Ping packets lostfortigate.ping.packets.lostPing packets lostCount
Ping RTTfortigate.ping.rttPing RTTMilliSecond
Metric nameMetric keyDescriptionUnit
Interface bytes infortigate.interface.bytes.in.countInterface bytes inByte
Interface bytes outfortigate.interface.bytes.out.countInterface bytes outByte
Interface errors infortigate.interface.errors.in.countInterface errors inCount
Interface errors outfortigate.interface.errors.out.countInterface errors outCount
Interface packets infortigate.interface.packets.in.countInterface packets inCount
Interface packets outfortigate.interface.packets.out.countInterface packets outCount
Interface speedfortigate.interface.speedInterface speedUnspecified
Interface statusfortigate.interface.statusInterface statusState
Metric nameMetric keyDescriptionUnit
Connectivityfortigate.connectivityConnectivityPercent
CPU usagefortigate.cpu.usageCPU usagePercent
Disk log ratefortigate.disk.log.rateDisk log ratePercent
Disk usagefortigate.disk.usageDisk usagePercent
Memory usagefortigate.memory.usageMemory usagePercent
Sessionsfortigate.sessionsIPv4 SessionsCount
IPv6 Sessionsfortigate.sessions.ipv6IPv6 SessionsCount

Related to Fortinet FortiGate

ActiveGate logo

ActiveGate

Route traffic, monitor clouds and remote technologies & run Synthetic monitors

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

  • Fixed a bug where the user session would stay open when login succeeded but API calls failed

Full version history

⚠️ NOTE: This version requires a minimum Dynatrace and EEC version of 1.313

🚀 Improved in this version:

  • Error codes added to reported errors
  • Status reported per endpoint

Full version history

  • Added credential vault support for username and password credentials
  • Added global authentication option settings

Full version history

  • Add support for the dt.security_context attribute
  • Add new platform dashboard
  • Add platform screens
  • Add advanced configuration settings
    • It is now possible to separate Fortigate devices in the same config into different task buckets so that they are assigned to different ActiveGates

Full version history

  • Add fortigate.available_interface.link_status metric to capture an available interface's link status
  • Changed fortigate.available_interface.status metric display name to Admin status to better reflect its meaning

Full version history

  • Previously, the extension only monitored the root VDOM. It monitors every VDOM now.
  • Possibility to filter VDOMs.
  • Added VDOM entity, its relationships and screens.
  • Correctly link Fortigate entities with the network device to show up in the I&O app.

Full version history

Improvements:

  • Allow access token to be passed as a header for FortiGate 7.4.5 and above.
  • The entire monitoring configuration only fails when all endpoints have failed.

Full version history

Bug fixes:

  • Previously, modifying the feature sets had no effect on reported metrics. With this fix, disabling a feature set disables its metrics as well.

Full version history

Bug fixes:

  • Fixed an error condition where trying to ping an unreachable host caused an exception and did not raise a problem event.

Full version history

Breaking changes:

  • This is a new MAJOR release. Not compatible with previously published versions.
  • Any existing monitoring configurations will have to be recreated.

Bug fixes:

  • Inability to filter down interfaces due to the splitlines attribute bug.

Improvements:

  • Highly improved parallel execution.
  • Option to enable problem alerts on: Login failure, Ping failure, system status retrieval failure.
  • More detailed Ping metrics.
  • Improved topology. Available interfaces are tracked separately from Interfaces.
  • Robust fastcheck procedure that makes sure that the ActiveGate can actually connect to the device before proceeding with monitoring.
  • Ability to control which data to collect using Feature Sets.

Features:

  • Limit data collection to specific Interfaces, Tunnels, and Proxies.
  • Connectivity metric now measures whether we were able to successfully retrieve the system status information.
  • Availability metric measures percentage of the ping packets that have succeeded.
  • Both IPv4 and IPv6 sessions are now monitored.
  • Metrics for Interface speed and status.

Full version history

Initial release
