Tomcat (JMX)Tomcat (JMX)
Tomcat (JMX)

Tomcat (JMX)

JMX monitoring of Tomcat connection and thread pools, and web request activity.

Extension
Free trialDocumentation

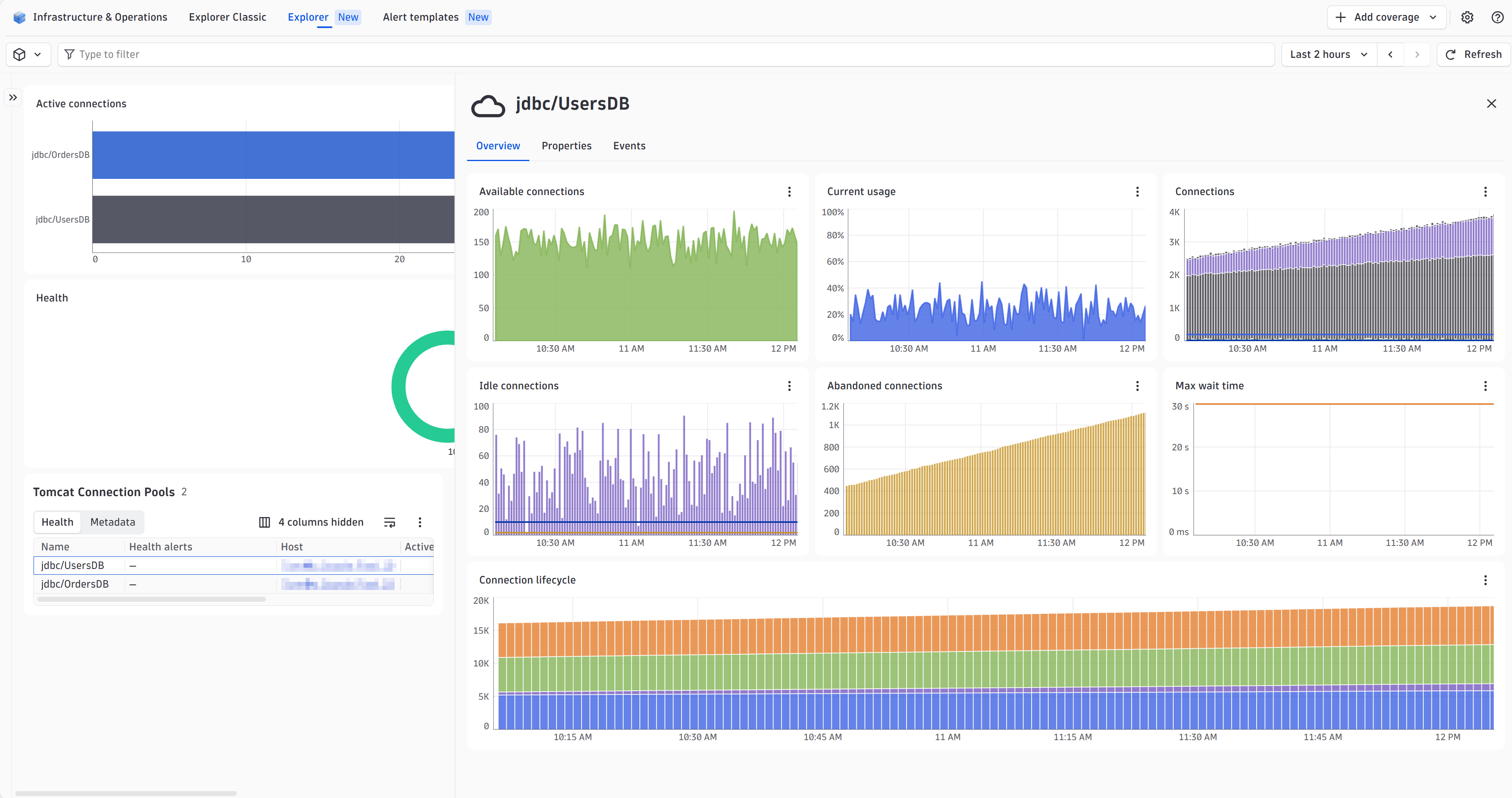

A connection pool entity screen.Data for thread pools and web request activity available in the process group instance Unified Analysis screen.
  • Product information
  • Release notes

Overview

Apache Tomcat is an open-source web server developed by the Apache Software Foundation (ASF) and one of the most popular servlet containers available today. It’s an incredibly lightweight, flexible and extremely stable platform to build on. The OneAgent will allow you to trace activity on and through your Tomcat applications. Using this JMX extension you'll be able to collect additional key performance data to identify issues and optimize your Tomcat configurations.

Use cases

  • Identify issues with connection pool utilization and activity that could impact your web applications
  • Optimize your thread and connection pool configurations to increase efficiency while not impacting your application clients
  • Monitor your web application by viewing web request activity and performance data from Tomcat's perspective in context with other key metrics

Compatibility information

The following Mbeans are used for collecting data. If you not seeing metrics check that the following Mbeans exist using the tool of your choice (e.g. JConsole).

  • Connection pools:
    • Catalina:type=DataSource,name=*,class=*,context=*,host=* or Catalina:type=DataSource,name=*,class=*
  • Thread pools:
    • Catalina:type=ThreadPool,name=*
  • Web request activity
    • Catalina:type=GlobalRequestProcessor,name=*

For connection pools specifically, this extension only supports the standard Tomcat connection pooling implementation with Mbeans under the Catalina domain. It is not uncommon for a different pooling implementation to be used and in these cases you may need to create your own custom JMX extension to collect similar data (if it is available via JMX). You should consult your implementation's documentation or review available Mbeans in your Tomcat process to get started with this.

Dynatrace
DocumentationMore Information
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen properties
1
screen layout
2
document dashboard
1
list screen layout
1
metric metadata
33
screen chart groups
9
screen injections
7
screen entities lists
1
screen metric tables
3
generic relationship
1
dashboards
1
metric query
8
generic type
1
screen dql table
3

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
Bytes recievedtomcat.bytesReceived.countBytes recievedByte
Bytes senttomcat.bytesSent.countBytes sentByte
Request counttomcat.requestCount.countRequest countCount
Error counttomcat.errorCount.countError countCount
Request processing timetomcat.processingTime.countRequest processing timeMilliSecond
Metric nameMetric keyDescriptionUnit
Active connectionstomcat.connectionPool.activeConnectionsCurrently used connectionsCount
Created connectionstomcat.connectionPool.createdConnectionsNumber of connections createdCount
Idle connectionstomcat.connectionPool.idleConnectionsNumber of open but unused connectionsCount
Waiting connectionstomcat.connectionPool.numWaitersCurrently waiting connectionsCount
Abandoned connectionstomcat.connectionPool.removeAbandonedNumber of connections that have not been properly releasedCount
Abandoned connection timeouttomcat.connectionPool.removeAbandonedTimeoutTimeout before an abandoned connection can be removedSecond
Waiting connection requeststomcat.connectionPool.waitCountNumber of connection requests currently waitingCount
Metric nameMetric keyDescriptionUnit
Current thread counttomcat.threadPool.currentThreadCountCurrent thread countCount
Current threads busytomcat.threadPool.currentThreadsBusyCurrent threads busyCount
Max threads allowedtomcat.threadPool.maxThreadsMax threads allowedCount
Metric nameMetric keyDescriptionUnit
Stuck thread counttomcat.stuckThreadsStuck thread countCount
Metric nameMetric keyDescriptionUnit
Max total connectionstomcat.connectionPool.maxTotalMaximum total amount of connectionsCount
Max active connectionstomcat.connectionPool.maxActiveMaximum amount of active connections allowed concurrentlyCount
Max idle connectionstomcat.connectionPool.maxIdleThe maximum number of connections that should be kept in the pool at all timesCount
Max wait timetomcat.connectionPool.maxWaitThe maximum number of milliseconds that the pool will wait (when there are no available connections) for a connection to be returned before throwing an exceptionMillisecond
Minimum idletomcat.connectionPool.minIdleThe minimum number of established connections that should be kept in the pool at all timesCount
Metric nameMetric keyDescriptionUnit
Borrowed connectionstomcat.connectionPool.borrowedConnections-Count
Reconnected connectionstomcat.connectionPool.reconnectedConnections-Count
Released connectionstomcat.connectionPool.releasedConnections-Count
Returned connectionstomcat.connectionPool.returnedConnections-Count

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

New in this version:

  • Added keyword key value pairs to extension

Full version history

  • Added gen 3 screens and dashboards

Full version history

Update that makes this a more general Tomcat extension

  • Includes feature sets and changes for App Server metrics
    • Thread pools
    • Web requests

Full version history

  • Added metrics:
    • tomcat.connectionPool.numWaiters
    • tomcat.connectionPool.maxTotal
    • func:tomcat.connectionPool.currentUsage
  • Added new charts in UA screens for these metrics

Full version history

  • Fix a bug which prevented the extension from being imported in some environments.

Full version history

  • Includes support for 'global' data source resources (i.e. Mbeans with no 'host' or 'context' attribute)

Full version history

Solved a bug where the name dimension was not being ingested correctly, which prevented custom topology entities from being created.

Full version history

EF1 to EF2 Tomcat Connection Pool conversion:

  • Add Tomcat connection pool entity and its relation to the tomcat process
  • Custom unified analysis screen for Tomcat connection pools
  • Metric chart injection into Process Group Instance screen
  • Overview dashboard for Tomcat connection pools
  • Add feature sets to control included metrics
  • New metric func:tomcat.connectionPool.availableConnections that shows the current available connections
  • All metrics have changed key from the EF1 version. The prefix builtin:tech.tomcat has been removed. This is a breaking change for any configuration you had which used the metric key, such as metric events.
