Cisco Catalyst SD-WAN Manager (Viptela)Cisco Catalyst SD-WAN Manager (Viptela)
Cisco Catalyst SD-WAN Manager (Viptela)

Cisco Catalyst SD-WAN Manager (Viptela)

Get insights into the Cisco SD-WAN performance through the vManage API

Extension
Free trialDocumentation

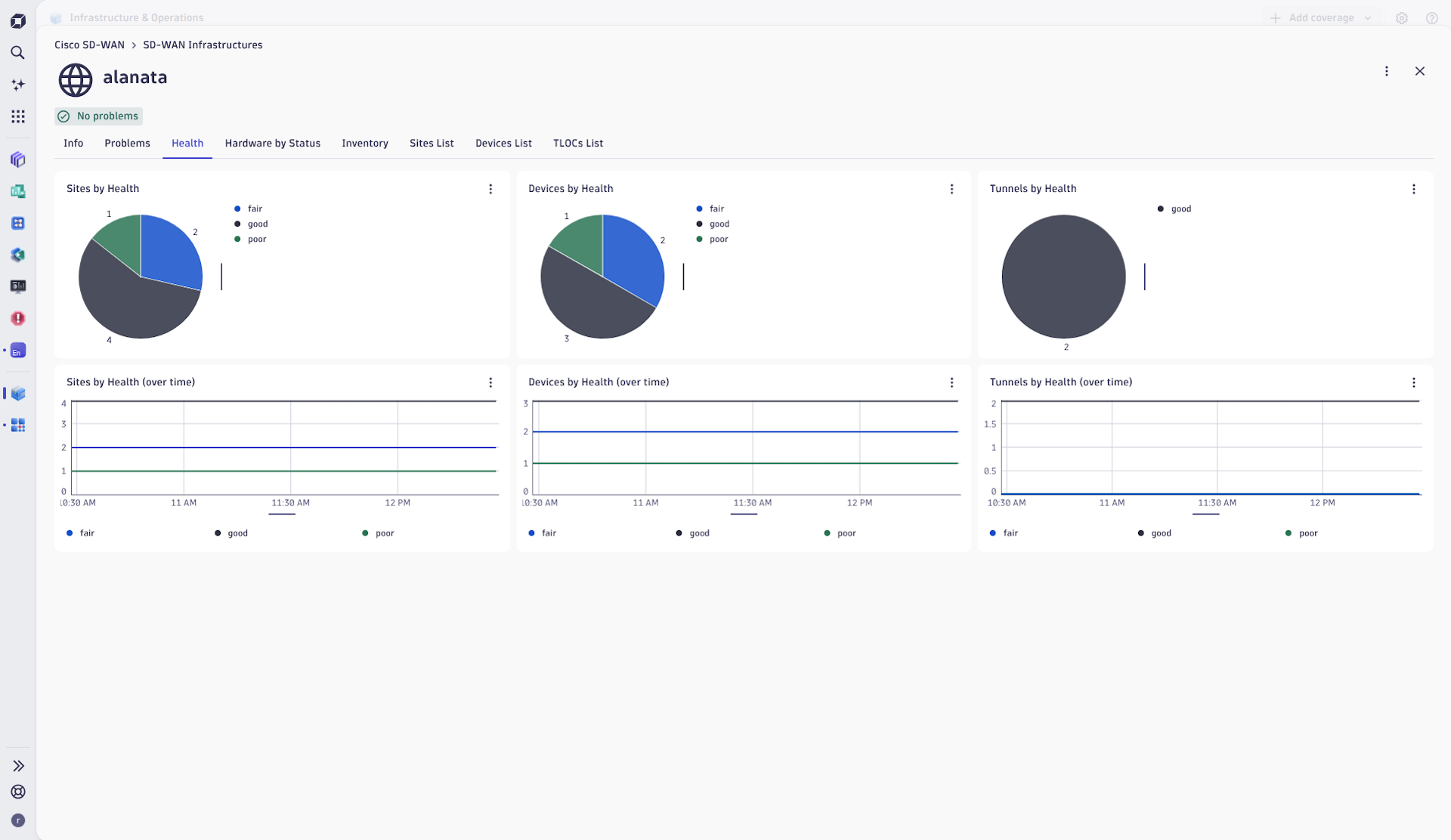

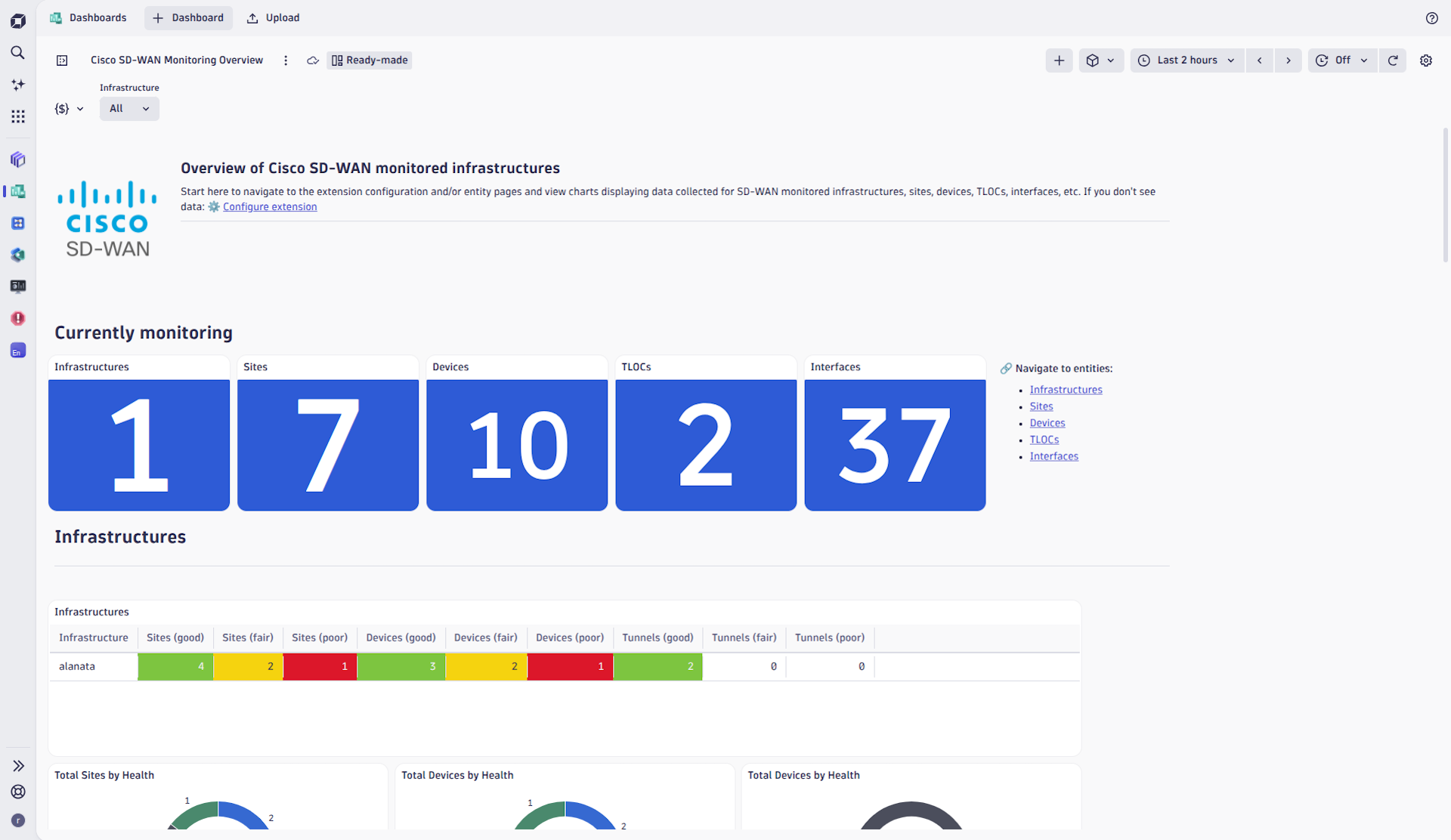

Cisco SD-WAN sample dashboardCisco SD-WAN sample dashboardSD-WAN infrastructure health screen in the I&O appDevice interfaces screen in the I&O appSelf-monitoring dashboard
  • Product information
  • Release notes

Overview

Cisco SD-WAN Extension uses Cisco Catalyst SD-WAN Manager API to collect performance metrics for the Cisco SD-WAN fabric managed by one or multiple Cisco SD-WAN Managers (vManage).

Use cases

  • Use Dynatrace for the entire network infrastructure monitoring
  • Get Cisco Catalyst SD-WAN infrastructure information into the Dynatrace
  • Extend Dynatrace insights into the Cisco SD-WAN fabric performance

Get started

Follow the Cisco SD-WAN Manager Configuration procedure described on the Documentation page.

Dynatrace
Documentation
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.if.in.pkts.count--
-com.dynatrace.extension.network_device.if.out.pkts.count--
Metric nameMetric keyDescriptionUnit
CPU Systemcisco.sdwan.device.cpu_systemSD-WAN Device CPU System UtilizationPercent
CPU Usercisco.sdwan.device.cpu_userSD-WAN Device CPU User UtilizationPercent
CPU Idlecisco.sdwan.device.cpu_idleSD-WAN Device CPU IdlePercent
Memory Usedcisco.sdwan.device.mem_usedSD-WAN Device Memory UsedByte
Memory Freecisco.sdwan.device.mem_freeSD-WAN Device Memory FreeByte
Memory Bufferscisco.sdwan.device.mem_buffersSD-WAN Device Memory BuffersByte
Memory Cachedcisco.sdwan.device.mem_cachedSD-WAN Device Memory CachedByte
Processes Totalcisco.sdwan.device.totalpSD-WAN Device Total ProcessesCount
Processes Runningcisco.sdwan.device.runningpSD-WAN Device Running ProcessesCount
Disk Usedcisco.sdwan.device.disk_usedSD-WAN Device Disk UsedByte
Disk Availablecisco.sdwan.device.disk_availSD-WAN Device Disk AvailableByte
Metric nameMetric keyDescriptionUnit
Total duration of all rate-limited executed queries to all connection urls to collect data reported as metricssfm.cisco.sdwan.monitor.run.total.duration-Second
Total duration of all rate-limited synchronously executed queries to all connection urls to collect data reported as metricssfm.cisco.sdwan.monitor.run.sync.duration-Second
Metrics Data Collection Overall Asynchronous Timesfm.cisco.sdwan.monitor.run.async.durationTotal duration of all rate-limited asynchronously executed queries to all connection urls to collect data reported as metricsSecond
Metrics Data Collection Errorsfm.cisco.sdwan.monitor.run.errorIndicates whether an unhandled error occurred during execution of Metrics Data Collection.Count
get_site_health_stats Query Timesfm.cisco.sdwan.get_site_health_stats.duration-Second
get_site_health_stats Errorsfm.cisco.sdwan.get_site_health_stats.errorIndicates whether an error occurred during get_site_health_stats QueryCount
report_site_health_stats Overall Timesfm.cisco.sdwan.report_site_health_stats.duration-Second
report_site_health_stats Errorsfm.cisco.sdwan.report_site_health_stats.errorIndicates whether an error occurred during report_site_health_statsCount
get_vedge_inventory_summary Query Timesfm.cisco.sdwan.get_vedge_inventory_summary.duration-Second
get_vedge_inventory_summary Errorsfm.cisco.sdwan.get_vedge_inventory_summary.errorIndicates whether an error occurred during get_vedge_inventory_summary QueryCount
report_vedge_inventory_summary Overall Timesfm.cisco.sdwan.report_vedge_inventory_summary.duration-Second
report_vedge_inventory_summary Errorsfm.cisco.sdwan.report_vedge_inventory_summary.errorIndicates whether an error occurred during report_vedge_inventory_summaryCount
get_device_health_overview_stats Query Timesfm.cisco.sdwan.get_device_health_overview_stats.duration-Second
get_device_health_overview_stats Errorsfm.cisco.sdwan.get_device_health_overview_stats.errorIndicates whether an error occurred during get_device_health_overview_stats QueryCount
report_device_health_overview Overall Timesfm.cisco.sdwan.report_device_health_overview.duration-Second
report_device_health_overview Errorsfm.cisco.sdwan.report_device_health_overview.errorIndicates whether an error occurred during report_device_health_overviewCount
get_hardware_health_summary Query Timesfm.cisco.sdwan.get_hardware_health_summary.duration-Second
get_hardware_health_summary Errorsfm.cisco.sdwan.get_hardware_health_summary.errorIndicates whether an error occurred during get_hardware_health_summary QueryCount
report_hardware_health_summary Overall Timesfm.cisco.sdwan.report_hardware_health_summary.duration-Second
report_hardware_health_summary Errorsfm.cisco.sdwan.report_hardware_health_summary.errorIndicates whether an error occurred during report_hardware_health_summaryCount
get_remote_system_cardinality Query Timesfm.cisco.sdwan.get_remote_system_cardinality.duration-Second
get_remote_system_cardinality Errorsfm.cisco.sdwan.get_remote_system_cardinality.errorIndicates whether an error occurred during get_approute_statistics_remote_system_cardinality QueryCount
report_remote_system_cardinality Overall Timesfm.cisco.sdwan.report_remote_system_cardinality.duration-Second
report_remote_system_cardinality Errorsfm.cisco.sdwan.report_remote_system_cardinality.errorIndicates whether an error occurred during report_remote_system_cardinalityCount
get_tunnel_health_overview Query Timesfm.cisco.sdwan.get_tunnel_health_overview.duration-Second
get_tunnel_health_overview Errorsfm.cisco.sdwan.get_tunnel_health_overview.errorIndicates whether an error occurred during get_tunnel_health_overview QueryCount
report_tunnel_health_overview Overall Timesfm.cisco.sdwan.report_tunnel_health_overview.duration-Second
report_tunnel_health_overview Errorsfm.cisco.sdwan.report_tunnel_health_overview.errorIndicates whether an error occurred during report_tunnel_health_overviewCount
get_approute_statistics_aggregation Query Timesfm.cisco.sdwan.get_approute_statistics_aggregation.duration-Second
get_approute_statistics_aggregation Errorsfm.cisco.sdwan.get_approute_statistics_aggregation.errorIndicates whether an error occurred during get_approute_statistics_aggregation QueryCount
report_statistics_approute Overall Timesfm.cisco.sdwan.report_statistics_approute.duration-Second
report_statistics_approute Errorsfm.cisco.sdwan.report_statistics_approute.errorIndicates whether an error occurred during report_statistics_approuteCount
get_devices_health Query Timesfm.cisco.sdwan.get_devices_health.duration-Second
get_devices_health Errorsfm.cisco.sdwan.get_devices_health.errorIndicates whether an error occurred during get_devices_health QueryCount
report_devices_health Overall Timesfm.cisco.sdwan.report_devices_health.duration-Second
report_devices_health Errorsfm.cisco.sdwan.report_devices_health.errorIndicates whether an error occurred during report_devices_healthCount
get_statistics_system_aggregation Query Timesfm.cisco.sdwan.get_statistics_system_aggregation.duration-Second
get_statistics_system_aggregation Errorsfm.cisco.sdwan.get_statistics_system_aggregation.errorIndicates whether an error occurred during get_statistics_system_aggregation QueryCount
get_interface_statistics Query Timesfm.cisco.sdwan.get_interface_statistics.duration-Second
get_interface_statistics Errorsfm.cisco.sdwan.get_interface_statistics.errorIndicates whether an error occurred during get_interface_statistics QueryCount
report_statistics_system Overall Timesfm.cisco.sdwan.report_statistics_system.duration-Second
report_statistics_system Errorsfm.cisco.sdwan.report_statistics_system.errorIndicates whether an error occurred during report_statistics_systemCount
report_statistics_interface Overall Timesfm.cisco.sdwan.report_statistics_interface.duration-Second
report_statistics_interface Errorsfm.cisco.sdwan.report_statistics_interface.errorIndicates whether an error occurred during report_statistics_interfaceCount
Metric nameMetric keyDescriptionUnit
TLOC QoEcisco.sdwan.tloc.vqoe_scoreSD-WAN TLOC QoE Score aggregated as average across all mapped tunnelsUnspecified
TLOC Losscisco.sdwan.tloc.loss_percentageSD-WAN TLOC Loss Percentage aggregated as average across all mapped tunnelsPercent
TLOC Latencycisco.sdwan.tloc.latencySD-WAN TLOC Latency aggregated as average across all mapped tunnelsMilliSecond
TLOC Jittercisco.sdwan.tloc.jitterSD-WAN TLOC Jitter aggregated as average across all mapped tunnelsMilliSecond
TLOC TX Octetscisco.sdwan.tloc.tx_octetsSD-WAN TLOC TX Octets aggregated as sum across all mapped tunnelsByte
TLOC RX Octetscisco.sdwan.tloc.rx_octetsSD-WAN TLOC RX Octets aggregated as sum across all mapped tunnelsByte
TLOC Tunnelscisco.sdwan.tloc.tunnel_count.gaugeSD-WAN TLOC Tunnels determined by the cardinality of the Remote System IPsCount
Metric nameMetric keyDescriptionUnit
Admin Statuscisco.sdwan.interface.admin_statusSD-WAN Interface Admin StatusUnspecified
Oper Statuscisco.sdwan.interface.oper_statusSD-WAN Interface Oper StatusUnspecified
RX Packetscisco.sdwan.interface.rx_pktsSD-WAN Interface Packets RecievedCount
RX Octetscisco.sdwan.interface.rx_octetsSD-WAN Interface Octets RecievedByte
RX Errorscisco.sdwan.interface.rx_errorsSD-WAN Interface RX ErrorsCount
RX Dropscisco.sdwan.interface.rx_dropsSD-WAN Interface RX DropsCount
RX Packets Per Secondcisco.sdwan.interface.rx_ppsSD-WAN Interface Recieved Packets Per SecondPerSecond
RX KiloBit Per Secondcisco.sdwan.interface.rx_kbpsSD-WAN Interface Recieved KiloBit Per SecondKiloBitPerSecond
TX Packetscisco.sdwan.interface.tx_pktsSD-WAN Interface Packets TransmittedCount
TX Octetscisco.sdwan.interface.tx_octetsSD-WAN Interface Octets TransmittedByte
TX Errorscisco.sdwan.interface.tx_errorsSD-WAN Interface TX ErrorsCount
TX Dropscisco.sdwan.interface.tx_dropsSD-WAN Interface TX DropsCount
TX Packets Per Secondcisco.sdwan.interface.tx_ppsSD-WAN Interface Transmitted Packets Per SecondPerSecond
TX KiloBit Per Secondcisco.sdwan.interface.tx_kbpsSD-WAN Interface Transmitted KiloBit Per SecondKiloBitPerSecond
Uplink Capacity Utilizationcisco.sdwan.interface.up_cap_percSD-WAN Interface Uplink Capacity UtilizationPercent
Downlink Capacity Utilizationcisco.sdwan.interface.down_cap_percSD-WAN Interface Downlink Capacity UsagePercent
Metric nameMetric keyDescriptionUnit
Sites Healthcisco.sdwan.fabric_infra.site_health_count.gaugeNumber of Sites per Health CodeCount
Devices Healthcisco.sdwan.fabric_infra.device_health_count.gaugeNumber of Devices per Health CodeCount
Hardware Statuscisco.sdwan.fabric_infra.hardware_summary_count.gaugeNumber of Devices per Hardware Status CodeCount
Inventory Statuscisco.sdwan.fabric_infra.inventory_summary_count.gaugeNumber of Devices per Inventory Status CodeCount
Tunnels Healthcisco.sdwan.fabric_infra.tunnel_health_count.gaugeNumber of Tunnels per Health CodeCount
Site Healthcisco.sdwan.site.site_healthSite Health Code Value (1 - Good, 3 - Fair, 5 - Poor)Unspecified
Site's Devices Healthcisco.sdwan.site.devices_healthSite's Devices Health Code Value (1 - Good, 3 - Fair, 5 - Poor)Unspecified
Site's Tunnels Healthcisco.sdwan.site.tunnels_healthSite's Tunnels Health Code Value (1 - Good, 3 - Fair, 5 - Poor)Unspecified
Site's Apps Usagecisco.sdwan.site.apps_usageSite's Apps UsageByte
Metric nameMetric keyDescriptionUnit
CPU Loadcisco.sdwan.device.cpu_loadSD-WAN Device CPU LoadPercent
Memory Utilizationcisco.sdwan.device.memory_utilizationSD-WAN Device Memory UtilizationPercent
Device Healthcisco.sdwan.device.healthSD-WAN Device Health Code Value (1 - green, 3 - yellow, 5 - red)Unspecified
Device Reachabilitycisco.sdwan.device.reachabilitySD-WAN Device Reachability Code Value (1 - reachable, 0 - unreachable)Unspecified
Device QoEcisco.sdwan.device.qoeSD-WAN Device QoE ScoreUnspecified
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.cpu_usage--
-com.dynatrace.extension.network_device.memory_usage--
-com.dynatrace.extension.network_device.sysuptime--
-com.dynatrace.extension.network_device.memory_used--
-com.dynatrace.extension.network_device.memory_free--
-com.dynatrace.extension.network_device.if.status--
-com.dynatrace.extension.network_device.if.bytes_in.count--
-com.dynatrace.extension.network_device.if.bytes_out.count--
-com.dynatrace.extension.network_device.if.in.errors.count--
-com.dynatrace.extension.network_device.if.out.errors.count--
-com.dynatrace.extension.network_device.if.in.discards.count--
-com.dynatrace.extension.network_device.if.out.discards.count--

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

This is the first release of the Cisco SD-WAN extension. Looking forward to your feedback on the Dynatrace Community.
