Remote Windows Host MonitoringRemote Windows Host Monitoring
Remote Windows Host Monitoring

Remote Windows Host Monitoring

Monitor health and performance of Windows Hosts without installing an agent.

Extension
Free trialDocumentation
  • Product information
  • Release notes

Overview

This extension leverages the WMI protocol to collect data from Windows hosts, without the need for any agent. This enables agent-less, remote monitoring while providing the same transparency and visibility of Windows hosts as otherwise only offered with a OneAgent installation.

This is intended for users, who:

  • Want to monitor Microsoft Windows hosts
  • Can’t install an agent on the host

This enables you to:

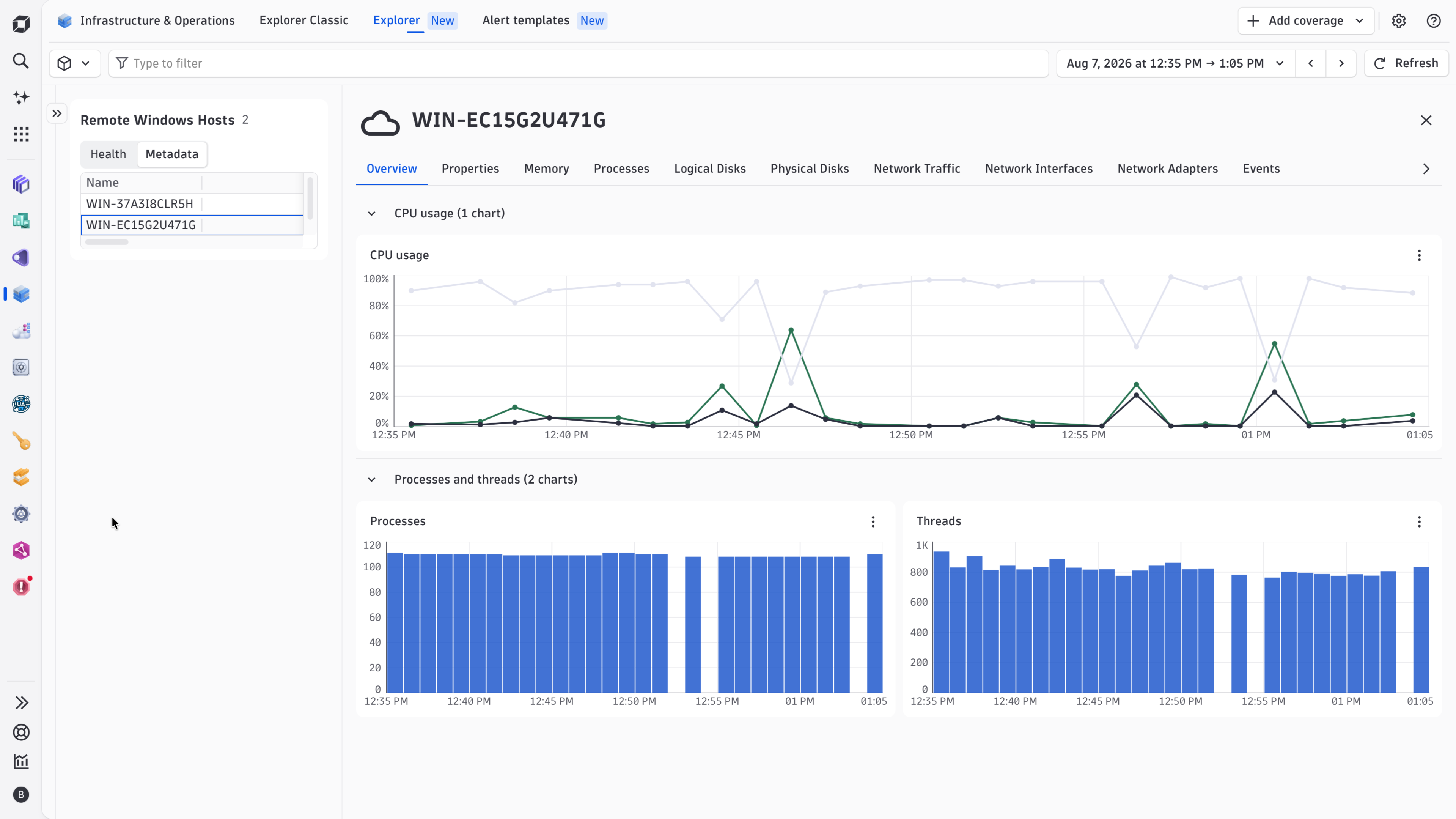

  • Remotely monitor windows host
  • Collect all relevant data like:
    • CPU and memory utilization

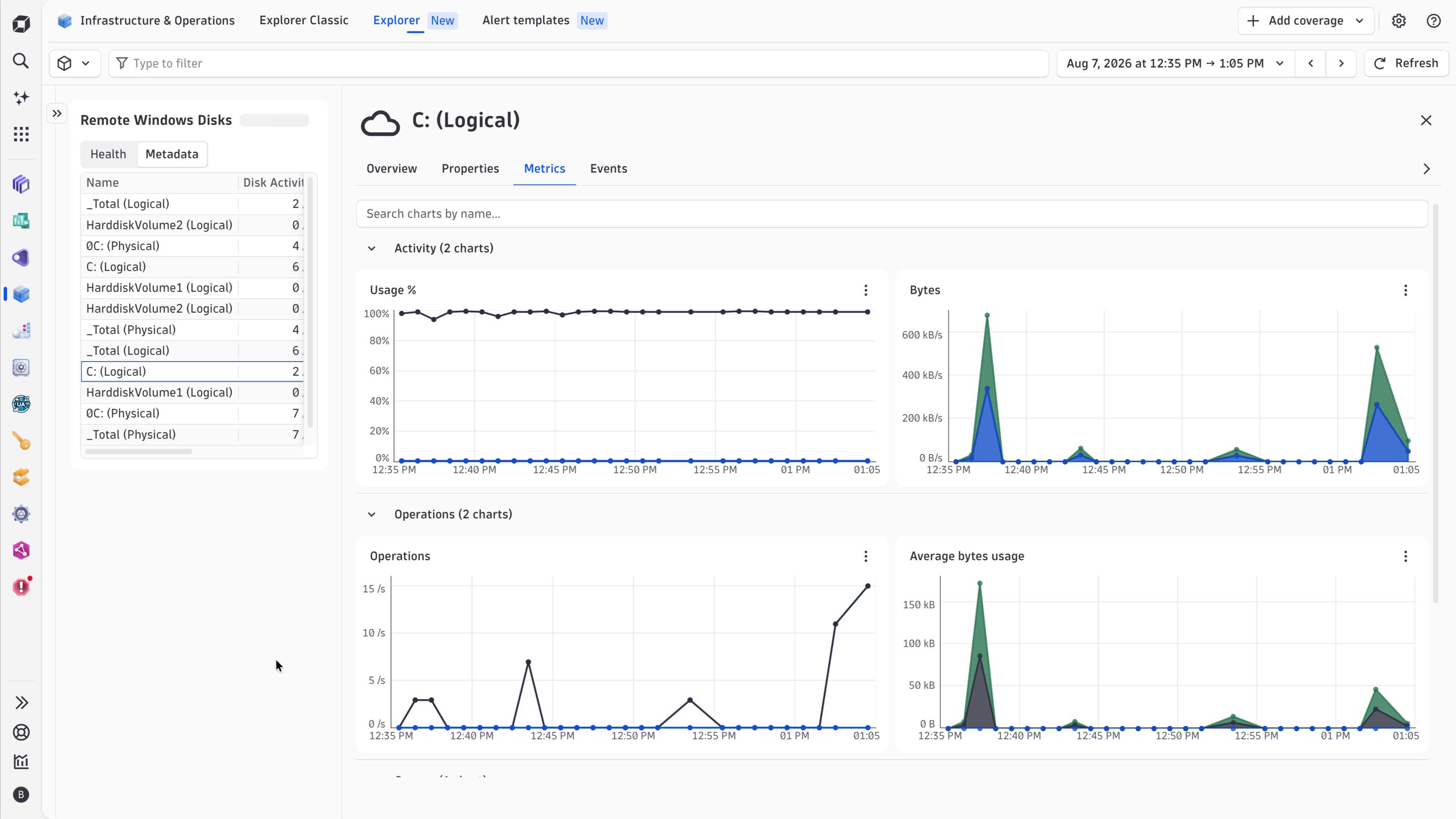

    • I/O operations and disk usage

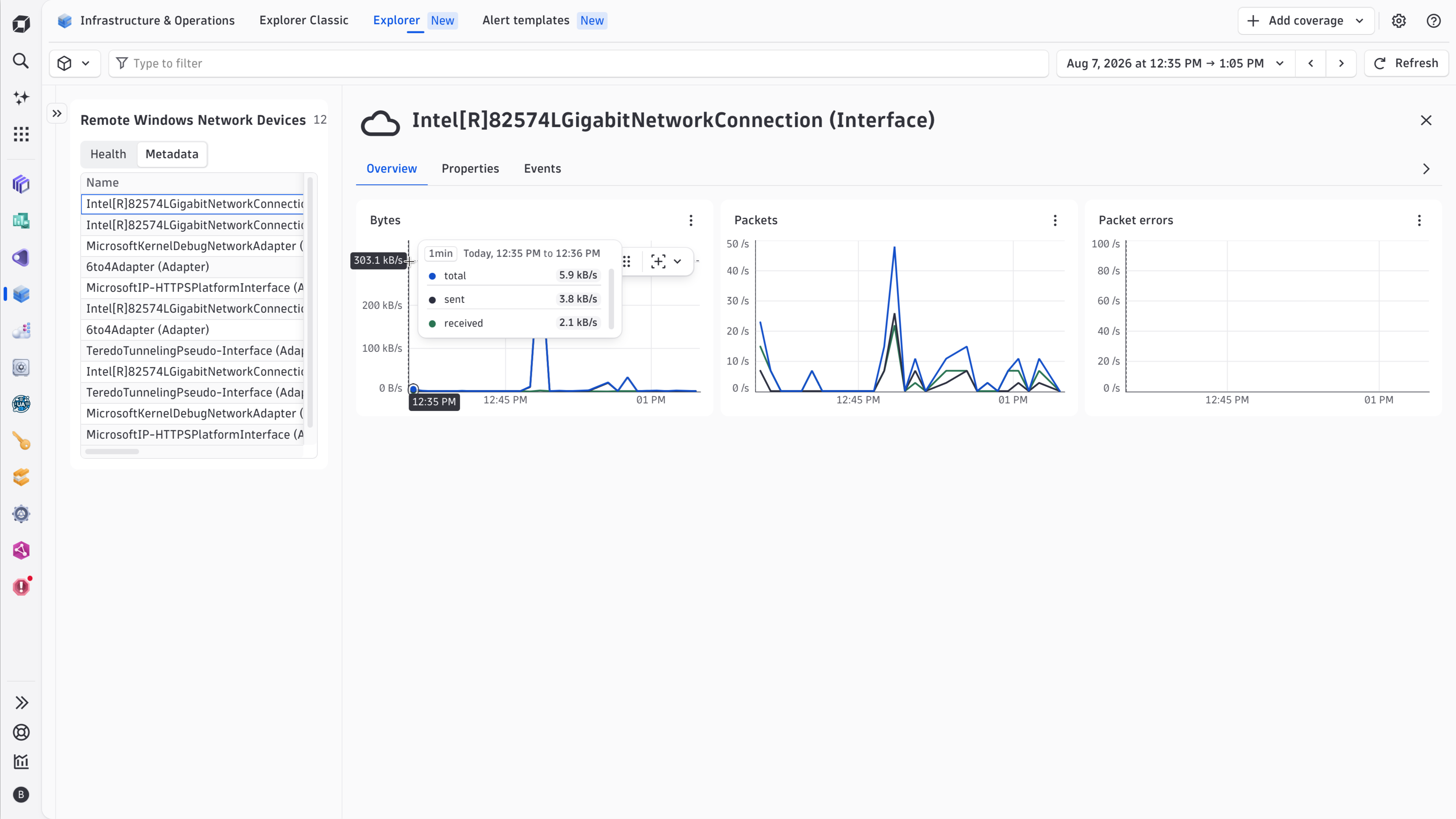

    • Network interface and traffic statistics
    • Details of processes and network services running

Supported Distributions

  • All versions of Windows supported by Microsoft
  • Successfully tested on older version of Windows and will provide best effort support for older OS's
Dynatrace
DocumentationMore Information
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen chart groups
12
screen layout
3
metric metadata
83
generic relationship
2

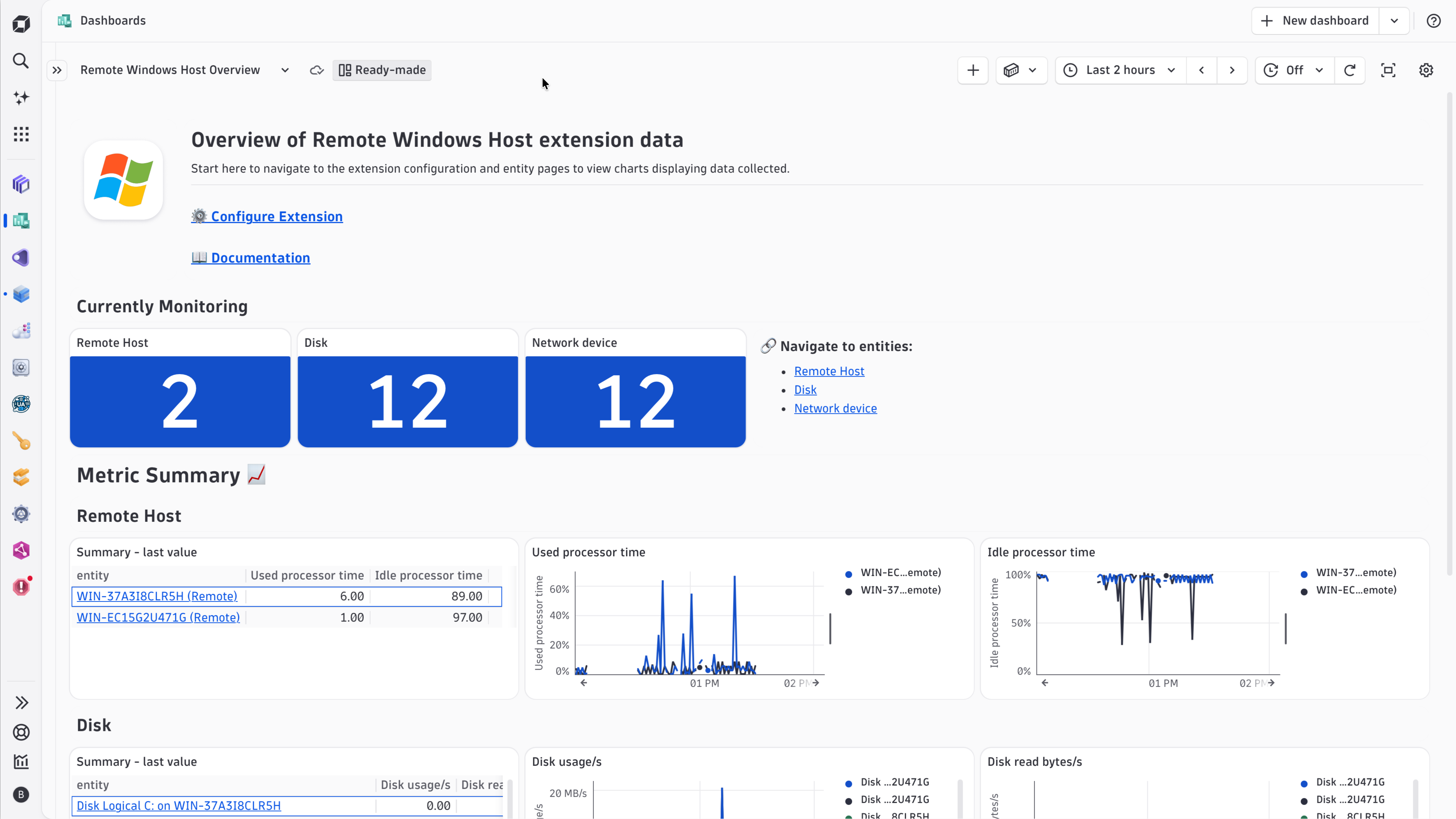

dashboards
1
screen entities lists
5
screen properties
3
generic type
3
list screen layout
1
alerts
6
metric query
3

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
Used processor timecom.dynatrace.extension.host-observability.host.cpu.time.processorPercent of used processor timePercent
Idle processor timecom.dynatrace.extension.host-observability.host.cpu.time.idlePercent of idle processor timePercent
User processor timecom.dynatrace.extension.host-observability.host.cpu.time.userPercent of user processor timePercent
Available memory sizecom.dynatrace.extension.host-observability.host.memory.bytes.available-Byte
Commited memory sizecom.dynatrace.extension.host-observability.host.memory.bytes.commitedCommitted Bytes is the amount of committed virtual memory, in bytes.Byte
Used commited memorycom.dynatrace.extension.host-observability.host.memory.bytes.commited.inusePercentage of using commited memoryPercent
Commit limitcom.dynatrace.extension.host-observability.host.PerfOS_Memory.CommitLimitCommit Limit is the amount of virtual memory that can be committed without having to extend the paging file(s)Byte
Free and Zero page list bytescom.dynatrace.extension.host-observability.host.PerfOS_Memory.FreeAndZeroPageListBytesFree & Zero Page List Bytes is the amount of physical memory, in bytes, that is assigned to the free and zero page lists. This memory does not contain cached data. It is immediately available for allocation to a process or for system use.Byte
Free system page table entriescom.dynatrace.extension.host-observability.host.PerfOS_Memory.FreeSystemPageTableEntriesFree System Page Table Entries is the number of page table entries not currently in used by the system. This counter displays the last observed value only; it is not an average.Count
Long-Term average standby cache lifetimecom.dynatrace.extension.host-observability.host.PerfOS_Memory.LongTermAverageStandbyCacheLifetimesLong-Term Average Standby Cache Lifetime, in seconds.Second
Pages input per secondcom.dynatrace.extension.host-observability.host.PerfOS_Memory.PagesInputPersecPages Input/sec is the rate at which pages are read from disk to resolve hard page faults. Hard page faults occur when a process refers to a page in virtual memory that is not in its working set or elsewhere in physical memory, and must be retrieved from disk.PerSecond
Pages output per secondcom.dynatrace.extension.host-observability.host.PerfOS_Memory.PagesOutputPersecPages Output/sec is the rate at which pages are written to disk to free up space in physical memory. Pages are written back to disk only if they are changed in physical memory, so they are likely to hold data, not code.PerSecond
Pages per secondcom.dynatrace.extension.host-observability.host.PerfOS_Memory.PagesPersecPages/sec is the rate at which pages are read from or written to disk to resolve hard page faults. This counter is a primary indicator of the kinds of faults that cause system-wide delays.PerSecond
System cache resident bytescom.dynatrace.extension.host-observability.host.PerfOS_Memory.SystemCacheResidentBytesSystem Cache Resident Bytes is the size, in bytes, of the portion of the system file cache which is currently resident and active in physical memory.Byte
Transition pages repurposed per secondcom.dynatrace.extension.host-observability.host.PerfOS_Memory.TransitionPagesRePurposedPersecTransition Pages RePurposed is the rate at which the number of transition cache pages were reused for a different purpose.PerSecond
Processescom.dynatrace.extension.host-observability.host.processesNumber of processesCount
Threadscom.dynatrace.extension.host-observability.host.threadsNumber of threadsCount
Disk usage/scom.dynatrace.extension.host-observability.disk.bytes.persecDisk bytes used per secondBytePerSecond
Disk read bytes/scom.dynatrace.extension.host-observability.disk.bytes.read.persecDisk bytes read per secondBytePerSecond
Disk reads/scom.dynatrace.extension.host-observability.disk.read.persecNumber of disk reads per secondPerSecond
Disk write bytes/scom.dynatrace.extension.host-observability.disk.bytes.write.persecDisk bytes write per secondBytePerSecond
Disk writes/scom.dynatrace.extension.host-observability.disk.write.persecNumber of disk writes per secondPerSecond
Disk transfers/scom.dynatrace.extension.host-observability.disk.transfer.persecNumber of disk transfers per secondPerSecond
Disk timecom.dynatrace.extension.host-observability.disk.usage.percentPercent of disk timePercent
Disk read timecom.dynatrace.extension.host-observability.disk.usage.read.percentPercent of disk read timePercent
Disk write timecom.dynatrace.extension.host-observability.disk.usage.write.percentPercent of disk write timePercent
Disk idle timecom.dynatrace.extension.host-observability.disk.usage.idle.percentPercent of disk idle timePercent
Disk read bytescom.dynatrace.extension.host-observability.disk.read.avg.bytesAverage bytes per disk readByte
Disk write bytescom.dynatrace.extension.host-observability.disk.write.avg.bytesAverage bytes per disk writeByte
Disk transfer bytescom.dynatrace.extension.host-observability.disk.transfer.avg.bytesAverage bytes per disk transferByte
Disk read queuecom.dynatrace.extension.host-observability.disk.queue.avg.readAverage length of disk read queueCount
Disk write queuecom.dynatrace.extension.host-observability.disk.queue.avg.writeAverage length of disk write queueCount
Disk availablecom.dynatrace.extension.host-observability.disk.logical.free.megabytesDisk availableMegaByte
Disk available %com.dynatrace.extension.host-observability.disk.logical.free.percentDisk available %Percent
Metric nameMetric keyDescriptionUnit
Disk usage/scom.dynatrace.extension.host-observability.disk.bytes.persecDisk bytes used per secondBytePerSecond
Disk read bytes/scom.dynatrace.extension.host-observability.disk.bytes.read.persecDisk bytes read per secondBytePerSecond
Disk reads/scom.dynatrace.extension.host-observability.disk.read.persecNumber of disk reads per secondPerSecond
Disk write bytes/scom.dynatrace.extension.host-observability.disk.bytes.write.persecDisk bytes write per secondBytePerSecond
Disk writes/scom.dynatrace.extension.host-observability.disk.write.persecNumber of disk writes per secondPerSecond
Disk transfers/scom.dynatrace.extension.host-observability.disk.transfer.persecNumber of disk transfers per secondPerSecond
Disk timecom.dynatrace.extension.host-observability.disk.usage.percentPercent of disk timePercent
Disk read timecom.dynatrace.extension.host-observability.disk.usage.read.percentPercent of disk read timePercent
Disk write timecom.dynatrace.extension.host-observability.disk.usage.write.percentPercent of disk write timePercent
Disk idle timecom.dynatrace.extension.host-observability.disk.usage.idle.percentPercent of disk idle timePercent
Disk read bytescom.dynatrace.extension.host-observability.disk.read.avg.bytesAverage bytes per disk readByte
Disk write bytescom.dynatrace.extension.host-observability.disk.write.avg.bytesAverage bytes per disk writeByte
Disk transfer bytescom.dynatrace.extension.host-observability.disk.transfer.avg.bytesAverage bytes per disk transferByte
Disk read queuecom.dynatrace.extension.host-observability.disk.queue.avg.readAverage length of disk read queueCount
Disk write queuecom.dynatrace.extension.host-observability.disk.queue.avg.writeAverage length of disk write queueCount
Metric nameMetric keyDescriptionUnit
Active TCP connectionscom.dynatrace.extension.host-observability.network.tcp.connections.active.countNumber of active TCP connectionsCount
Established TCP connectionscom.dynatrace.extension.host-observability.network.tcp.connections.established.countNumber of established TCP connectionsCount
Failed TCP connectionscom.dynatrace.extension.host-observability.network.tcp.connections.failures.countNumber of failed TCP connectionsCount
Passive TCP connectionscom.dynatrace.extension.host-observability.network.tcp.connections.passive.countNumber of passive TCP connectionsCount
TCP connection resetscom.dynatrace.extension.host-observability.network.tcp.connections.resets.countNumber of TCP connection resetsCount
TCP segments/scom.dynatrace.extension.host-observability.network.tcp.segments.persecNumber of TCP segments per secondPerSecond
TCP segments received/scom.dynatrace.extension.host-observability.network.tcp.segments.received.persecNumber of received TCP segments per secondPerSecond
TCP segments sent/scom.dynatrace.extension.host-observability.network.tcp.segments.sent.persecNumber of sent TCP segments per secondPerSecond
TCP segments transmitted/scom.dynatrace.extension.host-observability.network.tcp.segments.transmitted.persecNumber of transmitted TCP segments per secondPerSecond
Metric nameMetric keyDescriptionUnit
UDP datagrams/scom.dynatrace.extension.host-observability.network.udp.datagrams.persecNumber of UDP datagrams per secondPerSecond
UDP datagrams received/scom.dynatrace.extension.host-observability.network.udp.datagrams.received.persecNumber of received UDP datagrams per secondPerSecond
UDP Received invalid datagramscom.dynatrace.extension.host-observability.network.udp.datagrams.received.errors.countNumber of received invalid UDP datagramsCount
UDP datagrams sent/scom.dynatrace.extension.host-observability.network.udp.datagrams.sent.persecNumber of sent UDP datagrams per secondPerSecond
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.host-observability.disk.secper.read.count--
-com.dynatrace.extension.host-observability.disk.secper.read_base.count--
-com.dynatrace.extension.host-observability.disk.secper.transfer.count--
-com.dynatrace.extension.host-observability.disk.secper.transfer_base.count--
-com.dynatrace.extension.host-observability.disk.secper.write.count--
-com.dynatrace.extension.host-observability.disk.secper.write_base.count--
-com.dynatrace.extension.host-observability.disk.frequency_perftime--
Metric nameMetric keyDescriptionUnit
Non-paged memory sizecom.dynatrace.extension.host-observability.host.memory.pool.nonpagedPool Nonpaged Bytes is the size, in bytes, of the nonpaged pool, an area of the system virtual memory that is used for objects that cannot be written to disk, but must remain in physical memory as long as they are allocated.Byte
Paged memory sizecom.dynatrace.extension.host-observability.host.memory.pool.paged-Byte
Page faults per secondcom.dynatrace.extension.host-observability.host.memory.pagefaults.persecNumber of page faults per secondPerSecond
Pool paged resident bytescom.dynatrace.extension.host-observability.host.PerfOS_Memory.PoolPagedResidentBytesPool Paged Resident Bytes is the size, in bytes, of the portion of the paged pool that is currently resident and active in physical memory.Byte
Allocated for swap memorycom.dynatrace.extension.host-observability.host.swap.allocatedAllocated disk space for swap memoryMegaByte
-com.dynatrace.extension.host-observability.host.swap.current--
Swap memory usedcom.dynatrace.extension.host-observability.host.swap.peakDisk space used by swap memoryMegaByte
Total swap memorycom.dynatrace.extension.host-observability.host.swap.totalTotal kilobytes that can be stored in the operating system paging filesKiloByte
Available swap memorycom.dynatrace.extension.host-observability.host.swap.availableNumber, in kilobytes, that can be mapped into the paging files without causing any other pages to be swapped outKiloByte
Metric nameMetric keyDescriptionUnit
Traffic bytes/scom.dynatrace.extension.host-observability.network.bytes.persecNetwork traffic bytes per secondBytePerSecond
Traffic received bytes/scom.dynatrace.extension.host-observability.network.bytes.received.persecNetwork traffic received bytes per secondBytePerSecond
Traffic sent bytes/scom.dynatrace.extension.host-observability.network.bytes.sent.persecNetwork traffic sent bytes per secondBytePerSecond
Traffic packets/scom.dynatrace.extension.host-observability.network.packets.persecNetwork traffic packets per secondPerSecond
Traffic packets received/scom.dynatrace.extension.host-observability.network.packets.received.persecNetwork traffic received packets per secondPerSecond
Traffic packets discarded/scom.dynatrace.extension.host-observability.network.packets.received.discarded.persecNetwork traffic discarded received packets per secondPerSecond
Traffic packets error/scom.dynatrace.extension.host-observability.network.packets.received.errors.persecNetwork traffic error received packets per secondPerSecond
Traffic packets unknown/scom.dynatrace.extension.host-observability.network.packets.received.unknown.persecNetwork traffic unknown received packets per secondPerSecond
Traffic packets sent/scom.dynatrace.extension.host-observability.network.packets.sent.persec-PerSecond
Metric nameMetric keyDescriptionUnit
Traffic bytes/scom.dynatrace.extension.host-observability.network.bytes.persecNetwork traffic bytes per secondBytePerSecond
Traffic received bytes/scom.dynatrace.extension.host-observability.network.bytes.received.persecNetwork traffic received bytes per secondBytePerSecond
Traffic sent bytes/scom.dynatrace.extension.host-observability.network.bytes.sent.persecNetwork traffic sent bytes per secondBytePerSecond
Traffic packets/scom.dynatrace.extension.host-observability.network.packets.persecNetwork traffic packets per secondPerSecond
Traffic packets received/scom.dynatrace.extension.host-observability.network.packets.received.persecNetwork traffic received packets per secondPerSecond
Traffic packets discarded/scom.dynatrace.extension.host-observability.network.packets.received.discarded.persecNetwork traffic discarded received packets per secondPerSecond
Traffic packets error/scom.dynatrace.extension.host-observability.network.packets.received.errors.persecNetwork traffic error received packets per secondPerSecond
Traffic packets unknown/scom.dynatrace.extension.host-observability.network.packets.received.unknown.persecNetwork traffic unknown received packets per secondPerSecond
Traffic packets sent/scom.dynatrace.extension.host-observability.network.packets.sent.persec-PerSecond
Metric nameMetric keyDescriptionUnit
Handle countcom.dynatrace.extension.host-observability.process.PerfProc_Process.HandleCountThe total number of handles currently open by this process.Count
IO data operations per secondcom.dynatrace.extension.host-observability.process.PerfProc_Process.IODataOperationsPersecThe rate at which the process is issuing read and write I/O operations.PerSecond
IO other operations per secondcom.dynatrace.extension.host-observability.process.PerfProc_Process.IOOtherOperationsPersecThe rate at which the process is issuing I/O operations that are neither read nor write operations (for example, a control function).PerSecond
IO read operations per secondcom.dynatrace.extension.host-observability.process.PerfProc_Process.IOReadOperationsPersecThe rate at which the process is issuing read I/O operations.PerSecond
IO write operations per secondcom.dynatrace.extension.host-observability.process.PerfProc_Process.IOWriteOperationsPersecThe rate at which the process is issuing write I/O operations.PerSecond
Percent privileged timecom.dynatrace.extension.host-observability.process.PerfProc_Process.PercentPrivilegedTimePercent Privileged Time is the percentage of elapsed time that the process threads spent executing code in privileged mode.Percent
Percent processor timecom.dynatrace.extension.host-observability.process.PerfProc_Process.PercentProcessorTimePercent Processor Time is the percentage of elapsed time that all of process threads used the processor to execution instructions.Percent
Private bytescom.dynatrace.extension.host-observability.process.PerfProc_Process.PrivateBytesPrivate Bytes is the current size, in bytes, of memory that this process has allocated that cannot be shared with other processes.Byte
Thread countcom.dynatrace.extension.host-observability.process.PerfProc_Process.ThreadCountThe number of threads currently active in this process.Count
Virtual bytescom.dynatrace.extension.host-observability.process.PerfProc_Process.VirtualBytesVirtual Bytes is the current size, in bytes, of the virtual address space the process is using.Byte
Working setcom.dynatrace.extension.host-observability.process.PerfProc_Process.WorkingSetWorking Set is the current size, in bytes, of the Working Set of this process.Byte
Pool non paged bytescom.dynatrace.extension.host-observability.process.PerfProc_Process.PoolNonpagedBytesPool Nonpaged Bytes is the size, in bytes, of the nonpaged pool, an area of the system virtual memory that is used for objects that cannot be written to disk, but must remain in physical memory as long as they are allocated.Byte
Pool paged bytescom.dynatrace.extension.host-observability.process.PerfProc_Process.PoolPagedBytesPool Paged Bytes is the size, in bytes, of the paged pool, an area of the system virtual memory that is used for objects that can be written to disk when they are not being used.Byte

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

New in this version:

  • dt.security_context is applied to extension topology.

Full version history

v.1.3.12

✏️ Changes

  • Modify title for Physical and Logical disk metric cards on Host UA Screen for consistency with disk detail UA screen cards

Full version history

v.1.3.11

✏️ Changes

  • Updated display name of logical disk metrics related to free disk space to better align with OneAgent metric counterparts
    • com.dynatrace.extension.host-observability.disk.logical.free.megabytes
      • Display name: Free disk memory -> Disk available
    • com.dynatrace.extension.host-observability.disk.logical.free.percent
      • Display name: Free disk memory % -> Disk available %

✨ New Features

  • Add logical disk usage metrics to UA Screens
  • Added "Configure extension" link to dashboard

Full version history

  • Divided the Network FeatureSet to Network Interface and Network Adapters. Network Adapters is supported on versions of Windows greater than 2008.

Full version history

🐛Bug Fixes

  • Fixed topology for remote hosts

✨ Improvements

  • Improvements to dashboard

Full version history

Version 1.2.1 of this extension raises the minDynatraceVersion to 1.233

✨ New Features

  • New dashboard
  • New swap metrics

🐛Bug Fixes

  • Corrected units for memory/swap metrics

💄UI Improvements

  • Added host property to disk and network device
  • Added metrics to host overview list UA screen
  • Renamed entities with human readable host name

Updated icons Updated UA screens with breadcrumbs

Dynatrace Hub
Get data into DynatraceBuild your own app
All (811)Log Management and AnalyticsKubernetesAI and LLM ObservabilityInfrastructure ObservabilitySoftware DeliveryApplication ObservabilityApplication SecurityDigital ExperienceBusiness Observability
Filter
Type
Built and maintained by
Deployment model
SaaS
  • SaaS
  • Managed
Partner FinderBecome a partnerDynatrace Developer

Discover recent additions to Dynatrace

Problems logo

Problems

Analyze abnormal system behavior and performance problems detected by Davis AI.

Logs logo

Logs

Explore all your logs without writing a single query.

Security Investigator logo

Security Investigator

Fast and precise forensics for security and logs on Grail data with DQL queries.

Business Flow logo

Business Flow

Track, analyze, and optimize your critical business processes.

Cost & Carbon Optimization logo

Cost & Carbon Optimization

Track, analyze, and optimize your IT carbon footprint and public cloud costs.

Davis Anomaly Detection logo

Davis Anomaly Detection

Detect anomalies in timeseries using the Davis AI

Analyze your data

Understand your data better with deep insights and clear visualizations.

Notebooks logo

Notebooks

Create powerful, data-driven documents for custom analytics and collaboration.

Dashboards logo

Dashboards

Transform complex data into clear visualizations with custom dashboards.

Automate your processes

Turn data and answers into actions, securely, and at scale.

Workflows logo

Workflows

Automate tasks in your IT landscape, remediate problems, and visualize processes

Jira logo

Jira

Create, query, comment, transition, and resolve Jira tickets within workflows.

Slack logo

Slack

Automate Slack messaging for security incidents, attacks, remediation, and more.

Secure your cloud application

See vulnerabilities and attacks in your environment.

Security Overview logo

Security Overview

Get a comprehensive overview of the security of your applications.

Code-Level Vulnerabilities logo

Code-Level Vulnerabilities

Detect vulnerabilities in your code in real time.

Security Posture Management logo

Security Posture Management

Detect, prioritize, and remediate security and compliance findings with SPM.

Threats & Exploits logo

Threats & Exploits

Understand, triage, and investigate detection findings and alerts.

Are you looking for something different?

We have hundreds of apps, extensions, and other technologies to customize your environment

Leverage our newest innovations of Dynatrace Saas

Kick-start your app creation

Kick-start your app creation

Whether you’re a beginner or a pro, Dynatrace Developer has the tools and support you need to create incredible apps with minimal effort.
Go to Dynatrace Developer
Upgrading from Dynatrace Managed to SaaS

Upgrading from Dynatrace Managed to SaaS

Drive innovation, speed, and agility in your organization by seamlessly and securely upgrading.
Learn More
Log Management and Analytics

Log Management and Analytics

Innovate faster and more efficiently with unified log management and log analytics for actionable insights and automation.
Learn more
