InterSystems IRIS (Remote)

InterSystems IRIS (Remote)

2.0 remote extension that collects data from the InterSystems IRIS APIs.

Extension

Free trial Documentation

Product information
Release notes

Overview

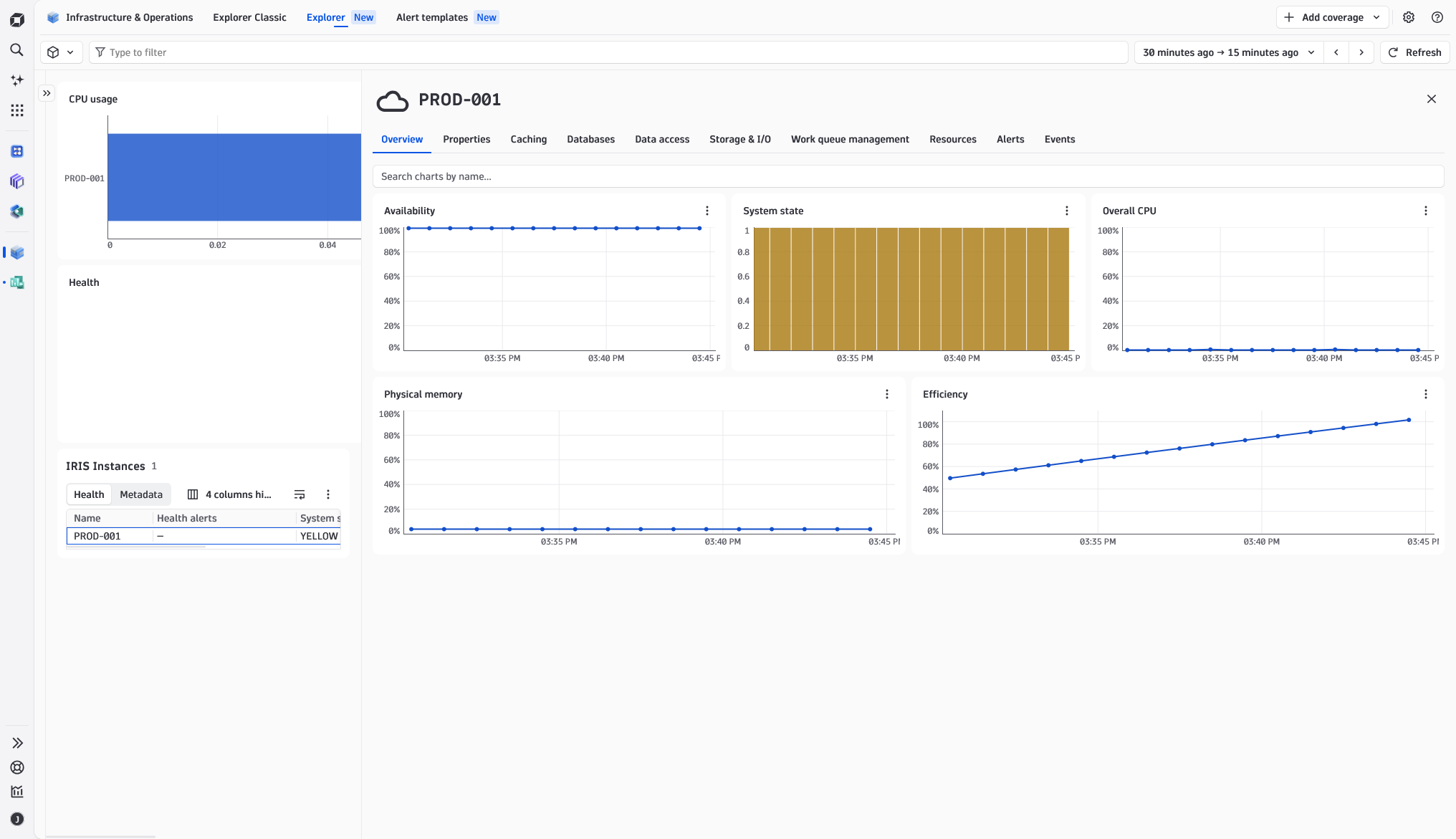

Gain insights into the performance of your InterSystems IRIS instances. View metrics and events in context with your OneAgent collected data in the Dynatrace UI. Make use of powerful charting and dashboarding features. Allow the Davis® AI causation engine to generate baselines and alert you when anomalies are detected in designated metrics.

Compatibility information

Connects to and collects data from the InterSystems IRIS REST API.

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

screen logs cards

2

screen metric tables

3

screen properties

1

screen layout

2

metric metadata

96

document dashboard

1

dashboards

1

list screen layout

1

generic type

1

screen entities lists

1

screen dql table

3

screen chart groups

24

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Current ECP active client connections	iris_ecp_conn	Total number of active client connections on this ECP application server	Count
Max client connections from this ECP app server	iris_ecp_conn_max	Maximum active client connections from this ECP application server	Count
Synchronized ECP servers	iris_ecp_connections	Number of servers synchronized when this ECP application server synchronizes with its configured ECP data servers	Count
ECP server latency	iris_ecp_latency	Latency between the ECP application server and the ECP data server	MilliSecond
ECP active client connections rate	iris_ecps_conn	Total active client connections to this ECP data server per second	PerSecond
Max client connections to this ECP data server	iris_ecps_conn_max	Maximum active client connections to this ECP data server	Count

Metric name	Metric key	Description	Unit
Asiezes on object resource rate	iris_obj_a_seize_per_sec	Number of Aseizes on the object resource per second	PerSecond
Objects deleted rate	iris_obj_del_per_sec	Number of objects deleted per second	PerSecond
Objects referenced rate	iris_obj_hit_per_sec	Number of object references per second, in process memory	PerSecond
Objects loaded from disk rate	iris_obj_load_per_sec	Number of objects loaded from disk per second, not in shared memory	PerSecond
Object references not found in mem rate	iris_obj_miss_per_sec	Number of object references not found in memory per second	PerSecond
Initialized objects rate	iris_obj_new_per_sec	Number of objects initialized per second	PerSecond
Siezes on object resource rate	iris_obj_seize_per_sec	Number of seizes on the object resource per second	PerSecond

Metric name	Metric key	Description	Unit
WIJ physical block writes per second	iris_wij_writes_per_sec	WIJ physical block writes per second	Count

Metric name	Metric key	Description	Unit
Asiezes on routine resource rate	iris_rtn_a_seize_per_sec	Number of Aseizes on the routine resource per second	PerSecond
Routine calls to globals on remote DBs rate	iris_rtn_call_local_per_sec	Number of local routine calls per second to globals located on remote databases per second	PerSecond
Routine call memory misses rate	iris_rtn_call_miss_per_sec	Number of routines calls not found in memory per second	PerSecond
Remote routine calls rate	iris_rtn_call_remote_per_sec	Number of remote routine calls per second	PerSecond
Routines locally loaded or saved to disk rate	iris_rtn_load_per_sec	Number of routines locally loaded from or saved to disk per second	PerSecond
Routines remotely loaded or saved to disk rate	iris_rtn_load_rem_per_sec	Number of routines remotely loaded from or saved to disk per second	PerSecond
Seizes on the routine resource rate	iris_rtn_seize_per_sec	Number of seizes on the routine resource per second	PerSecond

Metric name	Metric key	Description	Unit
IRIS availability	iris_availability	The availability of the configured API as seen by the extension	Percent
CPU percent used	iris_cpu_pct	Percent of CPU usage by InterSystems IRIS process type	Percent
CPU overall usage	iris_cpu_usage	Percent of CPU usage for all programs on the operating system	Percent
Physical memory used	iris_phys_mem_percent_used	Percent of physical memory (RAM) currently in use	Percent
Percent used of max page file space	iris_page_space_percent_used	Percent of maximum allocated page file space used	Percent
Physical database blocks read from disk rate	iris_phys_reads_per_sec	Physical database blocks read from disk per second	PerSecond
Physical database blocks written to disk rate	iris_phys_writes_per_sec	Physical database blocks written to disk per second	PerSecond
Active IRIS process count	iris_process_count.gauge	Total number of active InterSystems IRIS processes	Count
System state	iris_system_state	Current reported system state (GREEN, RED, YELLOW, or HUNG)	Count
Open transactions	iris_trans_open_count.gauge	Number of open transactions on the current instance	Count
Average duration of open transactions	iris_trans_open_secs	Average duration of open transactions on the current instance	Second
Longest open transaction duration	iris_trans_open_secs_max	Duration of longest currently open transaction on the current instance	Second
IRIS cache efficiency	iris_cache_efficiency	Ratio of global references to physical reads and writes, as a percent	Percent

Metric name	Metric key	Description	Unit
Shared memory available by purpose	iris_smh_available	Shared memory available by purpose	KiloByte
Shared memory full percentage by purpose	iris_smh_percent_full	Percent of allocated shared memory in use by purpose	Percent
Instance total shared memory allocated	iris_smh_total	Shared memory allocated for current instance	KiloByte
Instance shared memory in use percentage	iris_smh_total_percent_full	Percent of allocated shared memory in use for current instance	Percent
Shared memory percentage used by purpose	iris_smh_used	Shared memory in use by purpose	Percent

Metric name	Metric key	Description	Unit
Amount to expand database	iris_db_expansion_size_mb	Amount by which to expand database	MegaByte
Free space	iris_db_free_space	Free space available in database (updated once per day)	MegaByte
IRIS DB latency	iris_db_latency	Amount of time to complete a random read from database	MilliSecond
Database max size	iris_db_max_size_mb	Maximum size to which database can grow	MegaByte
Database size	iris_db_size_mb	Size of database	MegaByte
Database directory space free	iris_directory_space	Free space available on the database directory’s storage volume	MegaByte
IRIS disk percent full	iris_disk_percent_full	Percent of space filled on the database directory’s storage volume	Percent

Metric name	Metric key	Description	Unit
Journal block write rate	iris_jrn_block_per_sec	Journal blocks written to disk per second	PerSecond
Journal entries per second	iris_jrn_entry_per_sec	Journal entries per second	PerSecond
Free space on journal directory	iris_jrn_free_space	Free space available on each journal directory's storage volume, in megabytes	MegaByte
Journal file size	iris_jrn_size	Current size of each journal file, in megabytes	MegaByte

Metric name	Metric key	Description	Unit
DB buffers written in current cycle and also prior	iris_wd_buffer_redirty	Number of database buffers the write daemon wrote during the most recent cycle that were also written in prior cycle	Count
DB buffers written in recent cycle	iris_wd_buffer_write	Number of database buffers the write daemon wrote during its most recent cycle	Count
Write daemon cycle completion time	iris_wd_cycle_time	Amount of time the most recent write daemon cycle took to complete	MilliSecond
Processes holding global buffers	iris_wd_proc_in_global	Number of processes actively holding global buffers at start of the most recent write daemon cycle	Count
Size of database buffers written in recent cycle	iris_wd_size_write	Size of database buffers the write daemon wrote during its most recent cycle	KiloByte
Write daemon inactive time before cycle	iris_wd_sleep	Amount of time that the write daemon was inactive before its most recent cycle began	MilliSecond
In-memory buffers used	iris_wd_temp_queue	Number of in-memory buffers the write daemon used at the start of its most recent cycle	Count
In-memory buffers written	iris_wd_temp_write	Number of in-memory buffers the write daemon wrote during its most recent cycle	Count
Time writing to WIJ file	iris_wdwij_time	Amount of time the write daemon spent writing to the WIJ file during its most recent cycle	MilliSecond
Time writing buffers to DBs	iris_wd_write_time	Amount of time the write daemon spent writing buffers to databases during its most recent cycle	MilliSecond

Metric name	Metric key	Description	Unit
Alerts posted to messages log	iris_system_alerts.count	The number of alerts posted to the messages log	Count
New system alerts available	iris_system_alerts_new	Whether new alerts are available on the /api/monitor/alerts endpoint	Count

Metric name	Metric key	Description	Unit
Web requests	iris_csp_activity.count	Number of web requests served by the Web Gateway Server	Count
Current web server gateway connections	iris_csp_actual_connections	Number of current connections to this server by the Web Gateway Server	Count
Current connections processing a request	iris_csp_in_use_connections	Number of current connections to this server by the Web Gateway Server that are processing a web request	Count
Connections reserved for state-aware apps	iris_csp_private_connections	Number of current connections to this server by the Web Gateway Server that are reserved for state-aware applications (Preserve mode 1)	Count
Web gateway server latency	iris_csp_gateway_latency	Amount of time to obtain a response from the Web Gateway Server when fetching iris_csp_ metrics	MilliSecond
Active web sessions	iris_csp_sessions	Number of currently active web session IDs on this server	Count

Metric name	Metric key	Description	Unit
Average running worker jobs	iris_wqm_active_worker_jobs	Average number of worker jobs running logic that are not blocked	Count
Average commands in WQM category rate	iris_wqm_commands_per_sec	Average number of commands executed in this Work Queue Management category, per second	PerSecond
Average global references in WQM category rate	iris_wqm_globals_per_sec	Average number of global references run in this Work Queue Management category, per second	PerSecond
Max active workers since last log entry	iris_wqm_max_active_worker_jobs	Maximum number of active workers since the last log entry was recorded	Count
Max entries in MQM queue since last log	iris_wqm_max_work_queue_depth	Maximum number of entries in the queue of this Work Queue Management category since the last log	Count
Average idle worker jobs	iris_wqm_waiting_worker_jobs	Average number of idle worker jobs waiting for a group to connect to and do work for	Count

Metric name	Metric key	Description	Unit
Licenses not in use	iris_license_available	Number of licenses not currently in use	Count
Licenses in use	iris_license_consumed	Number of licenses currently in use	Count
Licenses percent used	iris_license_percent_used	Percent of licenses currently in use	Percent

Metric name	Metric key	Description	Unit
SQL statements executing	iris_sql_active_queries	The number of SQL statements currently executing	Count
95th percentile elapsed time for sql executing	iris_sql_active_queries_95_percentile	For the current set of active SQL statements, the 95th percentile elapsed time since a statement began executing	Second
99th percentile elapsed time for sql executing	iris_sql_active_queries_99_percentile	For the current set of active SQL statements, the 99th percentile elapsed time since a statement began executing	Second
Number of ObjectScript commands performing SQL rate	iris_sql_commands_per_second	Average number of ObjectScript commands executed to perform SQL queries, per second	PerSecond
Average SQL runtime	iris_sql_queries_avg_runtime	Average SQL statement runtime	Second
SQL runtime standard deviation	iris_sql_queries_avg_runtime_std_dev	Standard deviation of the average SQL statement runtime	Second
SQL query rate	iris_sql_queries_per_second	Average number of SQL statements, per second	PerSecond

Metric name	Metric key	Description	Unit
Time to collect iris_db sensors	iris_sam_get_db_sensors_seconds	Amount of time it took to collect iris_db* sensors	Second
Time to collect iris_jrn sensors	iris_sam_get_jrn_sensors_seconds	Amount of time it took to collect iris_jrn* sensors	Second
Time to collect iris_sql sensors	iris_sam_get_sql_sensors_seconds	Amount of time it took to collect iris_sql* sensors	Second
Time to collect iris_wqm sensors	iris_sam_get_wqm_sensors_seconds	Amount of time it took to collect iris_wqm* sensors	Second

Metric name	Metric key	Description	Unit
Aseizes on global resource rate	iris_glo_a_seize_per_sec	Number of Aseizes on the global resource per second	PerSecond
Nseizes on global resource rate	iris_glo_n_seize_per_sec	Number of Nseizes on the global resource per second	PerSecond
Refs to globals on local DBs rate	iris_glo_ref_per_sec	Number of references to globals located on local databases per second	PerSecond
Refs to globals on remote DBs rate	iris_glo_ref_rem_per_sec	Number of references to globals located on remote databases per second	PerSecond
Seizes on global resource rate	iris_glo_seize_per_sec	Number of seizes on the global resource per second	PerSecond
Updates to globals on local DBs rate	iris_glo_update_per_sec	Number of updates (SET and KILL commands) to globals located on local databases per second	PerSecond
Updates to globals on remote DBs rate	iris_glo_update_rem_per_sec	Number of updates (SET and KILL commands) to globals located on remote databases per second	PerSecond

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

⚠️ NOTICE: This version of the extension requires a minimum Dynatrace and EEC version of 1.313

✨ New in this version:

Improved error handling and Endpoint Statuses

Full version history

⚠️ NOTICE: This version requires a minimum Dynatrace Cluster version of 1.310

✨New in this version:

Adds dt.security_context as an attribute to iris:instance entities
Adds platform screen definitions for the I/O app
Adds a platform dashboard

Full version history

Adds device.address dimension to ingested metrics

Full version history

New build to support Windows ActiveGates

Full version history

Updates included urllib3 version with fix for CVE-2023-43804
