Juniper Networks (SNMP)Juniper Networks (SNMP)
Juniper Networks (SNMP)

Juniper Networks (SNMP)

Gain insights into the performance of your Juniper networking solutions.

Extension
Free trialDocumentation
  • Product information
  • Release notes

Overview

This extension leverages the SNMP protocol to track the health state and performance of your Juniper network infrastructure. It provides a unified analysis capabilities for Ops, DevOps and IT Admins.

This is intended for users, who:

  • Would like to monitor health state and performance of their Juniper devices
  • Look for analysis support for Ops, DevOps and IT Admins.

This enables you to:

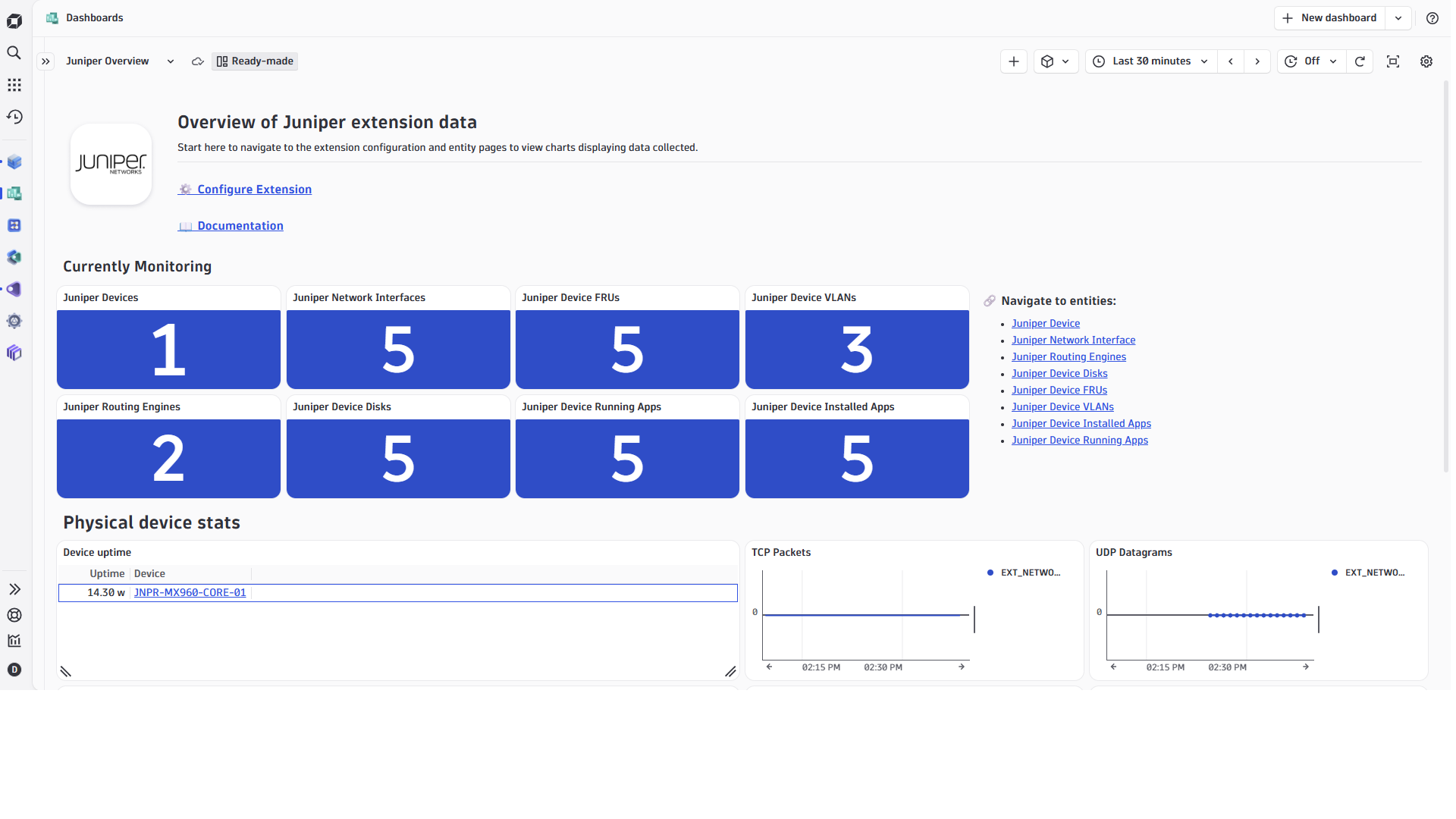

  • Monitor infrastructure with a comprehensive dashboard
  • Detect traffic anomalies and alert on them
  • Take pre-emptive measure to avoid service degradations

Compatibility Requirements

  • SNMPv2c and SNMPv3 supported only

Details

This extension is built on top of the new Extension 2.0 Framework.

The extension package contains:

  • SNMP DataSource configuration,
  • dashboard template,

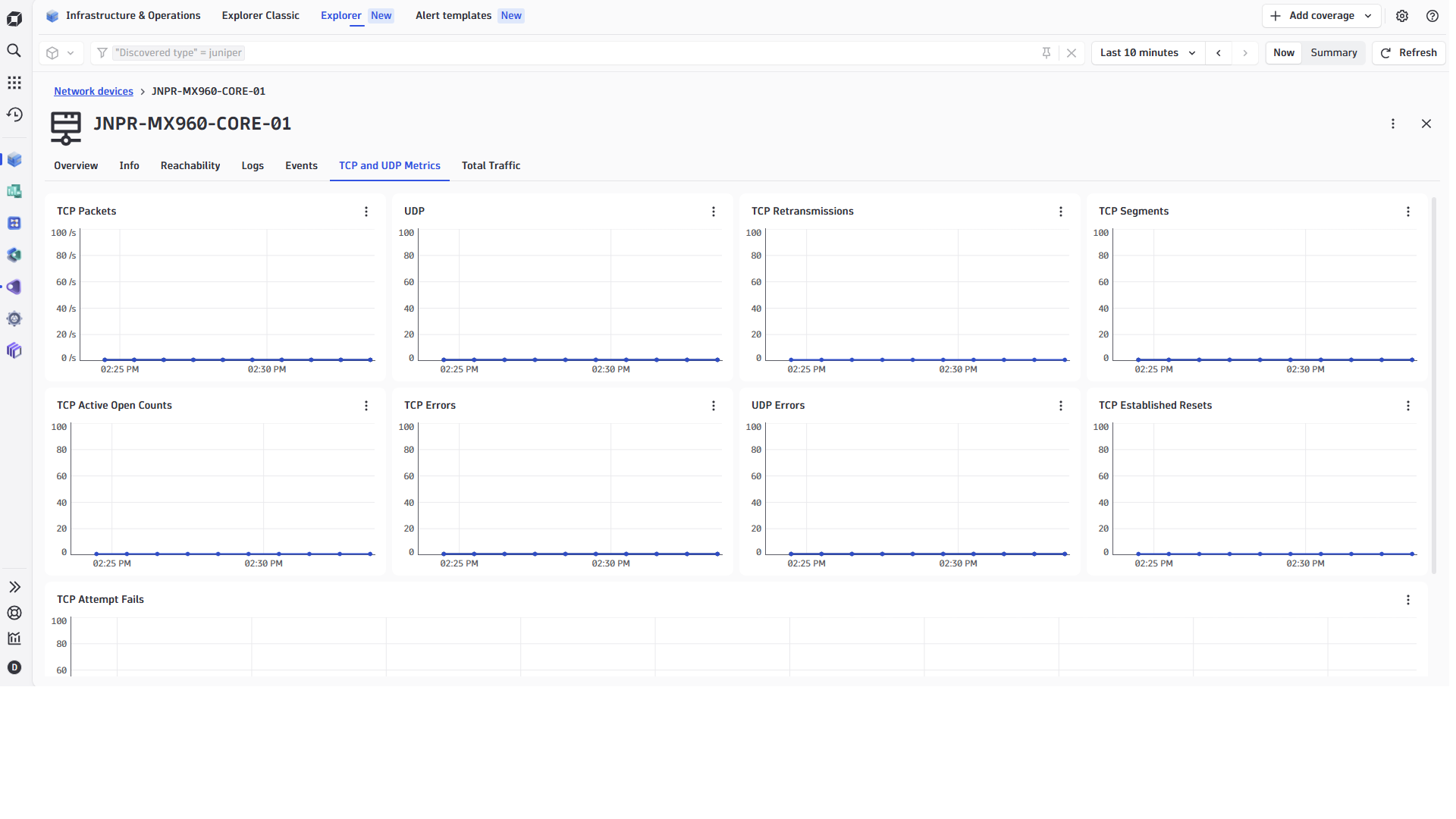

  • Unified Analysis screen template,
  • topology definition and entity extraction rules.

More information can be found in the Product News Blog:

  • Simplified observability for your SNMP devices

Get started

Simply activate the extension in your environment using in-product Hub, provide the device configuration and you’re all set up.

Read more in the SNMP Extension Documentation

Troubleshooting

  • To troubleshoot this extension, use the guide(s) in the Dynatrace Community.
Dynatrace
DocumentationMore Information
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen injections
2
alerts
5
list screen layout
9
screen entities lists
25
screen dql table
15
metric metadata
60
generic type
11
screen chart groups
28
screen metric tables
5
screen layout
18
dashboards
1
screen properties
4
metric query
3
generic relationship
10

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.sysuptime--
System Uptimecom.dynatrace.extension.juniper.generic.device.sys.uptimeUptime of the deviceMilliSecond
-com.dynatrace.extension.juniper.generic.device.entity--
-com.dynatrace.extension.juniper.generic.routingengine.entity--
Juniper IP Addresscom.dynatrace.extension.juniper.generic.ip_addr.entityUsed to create Juniper IP Address EntityCount
Vlan Entitycom.dynatrace.extension.juniper.generic.device.vlanUsed to create Juniper SNMP VLAN EntityCount
Metric nameMetric keyDescriptionUnit
IP Routecom.dynatrace.extension.juniper.generic.cidr.routeUsed to get Juniper SNMP IP Routing InfoCount
Metric nameMetric keyDescriptionUnit
Juniper SNMP Ping Probe Responsescom.dynatrace.extension.juniper.generic.last_ping.probe_responsesNumber of Ping Probes that RespondedCount
Juniper SNMP Ping Probes Sentcom.dynatrace.extension.juniper.generic.last_ping.probes_sentNumber of Ping Probes SentCount
Average Ping RTTcom.dynatrace.extension.juniper.generic.last_ping.avg_rttThe average of the round trip delays measured for all the probes during the most recently completed tesMicroSecond
Ping Avg Egress Timecom.dynatrace.extension.juniper.generic.last_ping.avg_egressThe average of the egress trip delays measured over all probes during the most recently completed testMicroSecond
Ingresscom.dynatrace.extension.juniper.generic.last_ping.avg_ingressThe average of the ingress trip delays measured over all probes during the most recently completed testMicroSecond
Metric nameMetric keyDescriptionUnit
Infocom.dynatrace.extension.juniper.generic.layer3.infoUsed to get Juniper SNMP IS-IS InfoCount
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.lldp_neighbor--
Metric nameMetric keyDescriptionUnit
Vlan Entitycom.dynatrace.extension.juniper.generic.device.vlanUsed to create Juniper SNMP VLAN EntityCount
Ex Vlan Entitycom.dynatrace.extension.juniper.generic.device.ex.vlanUsed to create Juniper SNMP VLAN EntityCount
Portgroup Entitycom.dynatrace.extension.juniper.generic.device.vlan.portgroupUsed to create Juniper SNMP Portgroup EntityCount
Ex Portgroup Entitycom.dynatrace.extension.juniper.generic.device.ex.vlan.portgroupUsed to create Juniper SNMP Portgroup EntityCount
Metric nameMetric keyDescriptionUnit
Installed Application Entitycom.dynatrace.extension.juniper.generic.app.installed.entityUsed to create Juniper Installed ApplicationsCount
CPU Time (raw)com.dynatrace.extension.juniper.generic.app.running.cpu.countJuniper Running Application Raw CPU Time (centi-seconds)Unspecified
Used Memorycom.dynatrace.extension.juniper.generic.app.running.memoryJuniper SNMP Running Application Memory UseKiloByte
Metric nameMetric keyDescriptionUnit
FRU Statecom.dynatrace.extension.juniper.generic.device.fru.stateState of the Juniper SNMP Device FRUCount
FRU Tempcom.dynatrace.extension.juniper.generic.device.fru.tempTemperature of Juniper SNMP FRUCount
Metric nameMetric keyDescriptionUnit
-com.dynatrace.extension.network_device.cpu_usage--
-com.dynatrace.extension.network_device.memory_usage--
Routing Engine CPU Utilizationcom.dynatrace.extension.juniper.generic.routingengine.cpu.utilizationCPU Utilization of the Routing EnginePercent
Routing Engine Memory Utilizationcom.dynatrace.extension.juniper.generic.routingengine.memory.utilizationMemory Utilization of the Routing EnginePercent
Routing Engine Statecom.dynatrace.extension.juniper.generic.routingengine.stateunknown(1),running(2),ready(3),reset(4),runningAtFullSpeed(5),down(6),standby(7)Count
Routing Engine Temperaturecom.dynatrace.extension.juniper.generic.routingengine.temperatureThe temperature of the Routing Engine in Celsius.Count
Metric nameMetric keyDescriptionUnit
Disk Sizecom.dynatrace.extension.juniper.generic.device.storage.sizeSize of DiskByte
Disk Usedcom.dynatrace.extension.juniper.generic.device.storage.usedAmount Used of DiskByte
Metric nameMetric keyDescriptionUnit
Tablecom.dynatrace.extension.juniper.generic.device.arp.tableUsed to show ARP TableCount
Metric nameMetric keyDescriptionUnit
Interface Entitycom.dynatrace.extension.juniper.generic.if.entityUsed to add COS Flags to Juniper InterfacesCount
-com.dynatrace.extension.network_device.if.bytes_in.count--
-com.dynatrace.extension.network_device.if.bytes_out.count--
-com.dynatrace.extension.network_device.if.status--
Incoming Bitscom.dynatrace.extension.juniper.generic.if.in.bitsThe number of incoming bits per second for an interface.BitPerSecond
Outgoing Bitscom.dynatrace.extension.juniper.generic.if.out.bitsThe number of outgoing bits per second for an interface.BitPerSecond
Outgoing Collisionscom.dynatrace.extension.juniper.generic.if.out.collisions.countThe number of output collisions detected for an interface.Count
Incoming Discardscom.dynatrace.extension.juniper.generic.if.in.discards.countThe number of inbound packets which were chosen to be discarded for an interface.Count
Outgoing Discardscom.dynatrace.extension.juniper.generic.if.out.discards.countThe number of outbound packets which were chosen to be discarded for an interface.Count
Incoming Dropscom.dynatrace.extension.juniper.generic.if.in.drops.countThe number of packets dropped by the input queue for an interface.Count
Outgoing Dropscom.dynatrace.extension.juniper.generic.if.out.drops.countThe number of packets dropped by the output queue for an interface.Count
Incoming Errorscom.dynatrace.extension.juniper.generic.if.in.err.countThe number of inbound packets that contained errors for an interface.Count
Outgoing Errorscom.dynatrace.extension.juniper.generic.if.out.err.countThe number of outbound packets that contained errors for an interface.Count
Incoming Frame Errorscom.dynatrace.extension.juniper.generic.if.in.frame_errors.countThe number of input packets which were misaligned for an interface.Count
Incoming Octectscom.dynatrace.extension.juniper.generic.if.in.octets.countThe total number of octets received on the interface.Byte
Outgoing Octectscom.dynatrace.extension.juniper.generic.if.out.octets.countThe total number of octets transmitted out of the interface.Byte
Incoming Packetscom.dynatrace.extension.juniper.generic.if.in.packetsThe number of packets per second received by the interface.PerSecond
Outgoing Packetscom.dynatrace.extension.juniper.generic.if.out.packetsThe number of packets per second sent by the interface.PerSecond
Metric nameMetric keyDescriptionUnit
Active Open Connectionscom.dynatrace.extension.juniper.generic.device.tcp.conn.active_open.countThe number of times TCP connections have made a direct transition to the SYN-SENT state from the CLOSED state.Count
Passive Open Connectionscom.dynatrace.extension.juniper.generic.device.tcp.conn.passive_open.countThe number of times TCP connections have made a direct transition to the SYN-RCVD state from the LISTEN state.Count
Attempt Fails Connectionscom.dynatrace.extension.juniper.generic.device.tcp.conn.attempt_fails.countThe number of times TCP connections have made a direct transition to the CLOSED state from either the SYN-SENT state or the SYN-RCVD state, plus the number of times TCP connections have made a direct transition to the LISTEN state from the SYN-RCVD state.Count
TCP Established Resetscom.dynatrace.extension.juniper.generic.device.tcp.estab_resets.countThe number of times TCP connections have made a direct transition to the CLOSED state from either the ESTABLISHED state or the CLOSE-WAIT state.Count
Current Established Connectionscom.dynatrace.extension.juniper.generic.device.tcp.conn.curr_estabThe number of TCP connections for which the current state is either ESTABLISHED or CLOSE- WAIT.Count
TCP Incoming Segmentscom.dynatrace.extension.juniper.generic.device.tcp.in.segs.countThe total number of segments received, including those received in error. This count includes segments received on currently established connections.Count
TCP Outgoing Segmentscom.dynatrace.extension.juniper.generic.device.tcp.out.segs.countThe total number of segments sent, including those on current connections but excluding those containing only retransmitted octets.Count
TCP Retransmitted Segmentscom.dynatrace.extension.juniper.generic.device.tcp.retrans.segs.countThe total number of segments retransmitted - that is, the number of TCP segments transmitted containing one or more previously transmitted octets.Count
TCP Incoming Errorscom.dynatrace.extension.juniper.generic.device.tcp.in.errors.countThe total number of segments received in error (e.g., bad TCP checksums).Count
TCP Outgoing Resetscom.dynatrace.extension.juniper.generic.device.tcp.out.resets.countThe number of TCP segments sent containing the RST flag.Count
Datagrams Receivedcom.dynatrace.extension.juniper.generic.device.udp.in.datagrams.countThe total number of UDP datagrams deliveredCount
UPD Incoming No Portcom.dynatrace.extension.juniper.generic.device.udp.in.no_ports.countThe total number of received UDP datagrams for which there was no application at the destination port.Count
UPD Incoming Errorscom.dynatrace.extension.juniper.generic.device.udp.in.errors.countThe number of received UDP datagrams that could not be delivered for reasons other than the lack of an application at the destination port.Count
Datagrams Sentcom.dynatrace.extension.juniper.generic.device.udp.out.datagrams.countThe total number of UDP datagrams sentCount

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

Fixed in this version:

  • Network Interfaces from Juniper devices would not show up in IO App

Full version history

New in this version:

  • Network neighbor discovery through LLDP
  • UI is compatible with AppEngine use

Full version history

  • New entities and metrics added to represent Juniper entities as network devices

Full version history

v1.4.0

  • Fix to correct Uptime Metric

Full version history

5min interval changed to 1min.

Full version history

Initial revision. Minimal required Dynatrace and ActiveGate version: 1.226
