Remote Desktop Protocol

Gather metrics and gain insights into the performance of user sessions over RDP.

Extension

Product information
Release notes

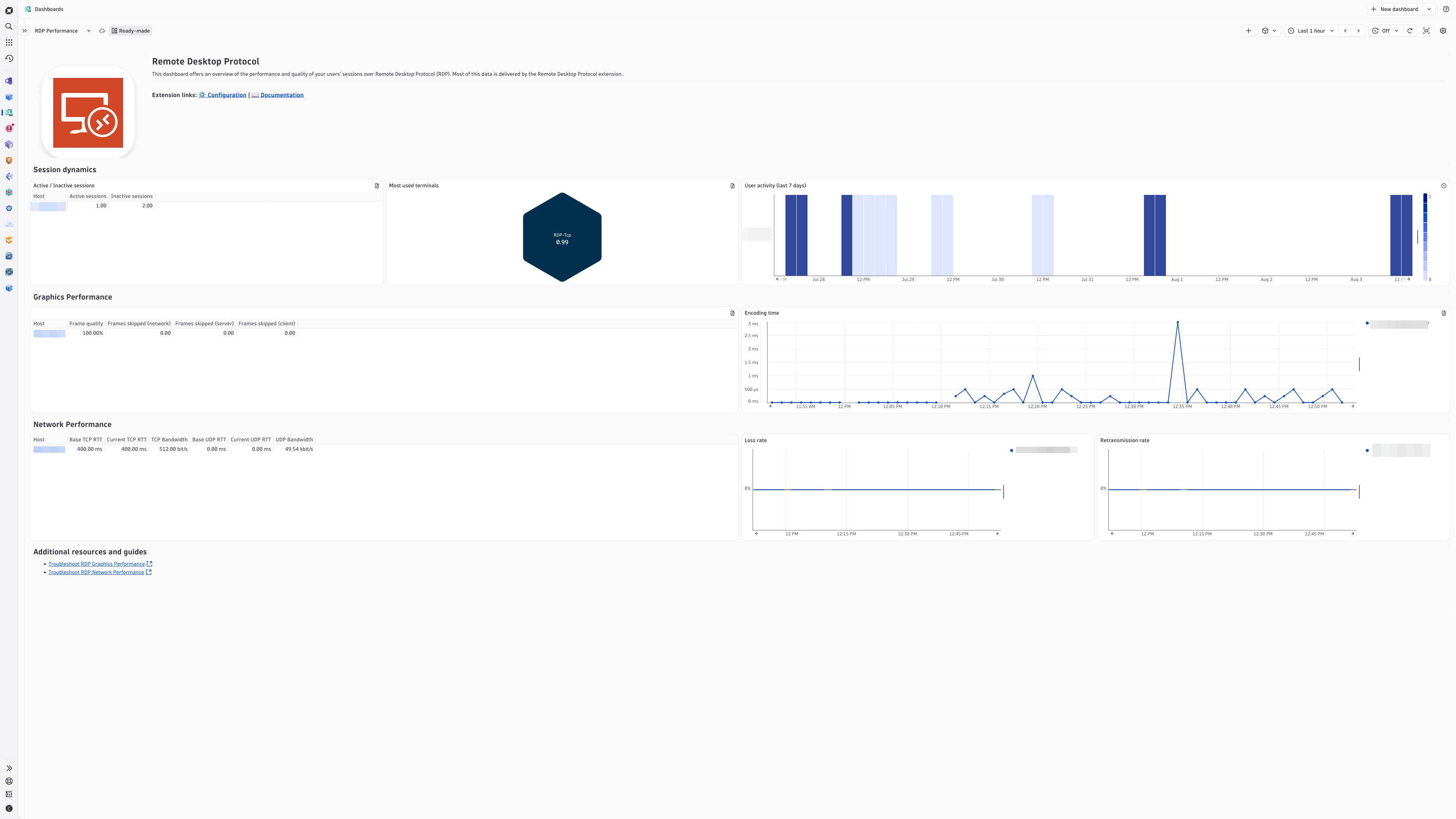

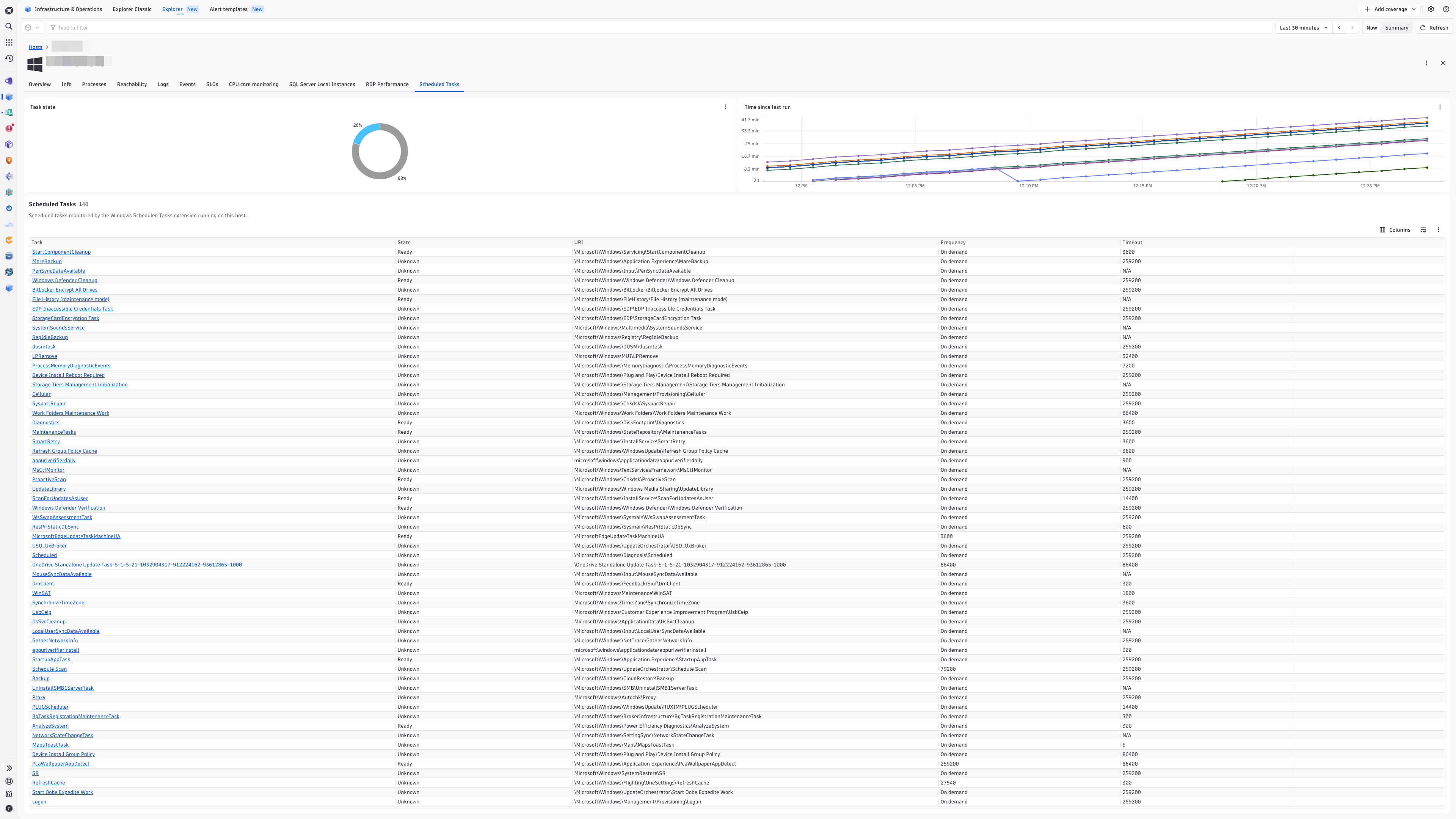

Overview

The Microsoft Remote Desktop Protocol (RDP) provides remote display and input capabilities over network connections for Windows-based applications running on a server. RDP is designed to support different types of network topologies and multiple LAN protocols. RDP also forms the basis for enterprise level solutions like Azure Virtual Desktop (formerly Windows Virtual Desktop), a desktop and app virtualization service that runs on the cloud.

This extension is designed to run on RDP session hosts, alongside the OneAgent. It leverages Windows Event Logs and Performance Counters to gather details about ongoing RDP sessions, providing insights into sessions performance as well as the health of the session host. The data gathered is represented in Dynatrace as Real User Monitoring (RUM) Sessions and Actions, or Metrics.

This is intended for users who:

Manage the infrastructure responsible for delivering virtual desktops to their users over RDP
Want to understand the performance of the RDP protocol and health of their session hosts
Need insights into the dynamics of user activity in remote desktop environments

This extension enables you to:

Track basic RDP activity for users across different session hosts
Monitor the Network and Graphics performance of the RDP protocol on session hosts
Correlate poor user experience with insufficiencies in client, server, or network resources

Use cases

Network Performance - is the user accessing the remote host over a slow network? does the client have enough bandwidth? is the session host skipping frames due to network insufficiencies?
Graphics Performance - what is the frame quality of the user's session? does the session host skip frames due to network, client, or server insufficiencies? is frame encoding taking the appropriate amount of time?
Input Delays - is the RDP kernel registering delays from when the user interacted with an application until the application reacted to that input?
Capacity - are active users being impacted by large amounts of inactive sessions holding resources on the host? is your session host clearing these appropriately?
Security - is there a large amount of failed logins to the hosts? what are the accounts that result in auhtentication failures, and for what reason?

Get started

To get started, first install the OneAgent on your session hosts. Infrastructure-only mode is sufficient for this extension to function correctly.

Prepare your Windows host

The extension requires access to programmatically read Windows Event Logs.

Enabling access for Operational logs is done through the Windows registry. Navigate to the Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\EventLog location using a tool like regedit and ensure the following keys are present:
- Microsoft-Windows-TerminalServices-RemoteConnectionManager/Operational
- Microsoft-Windows-TerminalServices-LocalSessionManager/Operational
- Microsoft-Windows-RemoteDesktopServices-RdpCoreTS/Operational
- Microsoft-Windows-RemoteDesktopServices-RdpCoreCDV/Operational
⚠️ Note: The name of the key (folder) must be exactly like in the above list. It does not

represent nested folders.

Enabling access for the Security log is done for individual accounts (using SID notation). This is most easily done using the wevtutil command. Run the following command from a terminal:
```
wevtutil sl Security "/ca:O:BAG:SYD:(A;;0x1;;;S-1-5-32-573)(A;;0x1;;;S-1-5-20)(A;;0x1;;;S-1-5-11)"
```
This enables read access to the log for the Authenticated Users (S-1-5-11), Network

Service (S-1-5-20), and Event Log Readers (S-1-5-32-573) accounts.

Configure the extension

After adding the extension to your environment, its monitoring configuration offers a few options for configuring its behavior, specifically around Real User Monitoring.

If the extension should create User Sessions and Actions, you must enable Report RUM data. Once this is enabled, the following options appear:

Application ID - the ID of a Custom Application for reporting the collected data
Detect Beacon URL
- If enabled, the extension will attempt to read the OneAgent configuration files and detect a suitable URL for initializing the OpenKit framework and sending the RUM data through it.
- If disabled, you must specify the RUM Beacon URL using the Beacon URL field.
Reduce DEM consumption - for long running sessions (> 30 min.), this option will reduce the amount of "Network Performance", "Graphics Performance", and "Session Input Delay" user actions (normally reported every minute) in order to reduce the amount of licenses utilized (1 session is consumed every 200 actions).

Opting in/out for metrics is done through the extension's feature sets, which are seen on the last step of the configuration process.

Compatibility information

Minimum supported OneAgent version: 1.280

Supported RDP clients:

Direct RDP connections (mstsc.exe)
Microsoft Remote Desktop App (older than October 2022 release)

Session Input Delay and Process Input Delay are only supported for Windows Server 2019, or Windows 10 (1809), or later.

FAQ

How can I validate my setup of Windows Event Logs?

After following the setup instructions, you can run the get-eventlog -List command from a Powershell terminal. The output will list all logs log available for reading in an output similar to this:

  Max(K) Retain OverflowAction        Entries Log
  ------ ------ --------------        ------- ---
  20,480      0 OverwriteAsNeeded         136 Application
     512      7 OverwriteOlder              0 Microsoft-Windows-RemoteDesktopServices-RdpCoreCDV/Operational
     512      7 OverwriteOlder            334 Microsoft-Windows-RemoteDesktopServices-RdpCoreTS/Operational
     512      7 OverwriteOlder             55 Microsoft-Windows-TerminalServices-LocalSessionManager/Operational
     512      7 OverwriteOlder             85 Microsoft-Windows-TerminalServices-RemoteConnectionManager/Operational
  20,480      0 OverwriteAsNeeded         769 Security
  20,480      0 OverwriteAsNeeded       1,026 System

Ensure that all logs are listed in the Log column, and all of them have a value greater than zero in the Entries column.

How do I find my Beacon URL and Custom Application ID?

After creating a Custom Application, open its detail page, click the ... button, then select Edit. On the page that opens, navigate to Instrumentation wizard and find these details listed as Application ID and Beacon URL

I'm missing Session Input Delay and Process Input Delay data, what should I do?

While we noticed it happen particularly with Session and Process Input Delay performance counters, it is a known issue that Microsoft Performance Counters may break and require rebuilding.

Following Microsoft's guide, run the following commands as Administrator:

lodctr /R
WINMGMT.EXE /RESYNCPERF
Get-Service -Name "pla" | Restart-Service -Verbose
Get-Service -Name "winmgmt" | Restart-Service -Force -Verbose

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

screen injections

1

metric metadata

20

screen chart groups

1

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Active sessions	rdp.terminal.active_sessions	The number of Active RDP Sessions on the host. Active Sessions are actively being used by users logged onto their Virtual Desktop.	Count
Inactive sessions	rdp.terminal.inactive_sessions	The number of Inactive RDP Sessions on the host. Inactive Sessions are not currently being used by users but have not been terminated, users still being able to resume.	Count
Active users	rdp.terminal.active_users	The number of Active Users on the RDP Host. Active Users are actively logged onto their Virutal Desktops.	Count
Login failures	rdp.terminal.login_failures_count	The number of failed login attempts along with failure details.	Count

Metric name	Metric key	Description	Unit
Session input delay	rdp.session_input_delay	The longest time it takes for an input (user click/keypress) to reach the application inside an RDP session. The value is reported per session.	MilliSecond
Process input delay	rdp.process_input_delay	The longest time it takes for an input (user click/keypress) to reach the application inside an RDP session. The value is reported per process.	MilliSecond

Metric name	Metric key	Description	Unit
Total sessions	rdp.terminal.total_sessions	The total number of RDP Sessions on the host. This includes both active and inactive sessions.	Count

Metric name	Metric key	Description	Unit
Encoding time	rdp.graphics.encoding_time	The average time spent encoding frames. For RDP encoding time should be under 33 milliseconds.	MilliSecond
Frame quality	rdp.graphics.frame_quality	The quality of the output frame represented as a percentage of the quality of the source frame.	Percent
Frames skipped (client)	rdp.graphics.frames_skipped_client	The number of frames skipped per second due to insufficient client resources	PerSecond
Frames skipped (network)	rdp.graphics.frames_skipped_network	The number of frames skipped per second due to insufficient network resources	PerSecond
Frames skipped (server)	rdp.graphics.frames_skipped_server	The number of frames skipped per second due to insufficient server resources	PerSecond

Metric name	Metric key	Description	Unit
Base TCP RTT	rdp.network.base_tcp_rtt	Base TCP round-trip time (RTT) detected in milliseconds	MilliSecond
Base UDP RTT	rdp.network.base_udp_rtt	Base UDP round-trip time (RTT) detected in milliseconds	MilliSecond
Current TCP RTT	rdp.network.current_tcp_rtt	Current TCP round-trip time (RTT) detected in milliseconds	MilliSecond
Current UDP RTT	rdp.network.current_udp_rtt	Current UDP round-trip time (RTT) detected in milliseconds	MilliSecond
TCP bandwidth	rdp.network.tcp_bandwidth	Current TCP bandwidth detected in bits per second (bps)	BitPerSecond
UDP bandwidth	rdp.network.udp_bandwidth	Current UDP bandwidth detected in bits per second (bps)	BitPerSecond
Loss rate	rdp.network.loss_rate	The number of packets lost in transmission, expressed as a percentage of all packets.	Percent
Retransmission rate	rdp.network.retransmission_rate	The number of packets retransmitted due to loss or damage, expressed as a percentage of all packets	Percent

Related to Remote Desktop Protocol

OneAgent

The simplest way to capture all observation signals automatically and in context

Windows

Windows server performance with real-time metrics and automated issue detection

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

Fixed in this version:

No permission to read OneAgent connectivity details

Full version history

Fixed in this version:

RDP Performance card would show up on all hosts' screens

Full version history

🚀 Improved in this version

OpenKit initialization and recovery times are much quicker

Full version history

🪲 Fixed in this version:

Auto-detected beacon endpoint URLs were wrongly formatted

🚀 Improved in this version:

When beacon auto-detect is enabled, the extension will find a new beacon endpoint and reconnect in case the original endpoint fails. The recovery time will vary depending on the amount of endpoints available to that OneAgent.

Full version history

✨ New in this version:

First release of this extension, built on Extension Framework 2.0

🚀 Improved in this version:

Automatic distribution to OneAgent hosts
Rich metadata for collected metrics
Metrics are displayed on the Host detail page
