ApigeeApigee
Apigee

Apigee

Remotely monitor your Apigee proxies.

Extension
Free trialDocumentation

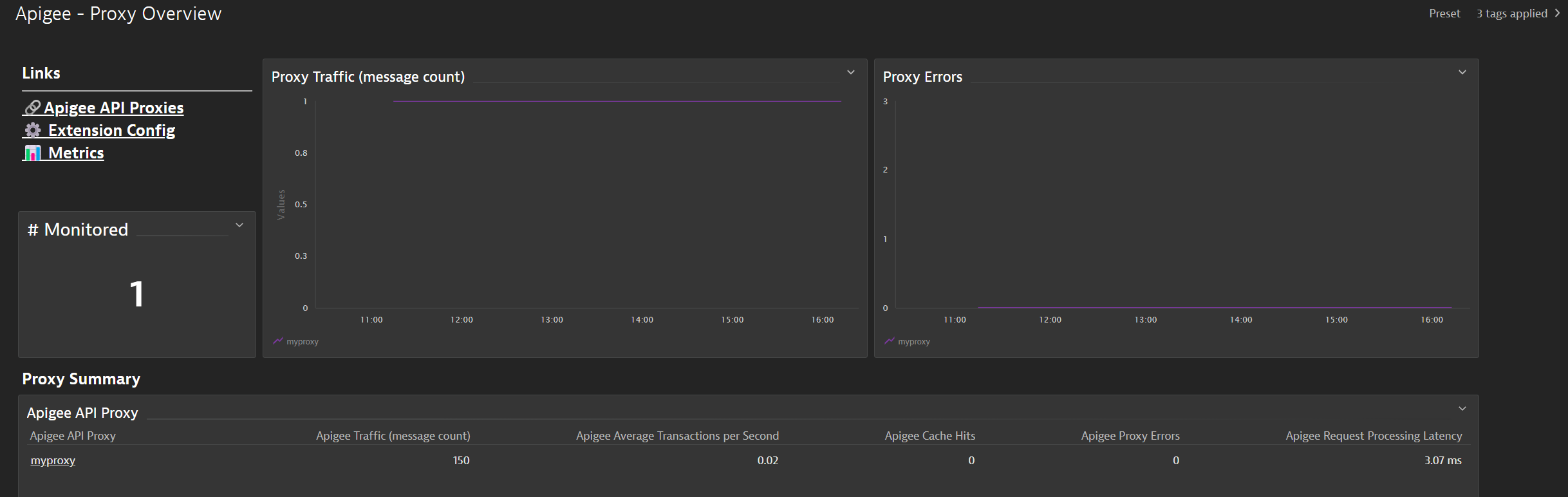

Apigee overview dashboardApigee proxy entityApigee metricsApigee configurationApigee dimension selection
  • Product information
  • Release notes

Overview

This extension provides the ability to remotely monitor Apigee through the Analytics Metrics API. Every minute, this extension polls Apigee to ingest data about how each proxy is performing.

This is intended for users, who:

  • Would like to monitor the health and performance of the Apigee proxies
  • Look for analysis support for Ops, IT and developers.

This enables you to:

  • Monitor Apigee with a dedicated dashboard and Dynatrace entities to represent each proxy
  • Detect anomalies and alert on them

Use cases

The extension enables insights into the overall health of Apigee and API proxies.

Get started

Activate the extension in your environment using the in-product Hub, provide the necessary apigee proxy and authentication configuration. Follow the instructions and prompts within the extension settings.

Auth Types supported:

  • Basic Auth (username / password)
  • Oauth2
  • SAML auth
  • Google GCP Service Account JSON file

Authentication

The extension requires an Apigee user with 'Apigee Analytics Viewer' permissions.

Google Cloud - Apigee X or Apigee Hybrid

Google Apigee requires Google OAuth2 authentication through a GCP service account.

  • Create a Google Cloud Service Account (e.g., Dynatrace-apigee-extension)
    • Apigee Roles
  • Provide the role 'Apigee Analytics Viewer'
  • Select this new service account, then the KEYS tab and create and download a JSON private key file: project-id-key.json
  • Add this JSON file key to the Dynatrace ActiveGate/s that the extension will run from
    • Must be on a path accessible to the Dynatrace ActiveGate user (e.g., dtuserag on Linux)
    • This path is the 'Service account file' in the extension configuration

Details

The extension uses the Analytics Metrics API to collect important proxy performance metrics.

Users can specify the metric dimensions to target within the extension configuration. Most Apigee dimensions are supported and available, but each endpoint is limited to 5 different dimensions to prevent excessive metric splitting. It is recommended to always include the ‘proxy’ (apiproxy) dimension, as this is what is used to model the Dynatrace entity for an Apigee API Proxy. For the full list of Apigee Dimensions refer to Apigee Dimensions.

Polled proxies are limited to 1000 per endpoint. If you have more than this, you can specific individual proxy names to monitor and/or set the sorting order for which 1000 proxies to return. Wildcards are supported in the list of named proxies. Proxy sort by options:

  • slowest_response_time
  • highest_message_count
  • highest_proxy_errors
  • highest_throughput
  • highest_latency

Compatibility information

  • Apigee Edge
  • Apigee Private Cloud
  • Apigee X (Google cloud platform)
  • Apigee Hybrid (Google cloud platform)
Dynatrace
Documentation
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen layout
2
generic relationship
1
alerts
1
dashboards
1
generic type
2
metric metadata
12
screen entities lists
1

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
Apigee API Connectivityapigee.api.connectivityWas Dynatrace able to poll the Apigee API without errors?Percent
Apigee Average Transactions per Secondapigee.throughputThe average number of transactions, meaning API proxy requests, per second.Count
Apigee Cache Hitsapigee.cache_hitsThe number of successful API requests that use the Response Cache instead of the response from the target service.Count
Apigee Traffic (message count)apigee.trafficThe total number of API calls processed by Edge in the specified time period.Count
Apigee Proxy Errorsapigee.errorsThe total number of times API proxies failed over the specified time period.Count
Apigee Target Errorsapigee.target_errorsThe total number of 5xx responses from the target service. These are target service errors not caused by Apigee.Count
Apigee Total Response Timeapigee.total_response_timeThe amount of time in milliseconds, from when Edge receives a request from a client to when Edge sends the response back to the client.MilliSecond
Apigee Request Sizeapigee.request_sizeThe size of the request payload received by Edge, in bytes.Byte
Apigee Response Sizeapigee.response_sizeThe size of the response payload returned to the client, in bytes.Byte
Apigee Target Response Timeapigee.target_response_timeThe amount of time in milliseconds, for the target server to respond to a call.MilliSecond
Apigee Response Processing Latencyapigee.response_latencyThe amount of time in milliseconds, that it takes Edge to process API responsesMilliSecond
Apigee Request Processing Latencyapigee.request_latencyThe amount of time in milliseconds, that it takes Edge to process incoming requests.MilliSecond

Related to Apigee

Google Apigee logo

Google Apigee

Get insights into Google Apigee service metrics collected from the Google Operations API to ensure health of your cloud infrastructure.

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

  • Adds an option to ignore an empty metrics response from Apigee instead of raising it as an error.
  • The list of extra dimensions to collect can now be empty

Full version history

Include chardet as an install dependency. Without this requests uses charset-normalizer which requires an executable .so file, which is often blocked on noexec filesystems.

Full version history

  • Fixes a bug where requests were still being validated even if 'Verify' was set to false in the configuration.
  • Requires both Verify and Use Custom Certificates to be enabled before using custom certificate bundles to validate Apigee host SSL

Full version history

Note: This update requires Monitoring Configurations to be recreated. You cannot automatically update a configuration from 2.x.x to 3.0.0 due to the various configuration and UI changes.

  • Improve extension configuration settings
    • Drop SAML auth from the supported options
    • Google authentication properties can now be added to the extension configuration
    • Credential vault support for username/password fields
    • Improved documentation
  • Always Include the Proxy (apiproxy) dimension.
  • Reduce custom dimension selection to 4 (apiproxy is always the 5th)
  • Improved error reporting.
  • Collect an Apigee API connection metric
    • Custom alert for when the apigee API connection fails
  • SSL verification settings now used in Google oauth2 requests

Full version history

  • Add option to mask 'Client IP' addresses.
  • Add organization and environment dimensions
  • Add a warning about high metric cardinality and sensitive data in the dimension selection field

Full version history

  • Add entity type to metrics for tags and management zone rules
  • Proxy icon for created Entities
  • Update dependency package versions

Full version history

  • Advanced configuration option - custom request timeout

Full version history

  • Support for all Apigee Analytics Dimensions

Full version history

  • Add the option to skip SSL verification
  • Add the option to validate requests by manually providing an SSL certificate (CA bundle)

Full version history

  • Support for internal network proxy without Basic Auth

Full version history

  • Support longer custom filters (up to 5000 chars)
  • Improve documentation and formatting

Full version history

Add metric feature set

Full version history

  • Support the use of custom Apigee filters which target chosen dimensions: Apigee Filters

Full version history

  • Use avg aggregation for many metrics instead of min,max,sum summaries.
  • This fixes an issue with invalid MINT lines if count isn't computed correctly

Full version history

  • Apigee types: Apigee Edge, X, Private type
  • Supported auth: Basic, Oauth2, SAML, Google auth
