Apache Zookeeper

Apache Zookeeper

Monitor and analyze your Apache Zookeeper with this JMX-based extension

Extension

Product information
Release notes

Overview

Dynatrace automatically detects all applications and microservices deployed in your application server and provides automatic end-to-end tracing, application server metrics and log insights. Dynatrace visualizes your web application and its dependencies from website to application to container, infrastructure and cloud. It diagnoses anomalies in real-time with AI and pinpoints the root-cause down to the broken code before your customers are even affected. Deep code-level insights combined with market-leading profiling capabilities like method hotspots, error/exception analysis, memory profiling, and thread analysis will help you leverage the robustness of your production environment.

Get started

If your Apache Zookeeper is running on a virtual machine directly, install OneAgent on it to get started.

Activate the JMX extensions for Apache Zookeeper to get full metric insight by clicking on Add to environment.

Activate log monitoring to get full log insight.

Extension

Click on Add to environment to get started. Easily create configurations for the hosts where your zookeeper is running and the available JMX metrics will start coming through. Use feature sets to further select the metrics you're interested in.

Prerequisites

Windows or Linux
Java Metric Extensions 2.0 (JMX) [Opt-In] OneAgent feature enabled

Feature set selection

Because of how MBeans are populated in zookeeper, they will look different depending on the architecture of your zookeeper.

If you're running a replica-based architecture you can disable the Server latency and Server usage feature sets, as they will only create duplicates.
If you're running a stand-alone server with no replicas, you can disable the Client traffic, Client latency, Replica latency, Replica usage and Replica status feature sets, as they are not available for stand-alone installations.

Output

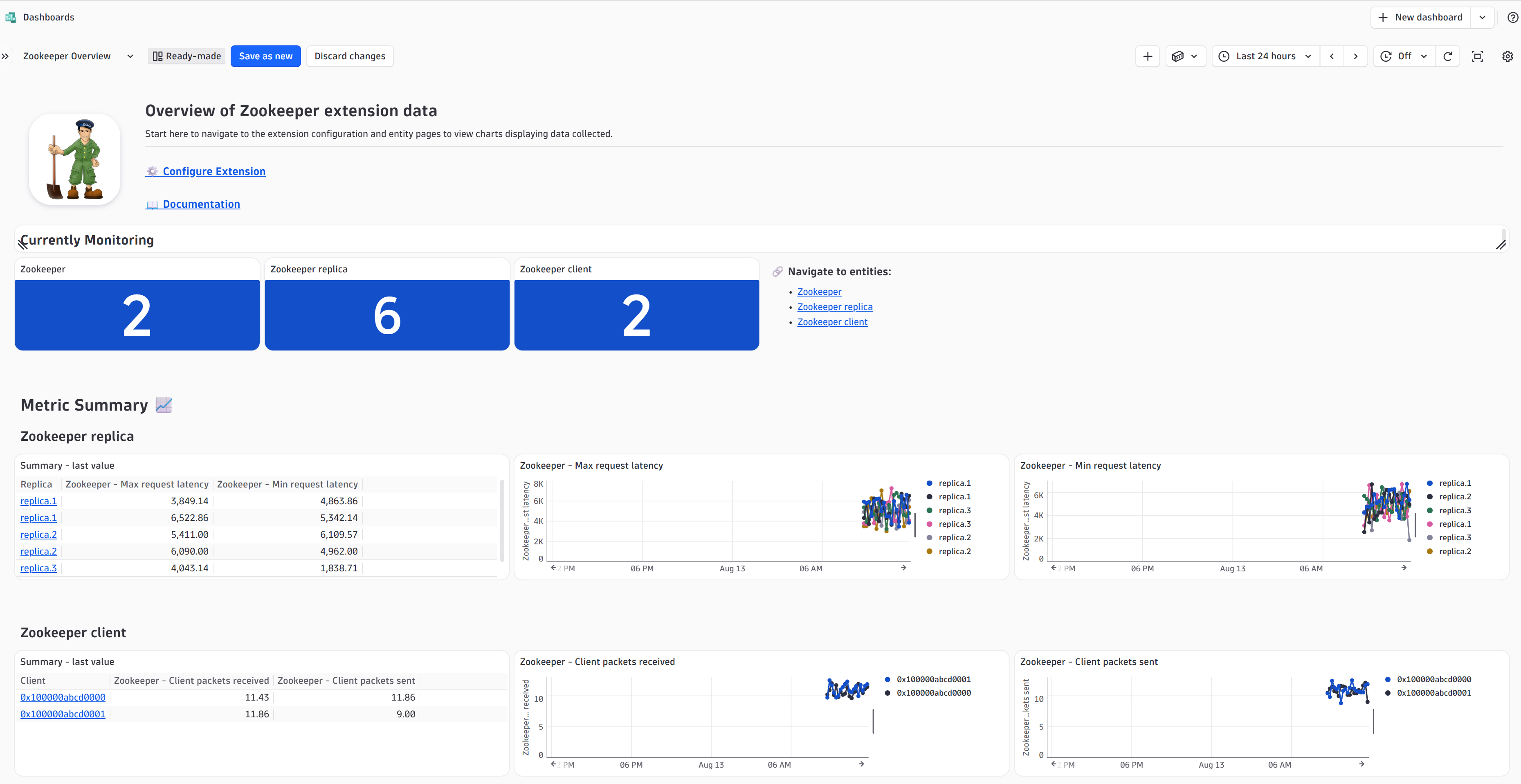

The dashboard Apache Zookeeper Overview will be included in the extension, where you can see an overview of the Zookeeper JMX metrics ingested by this extension.

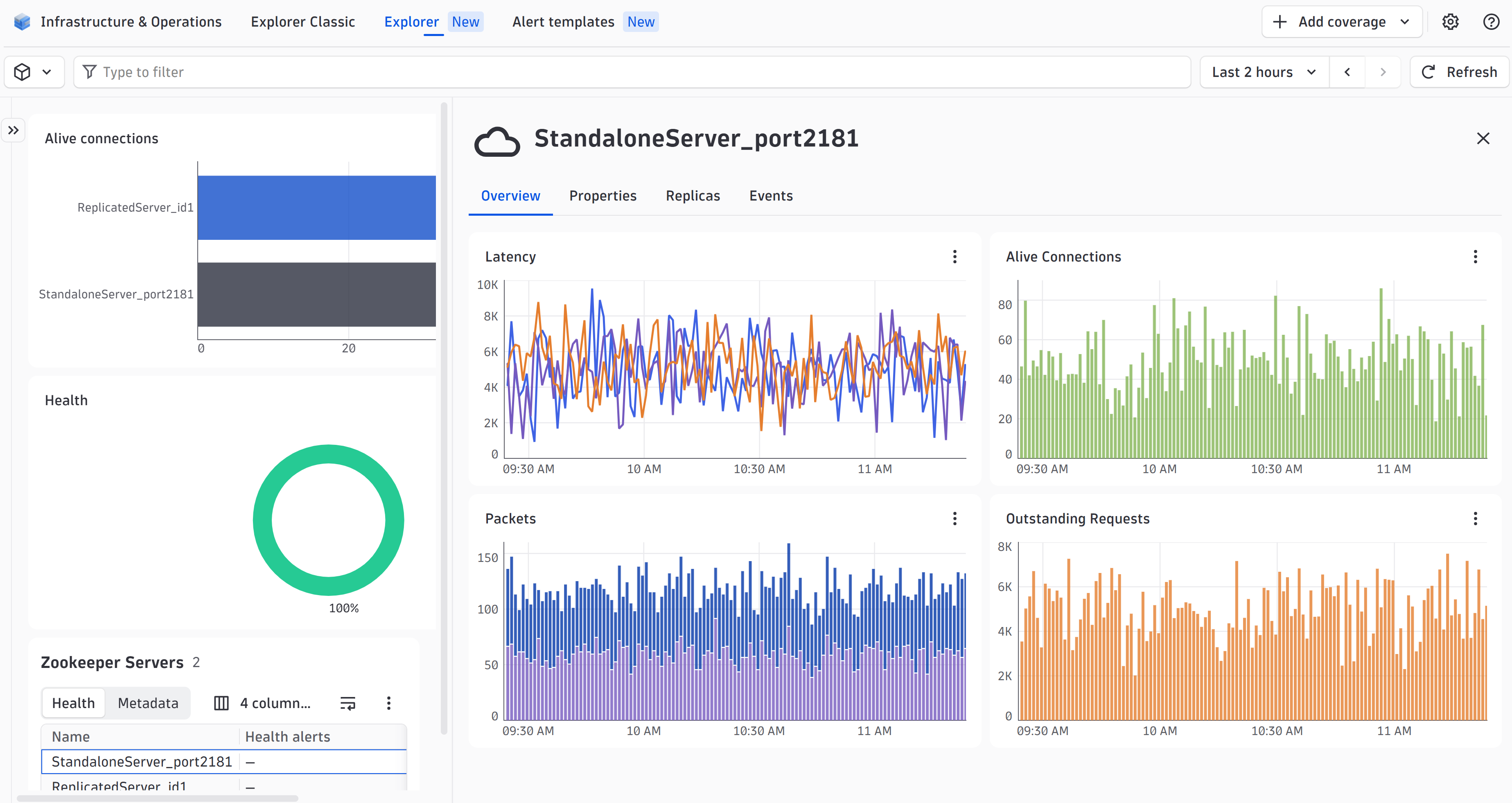

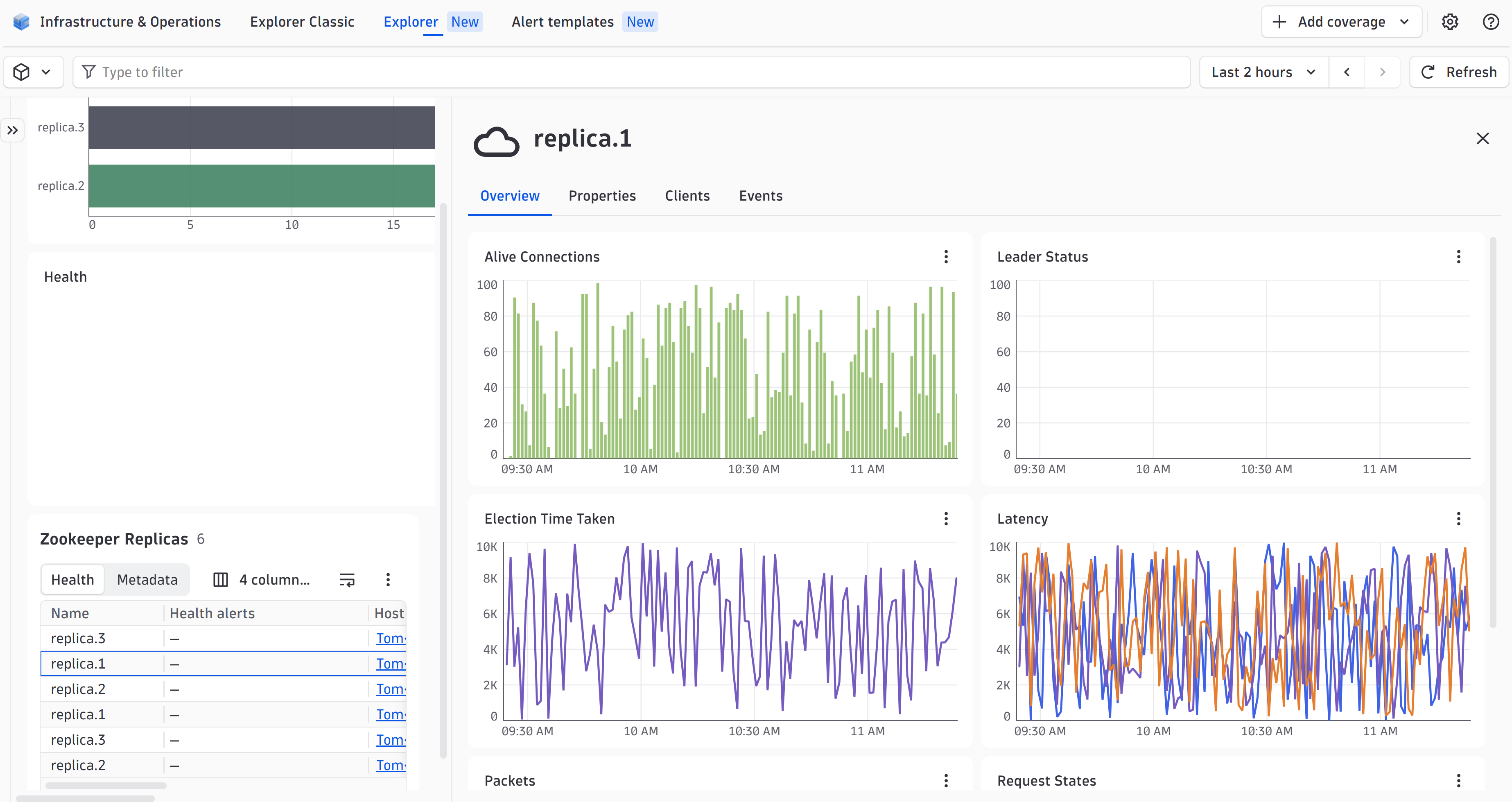

The extension also includes three generic types: Server, replica and client. Each of these types will be populated automatically and will include out-of-the-box screens and visualizations for their data. To access the lists for these entities or the entities individually, you can use the Apache Zookeeper Overview dashboard as an entry point.

Additionally, all metrics captured by the extension will be appended to the process group instance's and host's unified analysis screen. Make sure to be on the new unified analysis screens to see them.

All metrics can also be viewed with the data explorer, all of them include the zookeeper prefix.

Licensing Consumption

The extension consumes DDU Units. However, they are elgible for the free tier included with every host. The amount of DDUs units depends on the number of processes monitored, their architecture and usage.

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

metric metadata

23

screen metric tables

2

screen layout

3

screen properties

2

list screen layout

3

screen actions

6

generic relationship

4

screen entities lists

6

dashboards

1

generic type

3

screen chart groups

4

screen injections

4

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Zookeeper - Max request latency	zookeeper.replica.maxRequestLatency	-	MilliSecond
Zookeeper - Min request latency	zookeeper.replica.minRequestLatency	-	MilliSecond
Zookeeper - Average request latency	zookeeper.replica.avgRequestLatency	-	MilliSecond

Metric name	Metric key	Description	Unit
Zookeeper - Alive connections	zookeeper.replica.aliveConnections	-	Count
Zookeeper - Packets received	zookeeper.replica.packetsReceived.count	-	Count
Zookeeper - Packets sent	zookeeper.replica.packetsSent.count	-	Count
Zookeeper - Outstanding requests	zookeeper.replica.outstandingRequests	-	Count
Zookeeper - Pending revalidations	zookeeper.replica.pendingRevalidation.count	-	Count
Zookeeper - Auths failed	zookeeper.replica.authFailed.count	-	Count

Metric name	Metric key	Description	Unit
-	zookeeper.server.aliveConnections	-	-
Zookeeper - Packets received	zookeeper.server.packetsReceived.count	-	Count
Zookeeper - Packets sent	zookeeper.server.packetsSent.count	-	Count
Zookeeper - Outstanding requests	zookeeper.server.outstandingRequests	-	Count

Metric name	Metric key	Description	Unit
Zookeeper - Max latency	zookeeper.server.maxLatency	-	MilliSecond
Zookeeper - Min latency	zookeeper.server.minLatency	-	MilliSecond
Zookeeper - Average latency	zookeeper.server.avgLatency	-	MilliSecond

Metric name	Metric key	Description	Unit
Zookeeper - Client average latency	zookeeper.client.avgLatency	-	MilliSecond
Zookeeper - Client max latency	zookeeper.client.maxLatency	-	MilliSecond
Zookeeper - Client min latency	zookeeper.client.minLatency	-	MilliSecond

Metric name	Metric key	Description	Unit
Zookeeper - Client packets received	zookeeper.client.packetsReceived.count	-	Count
Zookeeper - Client packets sent	zookeeper.client.packetsSent.count	-	Count
Zookeeper - Client outstanding requests	zookeeper.client.outstandingRequests	-	Count

Metric name	Metric key	Description	Unit
Zookeeper - Election time taken	zookeeper.replica.electionTimeTaken	-	MilliSecond
Zookeeper - Leader status	zookeeper.replica.leaderStatus	Equals 1 when the replica is a leader, 0 if it's a follower.	Count

Related to Apache Zookeeper

Apache Kafka

Automatic and intelligent observability with trace and metric insights.

OneAgent

The simplest way to capture all observation signals automatically and in context

Apache Solr

Open-source enterprise-search platform, written in Java.

Hadoop

Enhanced insights for Hadoop HDFS and Yarn services

Apache Spark

Enhanced insights for Spark Components

Java

Optimize Java performance with E2E monitoring and AI-driven root cause analysis

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

Fixed a bug where metrics didn't have a main entity to be attached to

Full version history

First release of the Apache Zookeeper JMX extension which includes:

Feature sets for metric selection
Three generic types and their relationships to create a custom topology
Unified analysis screens for each one of these types
Overview dashboard included with the extension
