SNMP TrapsSNMP Traps
SNMP Traps

SNMP Traps

Supplement network monitoring with event-based data reported via SNMP Traps.

Extension
Free trialDocumentation

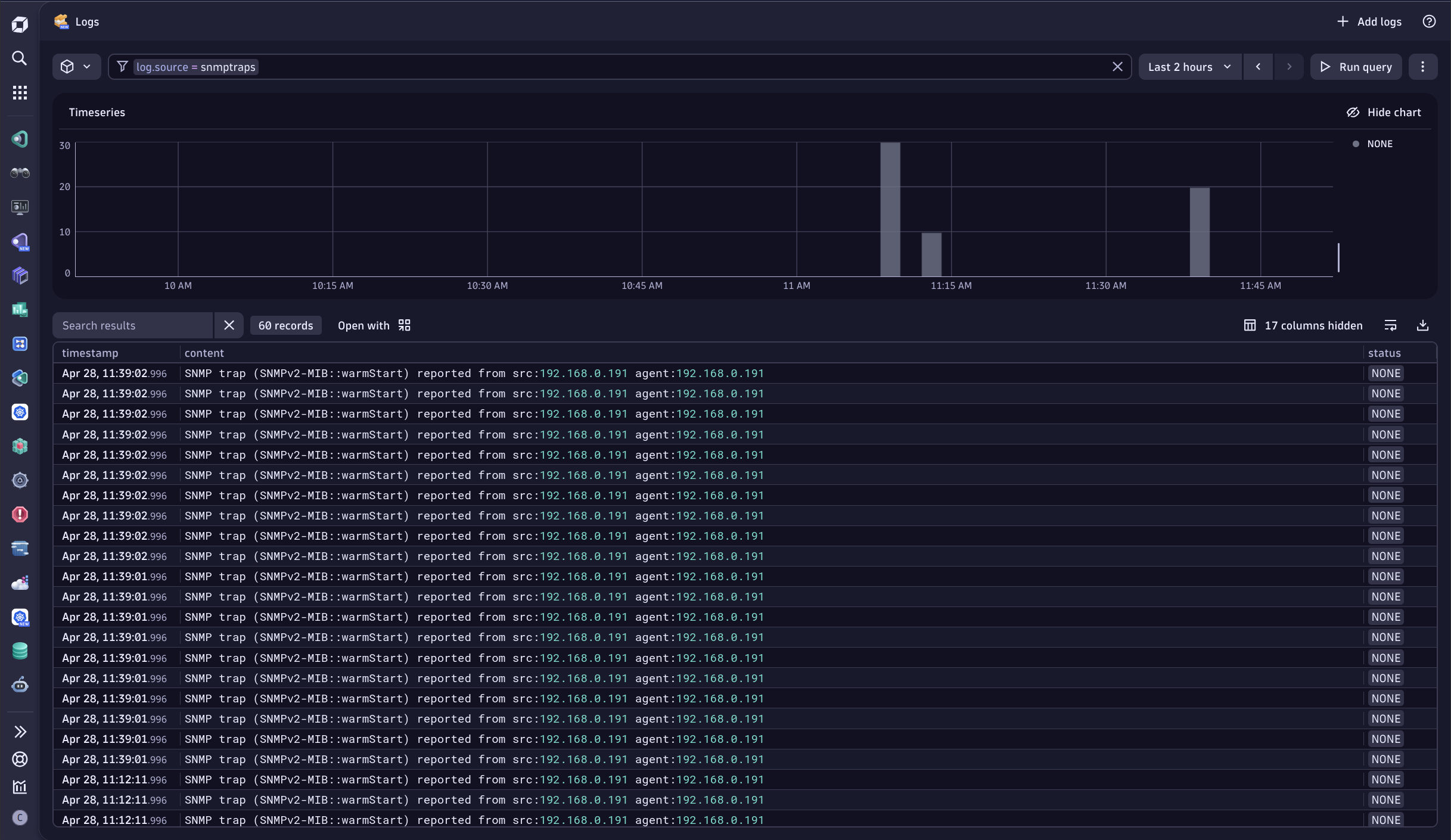

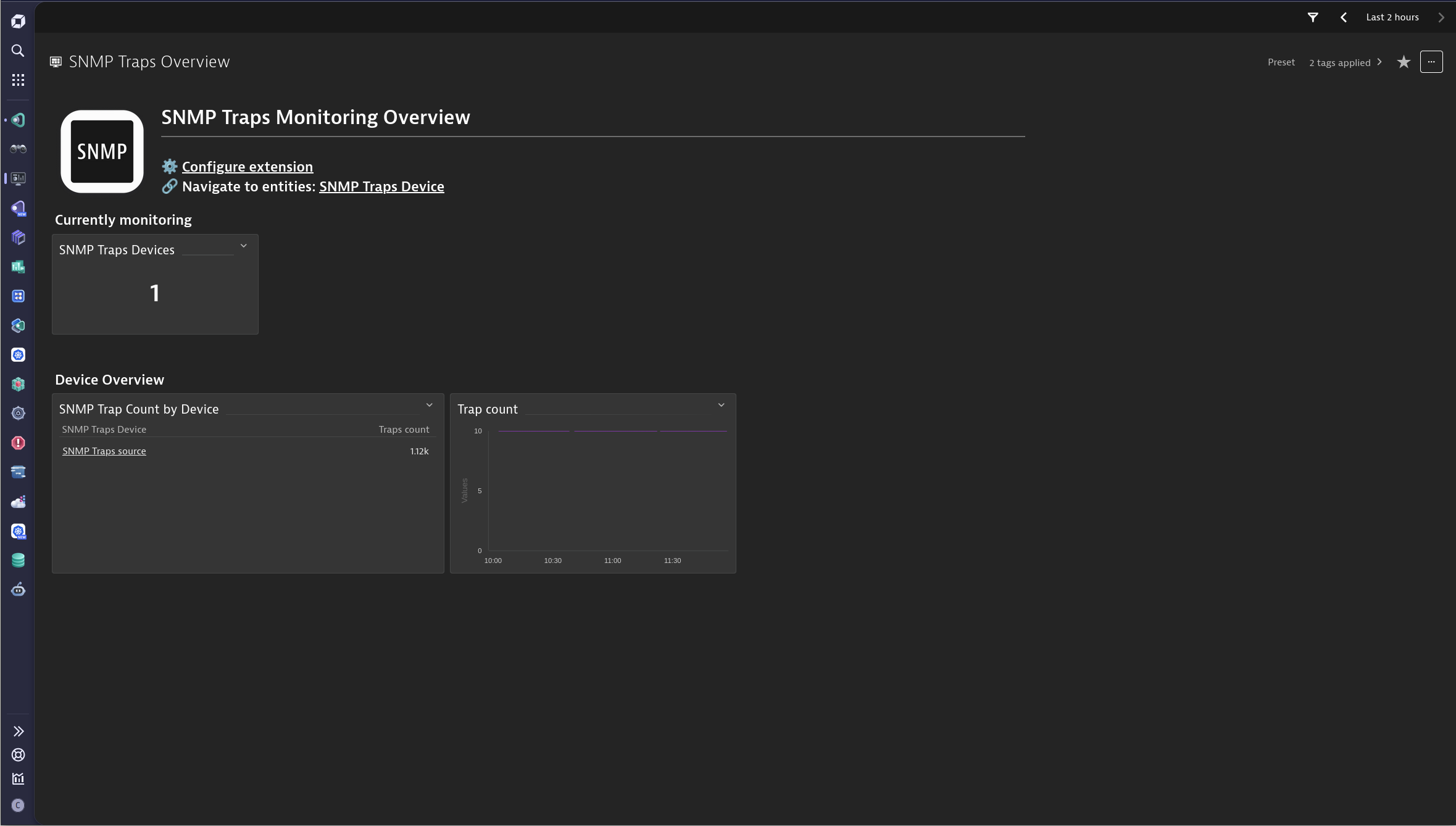

Get an overview of your monitored SNMP Trap information with the bundled Monitoring Overview Dashboard.SNMP Traps can be viewed as logs, and can be used with the powerful Dynatrace Query Language (DQL).
  • Product information
  • Release notes

Overview

SNMP traps can be used to gain more details about the health state of your network devices. By adding event-based data to all the metrics reported in combination with dedicated SNMP extensions, you are able to diagnose the performance and availability issues even better.

Use cases

  • Track number of traps reported by their types, so that you can enable alerting for issues such as port flapping
  • Review individual events reported by the SNMP devices, so that you have more details explaining metric anomalies
  • Unified visibility for metrics and traps

Get started

Simply enable the extension and configure your device, so that SNMP traps can reach the Dynatrace SNMP listener.

Details

This extension package contains:

  • Topology for SNMP Trap Devices that is derived from the IP address of the agent sending the traps.
  • A dashboard offering a monitoring overview for SNMP Traps that are received by the extension.
  • A Unified Analysis page for SNMP Trap Devices.
  • Log ingestion for SNMP Traps.
    • SNMP Traps are received immediately and ingested as logs. This can be turned on or off by toggling the Events feature set in the monitoring configuration.

Compatibility information

  • SNMPv1, SNMPv2(c) and SNMPv3 support
  • No event forwarding

License Consumption

This extension collects a count of SNMP traps every minute. Once data is produced, this is ingested as metric datapoints and subject to license consumption. Whether you are on a Classic or DPS license model, the measurement unit for metric ingestion is based on metric datapoints.

To estimate the amount of metric datapoints produced by your extension configuration, use the following list which gives you a number of metrics per feature set and a multiplier value depending on which entity the metric is split by. Add all of these up and you will have the number of datapoints produced every minute.

  • Events 1 x SNMP Traps Devices

Assuming there is 1 SNMP Trap Device being monitored (1 metric x 1 SNMP Trap Device), it will ingest:

  • 1 x 60 = 60 metric datapoints per hour
  • 1 x 60 x 24 = 1,440 metric data points per day
  • 1 x 60 x 24 x 365 = 525,600 metric data points per day

This extension also ingests trap events as logs. To calculate consumption, refer to the documentation depending on your licensing:

  • (DPS) Log Management and Analytics
  • DDUs for Log Management and Analytics
  • DDUs for Log Monitoring Classic

Troubleshooting

  • To troubleshoot this extension, use the guide in the Dynatrace Documentation.

  • Further information on configuring an SNMP trap extension can be found page.

Dynatrace
DocumentationMore Information
By Dynatrace
Dynatrace support center
Subscribe to new releases
Copy to clipboard

Extension content

Content typeNumber of items included
screen logs cards
1
screen chart groups
1
generic relationship
1
dashboards
1
screen layout
1
metric metadata
1
generic type
1

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included
Metric nameMetric keyDescriptionUnit
Traps countcom.dynatrace.extension.snmp-traps-generic.traps.countNumber of traps received.Count

Related to SNMP Traps

F5 BIG-IP logo

F5 BIG-IP

Gain insights into the performance of your F5 BIG-IP LTM and DNS solutions.

Generic Cisco Device logo

Generic Cisco Device

Monitor Cisco devices using SNMP to feed Dynatrace with metrics and alerts.

Generic network device logo

Generic network device

Gain insights into the performance of your network devices.

Juniper Networks (SNMP) logo

Juniper Networks (SNMP)

Gain insights into the performance of your Juniper networking solutions.

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.
ReleaseDate

Full version history

  • Trap data will be automatically displayed on generic network device entities

Full version history

v1.2.4

  • add a placeholder for injections into the UA screen
  • fix the name of the grouping entity
  • (min AG version: 251, min cluster version: 256)

Full version history

  • added a new dashboard (min AG version: 251, min cluster version: 254)

Full version history

  • new logs section on UA screen which presents the details of the traps received from the network device
  • use standard dt.ip_addresses attribute for ip address, that would allow us to create better relationships later on.

Full version history

  • SNMP Traps reported as log events can be triggered by selecting "Events" feature set during extension activation
  • SNMP Trap statistics (count metric) are reported by default, regardless of feature sets selected
  • added topology definition
  • added dedicated Unified Analysis screen

Full version history

No release notes
