Microsoft SQL Server (local)

Microsoft SQL Server (local)

Improve the health and performance monitoring of your Microsoft SQL Servers.

Extension

Product information
Release notes

Overview

Microsoft SQL Server database monitoring is based on a local monitoring approach implemented as a Dynatrace OneAgent extension. The extension uses WMI queries to collect key performance and health metrics from the SQL Server instance running on the host, extending your visibility.

Use cases

Understand the resource impact that your applications have on your database.
Understand the impact of resource shortages, locks or other database issues have on your application by observing the database server itself.
Track health and performance of the MS SQL servers.
Speed up the application problem diagnosis, where it’s caused by the database.

Get started

Activation

Make sure OneAgent is installed and running on the SQL Server host.
Make sure that log monitoring is enabled to be able to troubleshoot the monitoring.
Activate the extension from the Hub.

Compatibility information

Supported versions of SQL Server:

Any version of SQL Server with active extended support by Microsoft is supported by this extension. Please refer to the official Microsoft documentation about lifecycle dates for SQL Server.

Supported types of SQL Server:

SQL Server on Windows (editions: Enterprise, Standard, Developer)

Warnings:

If you have several instances on the same host, this extension could cause additional CPU utilization. For now, please use the Remote SQL Server extension in such scenarios.
Versions 1.1+ of the extension and later are incompatible with the verson 1.0 or the ones released earlier.

Subscribe to new releases

Copy to clipboard

Extension content

Content typeNumber of items included

screen injections

1

screen properties

1

generic relationship

1

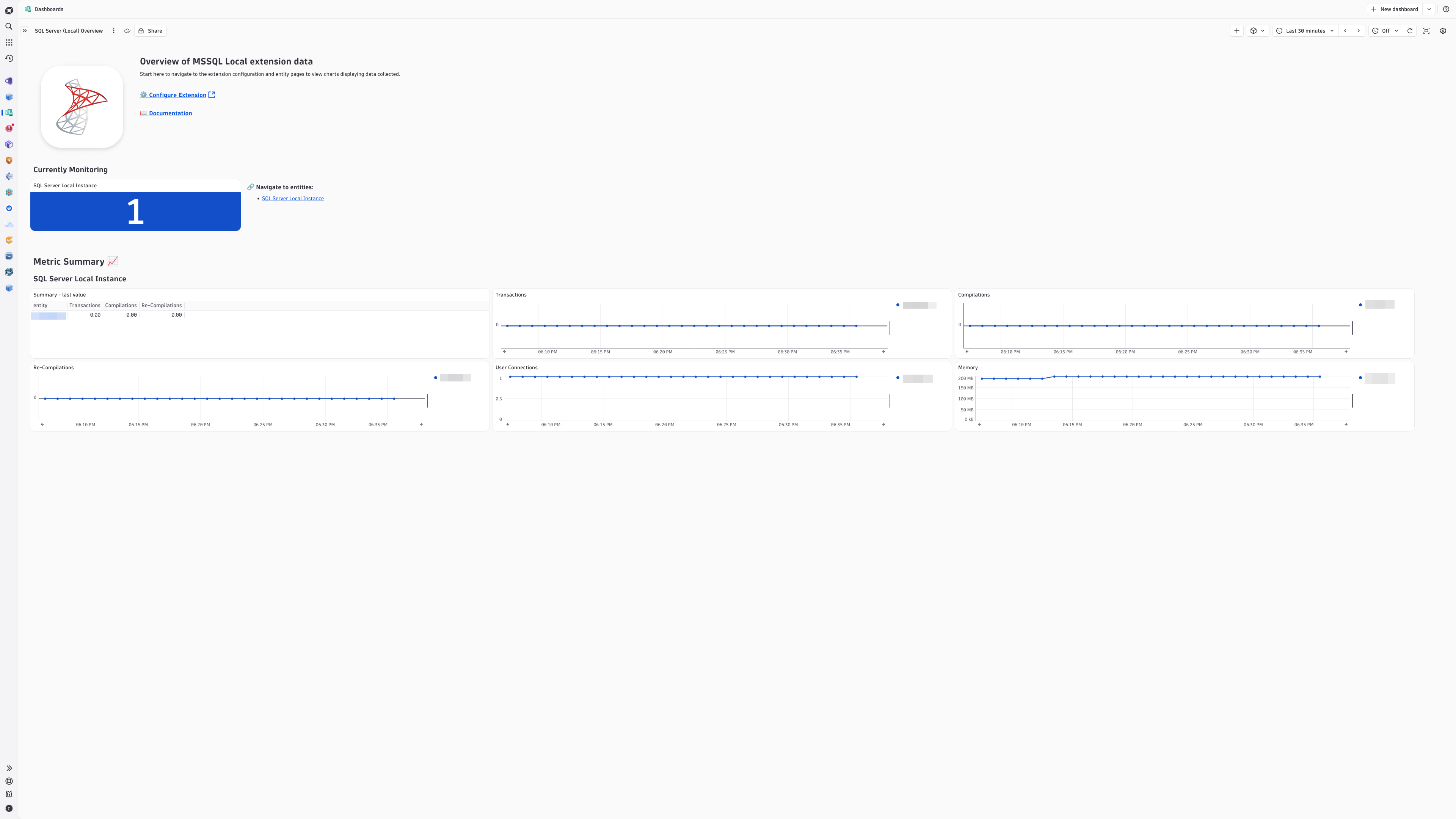

dashboards

1

screen actions

2

screen chart groups

6

screen layout

1

metric metadata

18

list screen layout

1

generic type

1

screen entities lists

3

Feature sets

Below is a complete list of the feature sets provided in this version. To ensure a good fit for your needs, individual feature sets can be activated and deactivated by your administrator during configuration.

Feature setsNumber of metrics included

Metric name	Metric key	Description	Unit
Processes blocked	sql-server.local.general.processesBlocked	Number of currently blocked processes	Count
Transactions	sql-server.local.general.transactions	Number of transaction enlistments (local, dtc, and bound)	Count
User connections	sql-server.local.general.userConnections	Number of users currently connected to SQL Server	Count

Metric name	Metric key	Description	Unit
Connection memory	sql-server.local.memory.connection	Total amount of dynamic memory the server is using for maintaining connections	KiloByte
Memory grants outstanding	sql-server.local.memory.grantsOutstanding	Number of processes that have successfully acquired a workspace memory grant	Count
Memory grants pending	sql-server.local.memory.grantsPending	Number of processes waiting for a workspace memory grant	Count
Target server memory	sql-server.local.memory.target	Amount of memory that can be consumed by memory manager	KiloByte
Total server memory	sql-server.local.memory.total	Amount of memory the server has committed using the memory manager	KiloByte

Metric name	Metric key	Description	Unit
Page splits	sql-server.local.accessMethods.pageSplits.count	Number of page splits that occur as a result of overflowing index pages	PerSecond

Metric name	Metric key	Description	Unit
Buffer cache hit	sql-server.local.buffers.cacheHitRatio	Percentage of pages found in the buffer cache without having to read from disk	Percent
Checkpoint pages	sql-server.local.buffers.checkpointPages.count	Number of pages flushed to disk by a checkpoint or other operations that require all dirty pages to be flushed	Count
Page life expectancy	sql-server.local.buffers.pageLifeExpectancy	Number of seconds a page will stay in the buffer pool without references	Second

Metric name	Metric key	Description	Unit
Latch waits	sql-server.local.latches.waits.count	Number of latch requests that could not be granted immediately	Count

Metric name	Metric key	Description	Unit
Batch requests	sql-server.local.sql.batchRequests.count	Number of Transact-SQL command batches received	Count
SQL compilations	sql-server.local.sql.compilations.count	Number of SQL statement compilations	Count
SQL re-compilations	sql-server.local.sql.recompilations.count	Number of SQL statement re-compilations	Count

Metric name	Metric key	Description	Unit
Lock waits	sql-server.local.locks.waits.count	Number of lock requests that required the caller to wait	Count
Deadlocks	sql-server.local.locks.deadlocks.count	Number of lock requests that resulted in a deadlock	Count

Customer story Photobox

“With such a diverse technology stack, not many solutions were able to meet all our needs, but Dynatrace was the exception.”

Alex Hibbitt

Engineering Director, SRE & Fulfillment

See their story

Related to Microsoft SQL Server (local)

OneAgent

The simplest way to capture all observation signals automatically and in context

Full version history

To have more information on how to install the downloaded package, please follow the instructions on this page.

ReleaseDate

Full version history

Improvements:

Host name for each SQL Server instance entity is now properly resolved. Instead of SQL Server (HOST-9A55C8D98F33TOD) the entity name is resolved to true host name: SQL Server (my-host)

Full version history

Bug fixes:

Instance entities now have unique names, based on the underlying HOST ID. Example: SQL Server (HOST-9A55C8D98F33TOD). Previously all entities had the same user facing name SQL Server Local (localhost).
Fix for validation errors that involve metrics with :smooth(skipfirst) in their name.
Fix for err:Exception occurred. (Invalid class): see below for added support for named instances.

Improvements:

Link to parent host is added on Instance screen.
Link to parent host is added on properties card of the Instance under the "Host" attribute.
Local address of the detected connection is added on properties card under the "Device" attribute.
Instance dimension removed from all metrics, because it was never reported.
Dashboard was redisigned to better fit on smaller screens.

Features:

Link to the detected SQL Server instance entity is added on Host screen under the "SQL Server Local Instances".
Support for named instances has been added.

Warning:

Extension is only proven to work with a single SQL Server instance (named or default) installed on host.

Full version history

Fixed issue with Fault retrieving dimension for key:instance err:Unknown name error.
Added compatibility with remote SQL Server extension.
All metrics had their prefix changed from sql-server. to sql-server.local. to distinguish collected metrics from those reported by remote SQL Server extension.

Full version history

Reimplementation of EF1 local WMI monitoring extension using EF2.
