To go to the Test overview page, click a test name or Steps value in the Operational summary page.
When Synthetic Classic is integrated with Dynatrace SaaS/Managed, you can drill down from synthetic tests in SaaS/Managed dashboards to the Test overview page in the Synthetic Classic Portal.

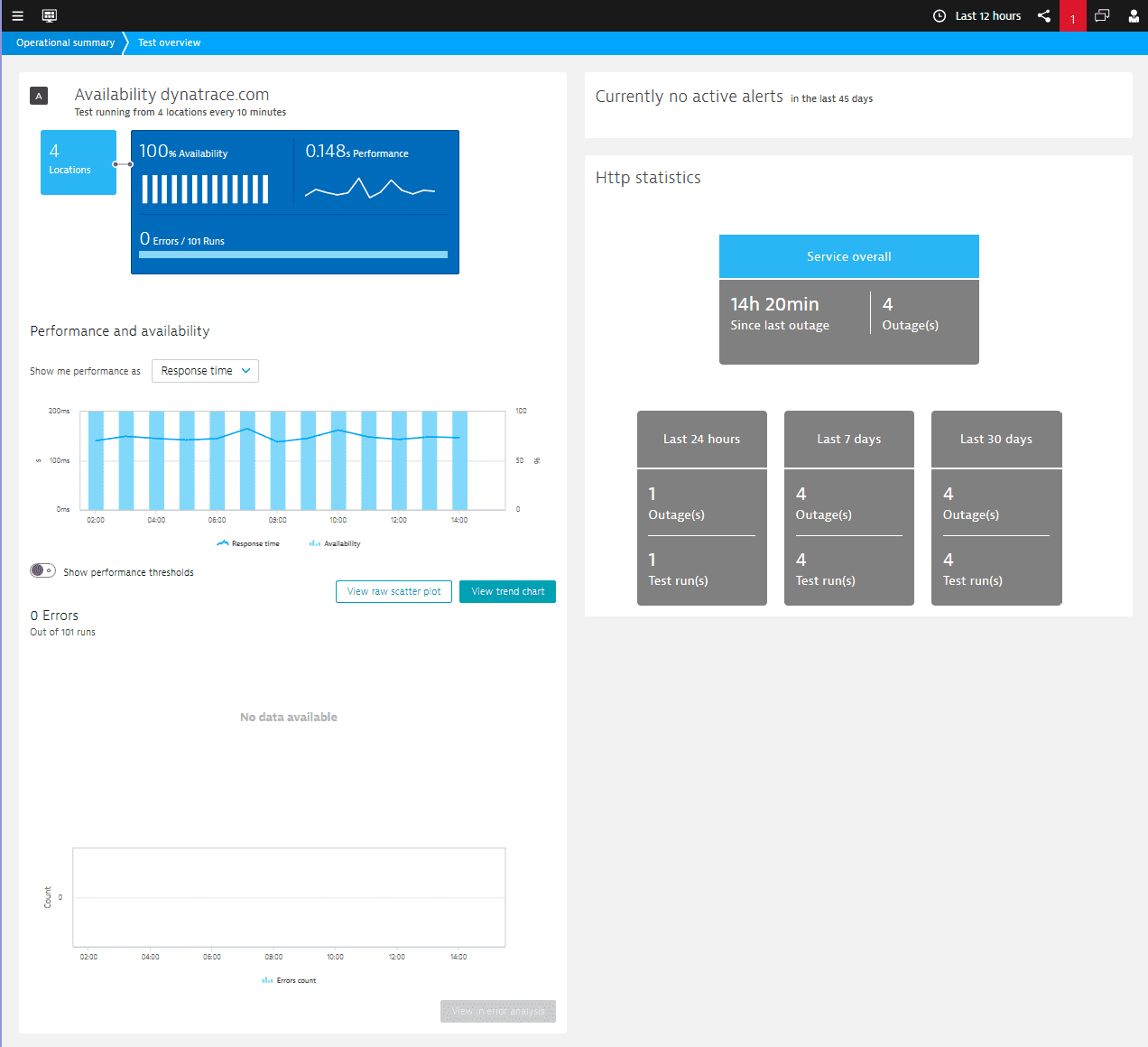

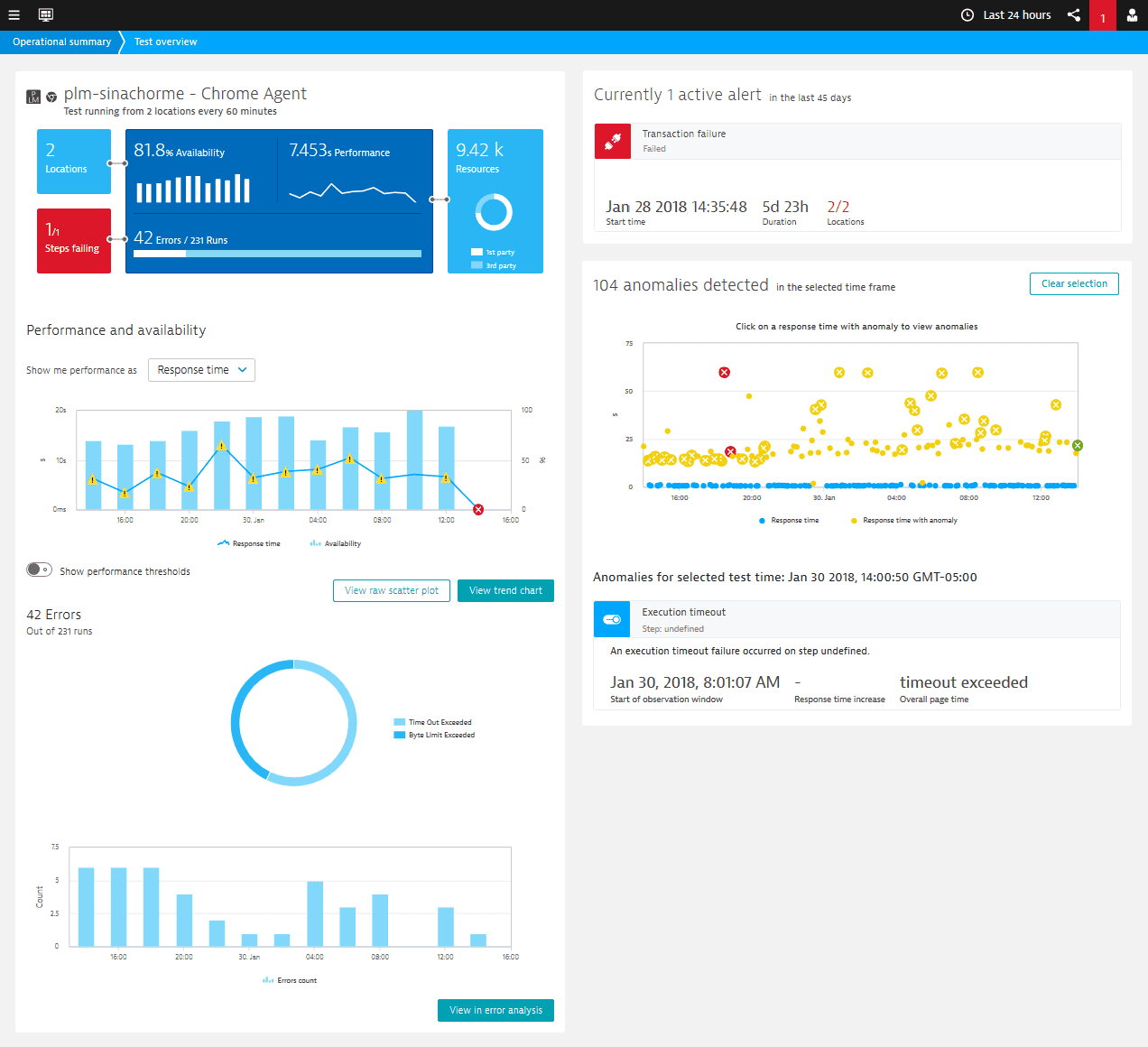

The Test overview page gives you comprehensive information at a glance for a selected test:
Performance and availability data for the test overall and for the test steps, measurement locations, and downloaded resources (objects).
Summary data for active alerts.
Identification of performance anomalies.
From this page, you can drill down through the Analysis workflow to investigate and resolve problems.
Click a tile at the top of the left pane to view data in that category. Data is displayed for the time frame selected at the top of the Portal window. You can change the time frame, selecting either a quick time frame or a custom time frame.
For each data tile, you can filter the chart and sort the table. Click an item in the legend to remove that item from the chart and filter the related list. Click a column head to sort the list in ascending or descending order.
Performance and availability
By default, the left pane displays a trend chart for Response Time and Availability. You can select to change the performance chart from Response Time to 1st Byte Time, W3C Load Time, Visually Complete, or Total Time.
Click the Show performance thresholds control to draw lines across the chart that indicate the Warning and Severe threshold values for the test.
From the trend chart, you can drill down to the Raw scatter page or Trend details page for further analysis.
If errors occurred, the circle chart below the trend chart identifies the errors. The bar chart shows the errors over time. Hover over a bar to see the error count for that date/time.
You can drill down to the Error analysis page for more details.
Click Locations to display Response Time and Availability for each measurement location the test uses.
If a test step failed, the Steps failing tile is red. Click the tile to display data for the failed step. Expand the step to view the trend chart and drill down to the Trend details chart for further analysis.
Click the Resources tile to display data for all resources (objects) downloaded by the test. Summary data is provided for first-party and third-party contributors. Click the appropriate tab to chart All resources, 1st party resources, or 3rd party resources.
In the resource list below the chart, expand a resource to view the trend chart.
Alerts triggered in the last 45 days are shown with summary information: alert type, time and duration, and number of affected locations.
Click an alert to go to the Alert details page for more information.
The Anomalies scatter chart identifies test executions that fall outside normal performance. The style of datapoint identifies provides information about the test execution.
Blue dot – Normal performance.
Yellow dot – Response time anomaly
Yellow with an X – Error
Red with an X – Failure
Hover over a datapoint to display the timestamp and response time for that test execution.
To focus on the anomalies, click Response time below the chart to hide the "normal" datapoints.
Click an anomaly datapoint to display the problem summary below the chart. The selected datapoint turns green .
Click the summary to go to the Problem analysis page to investigate the problem.
Drilldowns for data analysis
As described above, from the Test overview page you can drill down to these pages in the analysis workflow:
- Raw scatter page – From the Performance and availability trend chart
- Trend details page – From the trend chart for Performance and availability or Steps failing
- Error analysis – From the error chart
- Problem analysis page – From a problem summary below the anomalies chart
- Alert details page – From the active alerts
