This topic describes how to solve some issues with installing and upgrading the CAS.
I cannot sign on to the CAS
Start with SSO network configuration requirements to make sure your network and your NAM deployment are ready for SSO.
After the installation, I do not see the Central Analysis Server in the services list
If you installed the report server and the SQL Server on a single machine, the service name for SQL Server must be
MSSQLSERVER (the default name). If the service name used to start SQL Server is not
MSSQLSERVER, the installer will not create a service for the report server. All files will be installed, but you will not be able to start the servers from the services list.
Check the log files to see if this is the issue. In default installations, the log files are:
Open these files and search for the following strings:
SQL service MSSQLServer is not found (The specified service does not exist as an installed service. (0x424))in
SQL service (MSSQLServer) is not found (The specified service does not exist as an installed service. (424))in
To work around this issue:
In Windows, go to Administrative Tools ► Services.
Double-click SQL Server (Instance_Name) (the main SQL Server service) to see the properties.
Check the Service Name (not Display Name) for SQL Server on General tab.
"C:\Program Files\Common Files\Compuware\Watchdog\windowsjre_x64.exe"
"Central Analysis Server"
"Central Analysis Server" “Service name of the SQL Server checked in the step 3 ”
On 32-bit systems, use the
"C:\Program Files\Common Files\Compuware\Watchdog\windowsjre.exe" command.
Reboot the machine where the report server is installed to apply the changes.
After the machine restarts, check whether the Central Analysis Server service has been added and starts correctly.
Services won't start
Services might not start for any of a number of reasons. The following procedure will help you to determine whether it is one of the most frequent causes.
Select Start ► Programs ► Compuware ► Central Analysis Server ► Documentation ► Server log.
TCP port availability check.
server.log for the message “
Address already in use: JVM_Bind:*port_number*”. If you find a similar message, it means the report server cannot start because the TCP port reserved for the built-in web server is already in use by another software service process.
T ADM 06-03-16 12:45:12.274 AAS Platform 3.7.0 (build 164) T ADM 06-03-16 12:45:12.324 Central Analysis Server 5.0.0 (build 152) T ADM 06-03-16 12:45:12.324 RTM Base System 2.2.0 (build 156) T ADM 06-03-16 12:45:12.324 RTM GATE 2.2.0 (build 149) T ADM 06-03-16 12:45:12.324 ND Core Base System 5.2.0 (build 165) T ADM 06-03-16 12:45:12.324 Central Analysis Server Service Pack 5.0.1 (build 9) java.net.BindException: Address already in use: JVM_Bind:80 at org.apache.tomcat.util.net.PoolTcpEndpoint.initEndpoint(PoolTcpEndpoint.java:264) at org.apache.coyote.http11.Http11Protocol.init(Http11Protocol.java:137) at org.apache.coyote.tomcat5.CoyoteConnector.initialize(CoyoteConnector.java:1429) at org.apache.catalina.startup.Embedded.start(Embedded.java:851) at adlex.delta.tomcat.embedded.TomcatBootstrap.startServer(TomcatBootstrap.java:176) at adlex.delta.server.Admin.main(Admin.java:243) LifecycleException: Protocol handler initialization failed: java.net.BindException: Address already in use: JVM_Bind:80 at org.apache.coyote.tomcat5.CoyoteConnector.initialize(CoyoteConnector.java:1431) at org.apache.catalina.startup.Embedded.start(Embedded.java:851) at adlex.delta.tomcat.embedded.TomcatBootstrap.startServer(TomcatBootstrap.java:176) at adlex.delta.server.Admin.main(Admin.java:243) HTTP server not started.
Determine the service and terminate it.
netstat to list all of the TCP and UDP ports that are currently in use:
netstat /a /n
This command lists all the active ports and their status, for example:
Active Connections Proto Local Address Foreign Address State TCP 0.0.0.0:80 0.0.0.0:0 LISTENING TCP 0.0.0.0:135 0.0.0.0:0 LISTENING TCP 0.0.0.0:443 0.0.0.0:0 LISTENING TCP 0.0.0.0:445 0.0.0.0:0 LISTENING TCP 0.0.0.0:1049 0.0.0.0:0 LISTENING TCP 0.0.0.0:1433 0.0.0.0:0 LISTENING TCP 0.0.0.0:6942 0.0.0.0:0 LISTENING TCP 127.0.0.1:1060 0.0.0.0:0 LISTENING TCP 127.0.0.1:7578 127.0.0.1:7579 ESTABLISHED TCP 127.0.0.1:7579 127.0.0.1:7578 ESTABLISHED TCP 192.168.1.100:139 0.0.0.0:0 LISTENING UDP 0.0.0.0:445 *:* UDP 0.0.0.0:500 *:* UDP 0.0.0.0:1025 *:* UDP 0.0.0.0:1026 *:* UDP 0.0.0.0:1434 *:* UDP 0.0.0.0:1464 *:* UDP 0.0.0.0:3385 *:* UDP 0.0.0.0:3456 *:* UDP 0.0.0.0:4500 *:*
Database connectivity check.
server.log for the message “
No connection to data base”. If this message appears in the log, it means the report server could not start due to database connectivity problems.
T ADM 06-03-16 13:19:26.668 AAS Platform 3.7.0 (build 164) T ADM 06-03-16 13:19:26.688 Central Analysis Server 5.0.0 (build 152) T ADM 06-03-16 13:19:26.738 RTM Base System 2.2.0 (build 156) T ADM 06-03-16 13:19:26.738 RTM GATE 2.2.0 (build 149) T ADM 06-03-16 13:19:26.738 ND Core Base System 5.2.0 (build 165) T ADM 06-03-16 13:19:26.738 Central Analysis Server Service Pack 5.0.1 (build 9) T RPT 06-03-16 13:19:26.818 watchdog file created: c:\prj\rtm50\config\nds.sem - Interval 15 min T DB 06-03-16 13:19:27.059 JDBC_DRIVER = net.sourceforge.jtds.jdbc.Driver T DB 06-03-16 13:19:27.059 JDBC_URL = jdbc:jtds:sqlserver://localhost:1433/delta;tds=8.0; T DB 06-03-16 13:19:27.059 JDBC_USER = delta E DB 06-03-16 13:19:28.261 Cannot get connection:Network error IOException: Connection refused: connect E DB 06-03-16 13:19:59.235 Cannot get connection:Network error IOException: Connection refused: connect E DB 06-03-16 13:21:00.223 Cannot get connection:Network error IOException: Connection refused: connect T ADM 06-03-16 13:21:00.233 No connection to data base.
The error messages prior to the last one indicate the possible reason of the problem. The following table lists the most frequent causes of database connectivity problems.
Database Connectivity Troubleshooting Actions for specific messages:
Potential reason 1:
Microsoft SQL Server is down. Action: Start Microsoft SQL Server.
Potential reason 2:
Microsoft SQL Server is not configured to listen on the TCP port though it was listening during the product installation.
Action: Reconfigure Microsoft SQL Server to enable TCP connectivity.
Potential reason 3:
Microsoft SQL Server is now configured to listen on a different TCP port than it was during the installation process.
Action: Edit the
config\repository.properties file to update the TCP/IP settings. Edit the line starting with
JDBC_URL=... and enter a correct IP address of the database server and the TCP port on which it listens to queries.
Potential reason 4:
If a remote Microsoft SQL Server was used, it has changed its IP address or the configured IP address has been used by a different computer.
Action: Same as action for potential reason 3.
Microsoft SQL Server database does not exist.
You have to reinstall the product to recreate the database with correct user rights. If you have a database backup copy, you can restore it.
The report server cannot authenticate with Microsoft SQL Server.
The password of the user
delta has been changed. Reset it to the original value
How do I determine the port number for a named instance of the SQL Server?
If enabled, the default instance of the SQL Server Database Engine listens on TCP port 1433. Named instances of the database engine are configured for dynamic ports. This means they select an available port when the SQL Server service is started. You can determine your SQL Server named instance in several ways; using SQL Server Configuration Manager is one of the simplest ways.
In general, you should refer to your SQL Server named instances by name so that you always address the valid instance (the port number may change but the instance name does not). If, during installation of the report server, you are unable to use the instance name and are forced to give a port number, you can check its value:
Log in to the system either remotely (via Remote Desktop, for example) or locally.
In Windows, go to Programs ► Microsoft SQL Server <server_version> ► Configuration Tools and choose SQL Server Configuration Manager.
Select Protocols for <instance_name> and then double-click TCP/IP to inspect the instance TCP/IP settings.

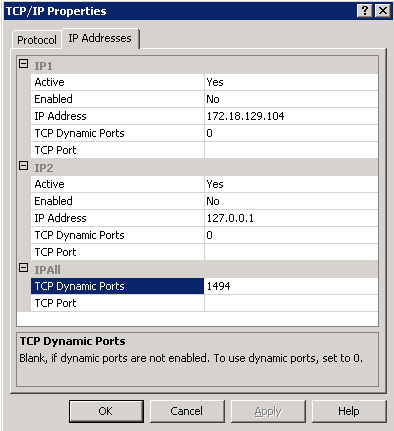

In the TCP/IP Properties dialog box, on the IP Addresses tab, determine the currently assigned port number.
If the TCP Dynamic Ports dialog box contains 0, this indicates that the Database Engine is listening on dynamic ports. The IPAll dialog contains the port number used by the SQL Server named instance you selected.
Click Cancel to close TCP/IP Properties.
You can validate port number discovery using the
Connect to the Database Engine with SQL Server Management Studio from a remote machine. On the machine hosting SQL Server, issue the
netstat command and inspect the Local Address and Foreign Address columns. Find a matching pair (or pairs) of addresses that represents your remote connection to the SQL Server. The Local Address column contains the port number associated with the local machine (separated by a colon from the IP address).
