Transaction Flow tab

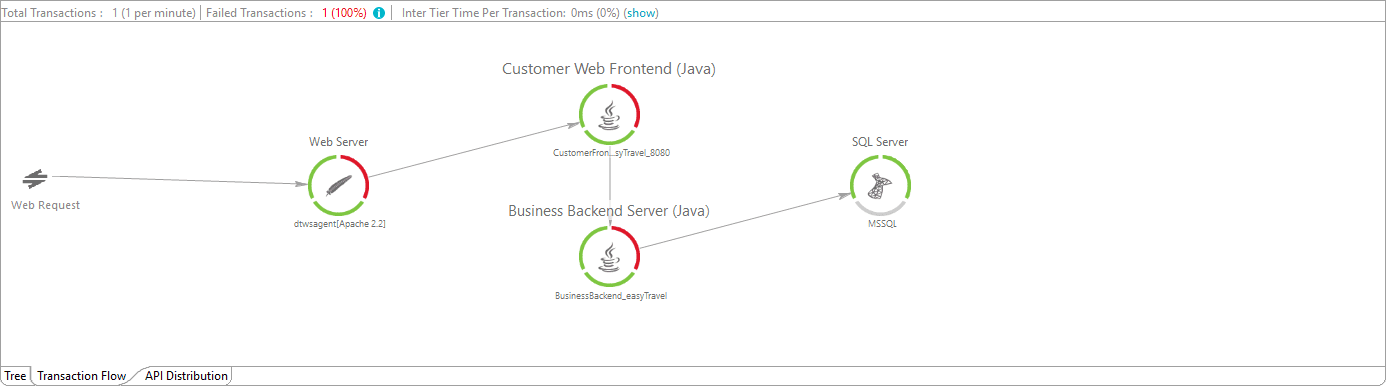

The Transaction Flow tab of the PurePath dashlet displays a diagram of the distribution of the PurePaths, selected in the PurePath table, over components or tiers of the system monitored by distinct AppMon Agent instances. The Transaction Flow Dashlet components involved in the execution of a selected PurePath are highlighted. PurePaths that span multiple components are indicated by dashed lines between the involved components. If several tiers are involved in a PurePath and if they communicate with one another directly, the communication channels are visualized by lines between communicating tiers.
