User experience - general settings

The General section of the System Profile - User Experience includes settings that affect visit and user action creation.


Setting Description
Capture the following percentage of visits. Enter a percentage of visits to be captured. For example, if you enter 10, AppMon captures only each 10th visit to your web site. Typically there is no need to change from the default 100%.
Capture all server side Select this check box to capture server-side PurePaths even when the corresponding visit is not captured.
Always inject the JavaScript Agent Select this check box if you want always inject the JavaScript Agent. The monitor signal handles visit percentages when this check box is selected.
Visit ends after user is inactive for X minutes Lets you configure the time until a visit times out. Visit-based business transactions are calculated and stored in the performance warehouse only after a visit times out.

A visit ends after 8 hours or if they contain 1000 user actions. New user actions then create a new visit.
Visit tag List of measures, used for visit tagging. See the Visit tag section below for more info.
Conversion goal List of conversion goals, used to count visits as converted. See the Conversion goal section below for more info.

Visit tag

A visit tag is a specially configured measure, which you can use to mark a certain visit. When the threshold of the measure triggers, the measure value is assigned to the visit.

The tag is set only once per visit, so once a valid tag value is determined, it does not change with the re-occurrence of the measure.

For example, if the user name is stored in a session attribute, you can use a Web Requests - Session Attribute Value measure to tag visits with the username. You can use all measures from the Business Transaction Evaluation/Filter/Grouping Values category.

You can configure any number of visit tags, but one tag must be configured to act as the primary visit tag. It is displayed in the visit name, and in the Visit tag column of the Visits dashlet and the Visits web view. You can also find the visit using the value of this tag. Select the Is primary check box for the required visit tag. All other tags then act as additional tags and can only be viewed in the Visit details web view.

Conversion goal

A conversion goal is a criterion to count visits as converted. The following options are available:

  • Web request
  • Method invocation
  • Custom measure

Configuring conversion goals is especially useful with e-commerce business applications where the conversion rate (spectator or buyer ratio) should be calculated. For example, if your web-site calls an orderById method whenever a user orders an item, you can define a corresponding Methods - Invocation measure that identifies a conversion.

After you define at least one conversion criterion, you can use the Visits - Conversion Rate measure (which indicates the conversion rate of any of the conversion measures) and consequently, the conversion count of your visits. There is a separate conversion rate measure created for each measure that is assigned as a conversion measure that only indicates the conversion rate of this specific conversion measure. Default names of these measures are Conversion Rate for <conversion measure name>, but you can rename them as you want.

Web request

A visit counts as converted if a web request or a web service is called that matches a specified URI pattern. The pattern can be specified using one of the following modes:

  • equals: The pattern applies if the actual name is equal to the pattern text.
  • starts: The pattern applies if the actual name starts with the given pattern text.
  • ends: The pattern applies if the actual name ends with the given pattern text.
  • contains: The pattern applies if the actual name contains the given pattern text.
  • regex: Allows regular expressions. For example, ClassName[0-9]+ specifies all classes that start with ClassName followed by any number.

Method invocation

A visit counts as converted if the selected method is invoked somewhere in the monitored infrastructure by any actions of a visit. Select the required method using the Class Browser.


A visit counts as converted, if specified measure is triggered.

User Experience Index

Use this section to customize rules that calculate the user experience index of visits.

Setting Description
Visit is tolerating if number of satisfied actions is less than If the percentage of satisfied actions in the visit falls below this threshold, then the visit is marked as Tolerating. The default is 50%.
Visit is frustrated if number of frustrated actions exceeds If the percentage of frustrated actions in the visit meets or exceeds this threshold, then the visit is marked as Frustrated. The default is 50%.

Action groups

Action groups are a good way to define individual performance baselines for different types of user actions. A new system profile contains six predefined action groups, one for every action type. You can also define custom action groups, such as one that groups all search actions into a custom group defined by a specific threshold. Every user action is assigned to one group by evaluating the action group list from top to bottom.

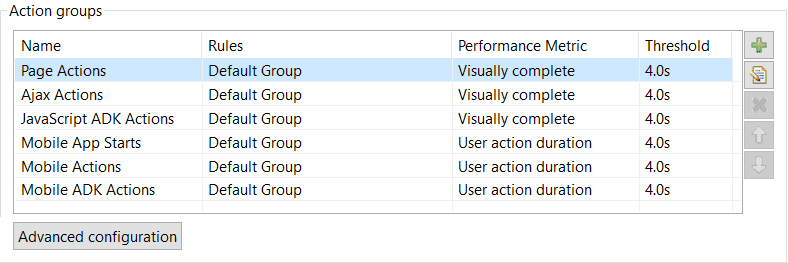

Predefined action groups with individually configurable performance baselines
Predefined action groups with individually configurable performance baselines

Action group configuration

Configure action groups by flexible criteria and set a specific baseline for each. You can customize any of the predefined action group types (Page, Ajax, JavaScript ADK, Mobile App, Mobile, and Mobile ADK) and any action groups you created. Group actions are:

  • Based on their name.
  • Starting or ending on a specific page by title or URL.
  • Based on their XMLHttpRequest URL (Ajax Action groups only)

The baseline is the key performance metric used to determine Apdex rating to apply to each action in the each action group. You can set the performance metric for custom action group, or change the performance metric used for any predefined action group.

To do this, select the action group to be configured and click the Edit button in the Action Group button bar. Then in the Action group configuration dialog box, select the desired metric from the list. Only the performance metrics applicable to the action group type appear in the list.

The performance metric displays in the user actions data in both the client and AppMon Web.

As shown in the following images:

  • Actions for the Ajax action type can be grouped by XMLHttpRequest URL.
  • Page, Ajax and JavaScript ADK action groups can be further filtered by channel. This allows these action groups to only apply to either 'Web', 'Mobile' or 'Web and Mobile' actions.

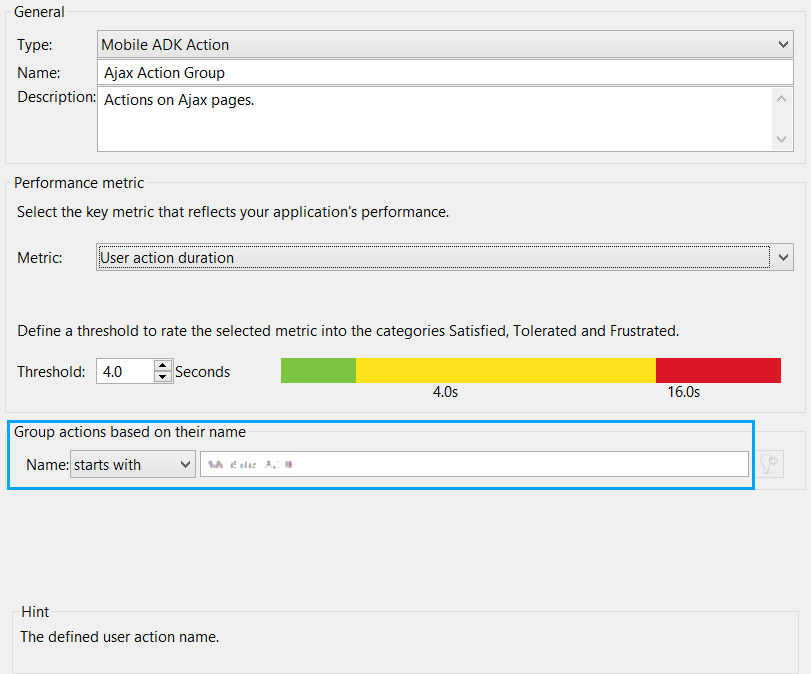

  • Actions for the mobile ADK action type can only be grouped by name.

Action group advanced configuration

You can make additional configuration changes that apply across all of the selected profile's defined action groups. See Action groups advanced configuration to learn how.

Using multiple performance baselines in action groups

Action groups and individual baselines appear in the User Action PurePath dashboard details.

On the User Actions dashboard, actions display by action group
