Upload OneAgent Extension Zip file to Dynatrace Cluster.

• Settings -> Custom Extensions -> Upload extension button. #settings/monitoredtechnologies/customextensions

Inside the zip file is a dashboard Databricks_Ganglia_Metrics.dashboard.json which can be uploaded to your Dynatrace Cluster via the import dashboard button from /ui/dashboards

Ensure the EEC is enabled on each host. This can be done globally from /ui/settings/builtin:eec.local and turning on the first two options.

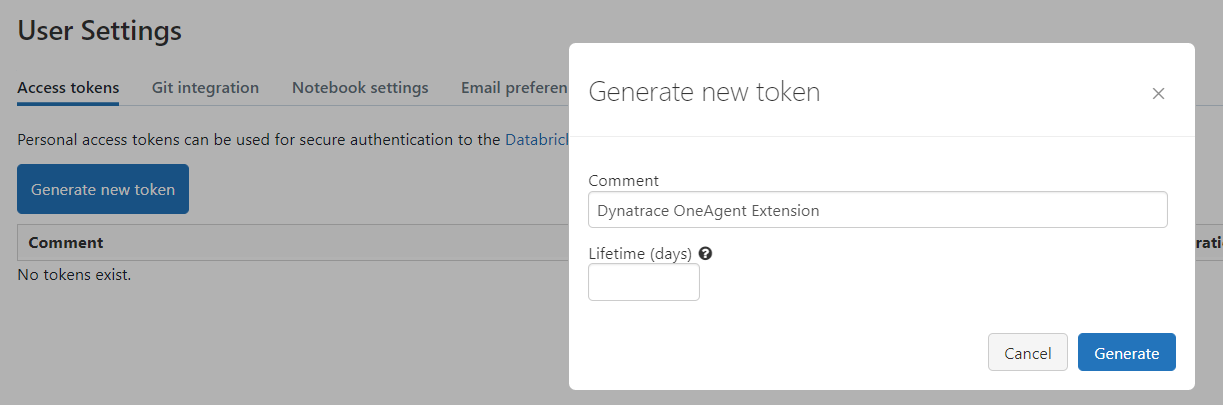

Create Databricks API Token from inside your Databricks Cluster

• User Settings -> Create API Token

Copy your Databricks URL

Copy Linux OA Installation wget command from #install/agentlinux;gf=all

Create Dynatrace API with ReadConfig Permissions

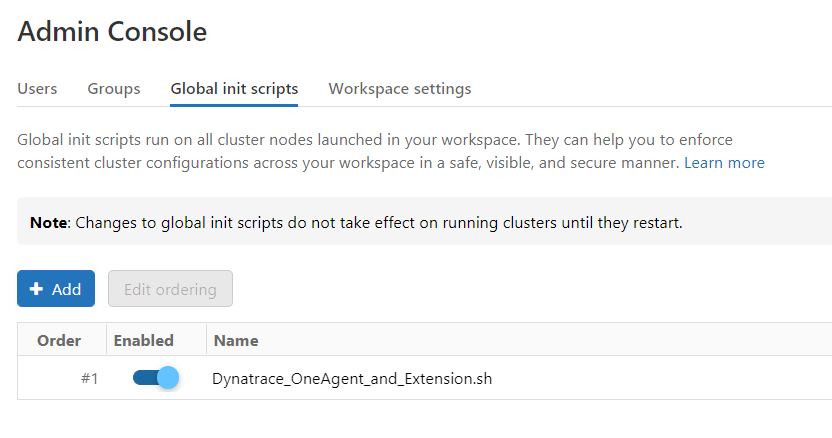

Set up Global Init Script on Databricks Cluster

• Change Dynatrace Tenant & API Token values
• Change DB_WS_URL & DB_WS_TOKEN Values (from steps above)
• NOTE: If your Databricks Cluster does not have network access to your Dynatrace Cluster or ActiveGate, the OneAgent.sh and extension zip file can be manually uploaded to you Databricks DBFS and the script below can be modified to use those locations instead of using the wget commands.

#!/usr/bin/env bash

wget  -O Dynatrace-OneAgent-Linux.sh "https://<TENANT>.live.dynatrace.com/api/v1/deployment/installer/agent/unix/default/latest?arch=x86&flavor=default" --header="Authorization: Api-Token <Installer API-TOKEN>"
/bin/sh Dynatrace-OneAgent-Linux.sh --set-infra-only=true --set-app-log-content-access=true --set-host-id-source="ip-addresses"

# token with 'ReadConfig' permissions
wget -O custom_python_databricks_ganglia.zip "https://<TENANT>.live.dynatrace.com/api/config/v1/extensions/custom.python.databricks_ganglia/binary" --header="Authorization: Api-Token <ReadConfig API-TOKEN>"
unzip custom_python_databricks_ganglia.zip -d /opt/dynatrace/oneagent/plugin_deployment/

# Add Databricks Workspace URL Environment Variable
cat <<EOF | sudo tee /etc/databricks_env
DB_WS_URL=https://adb-XXXXXXXXX.XX.azuredatabricks.net
DB_WS_TOKEN=dapiXXXXXXXXXXXXXXXXXXXXXXXXXXX
EOF

Create Dynatrace API Token with entities.read & entitie.write permissions.

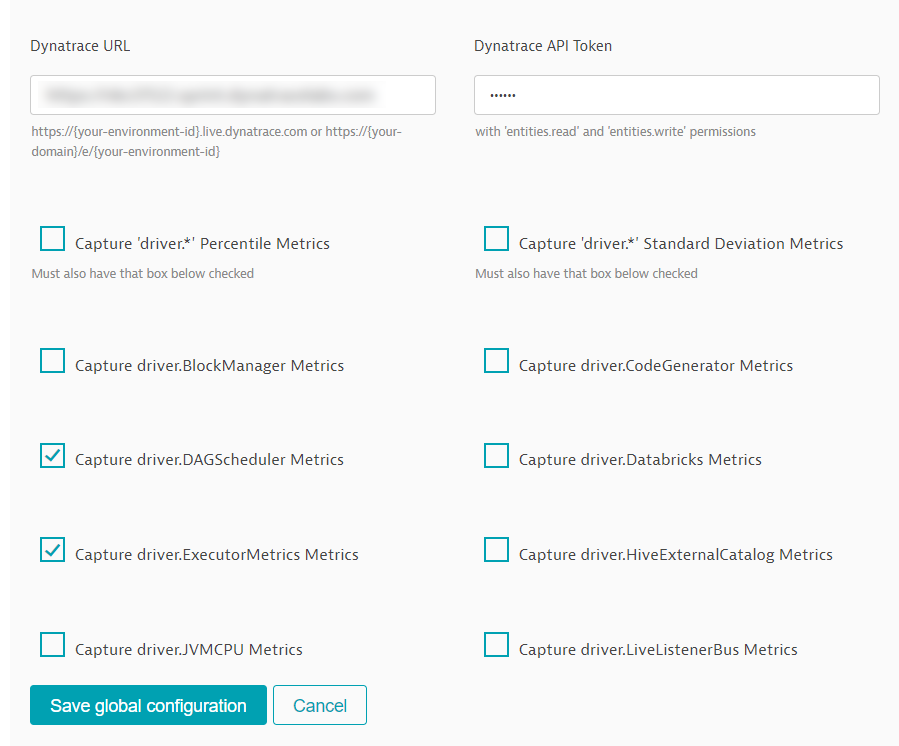

Configure OneAgent Extension in Dynatrace Cluster from #settings/monitoredtechnologies/customextension;id=custom.python.databricks_ganglia;gf=all

Restart Databricks Cluster(s)

Verify Metrics are showing up on Dashboard
